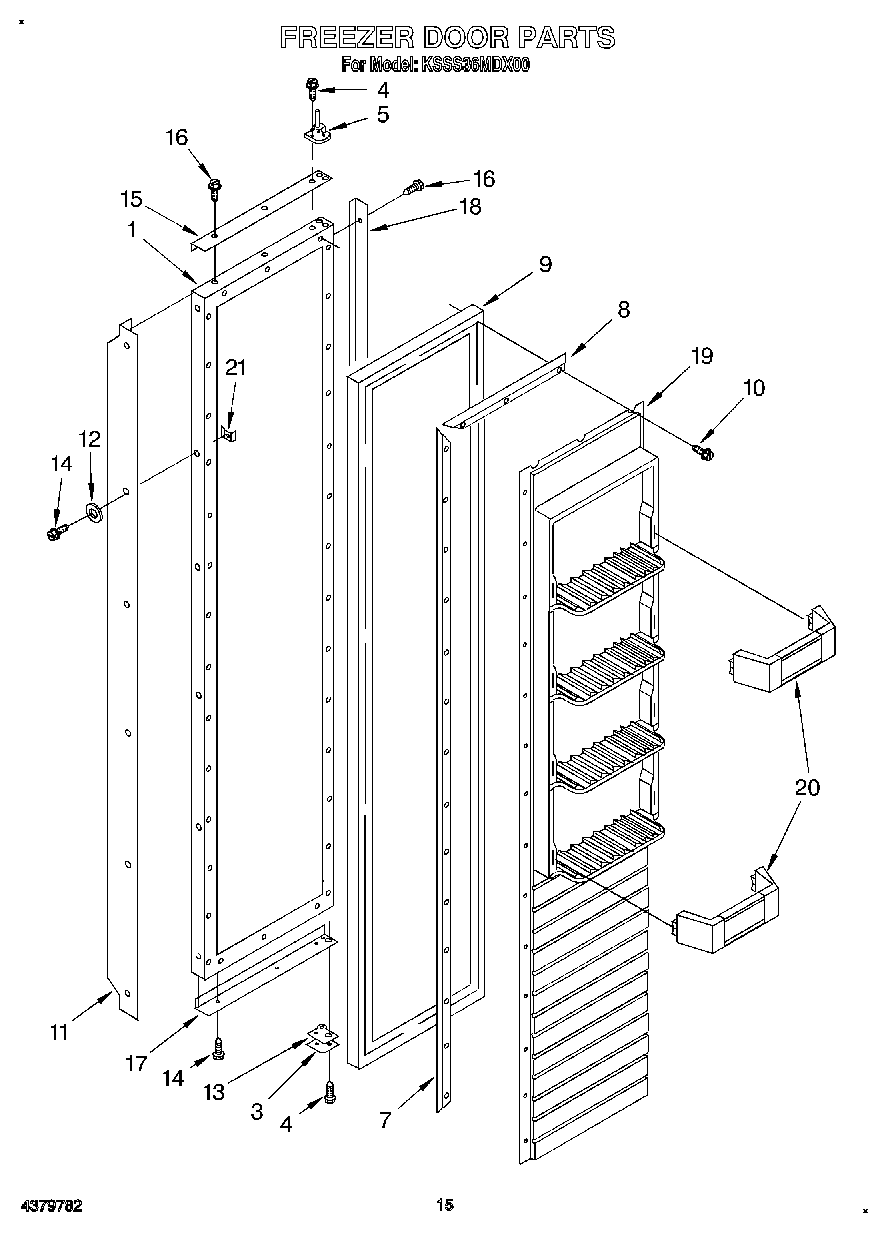

KSSS36MDX00 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	WP489069 Whirlpool Compactor Screw
11	Handle, Door
12	Washer
13	Door, Spacer Bottom
14	WP488729 Whirlpool Refrigerator Door Screw
15	Trim (Top)
16	Screw, 6-32 x 1/2
17	Trim (Bottom)
18	Trim (Side)
19	Panel, Interior Door
20	Shelf Bin (4)
21	WP939101 Whirlpool Refrigerator Plate
