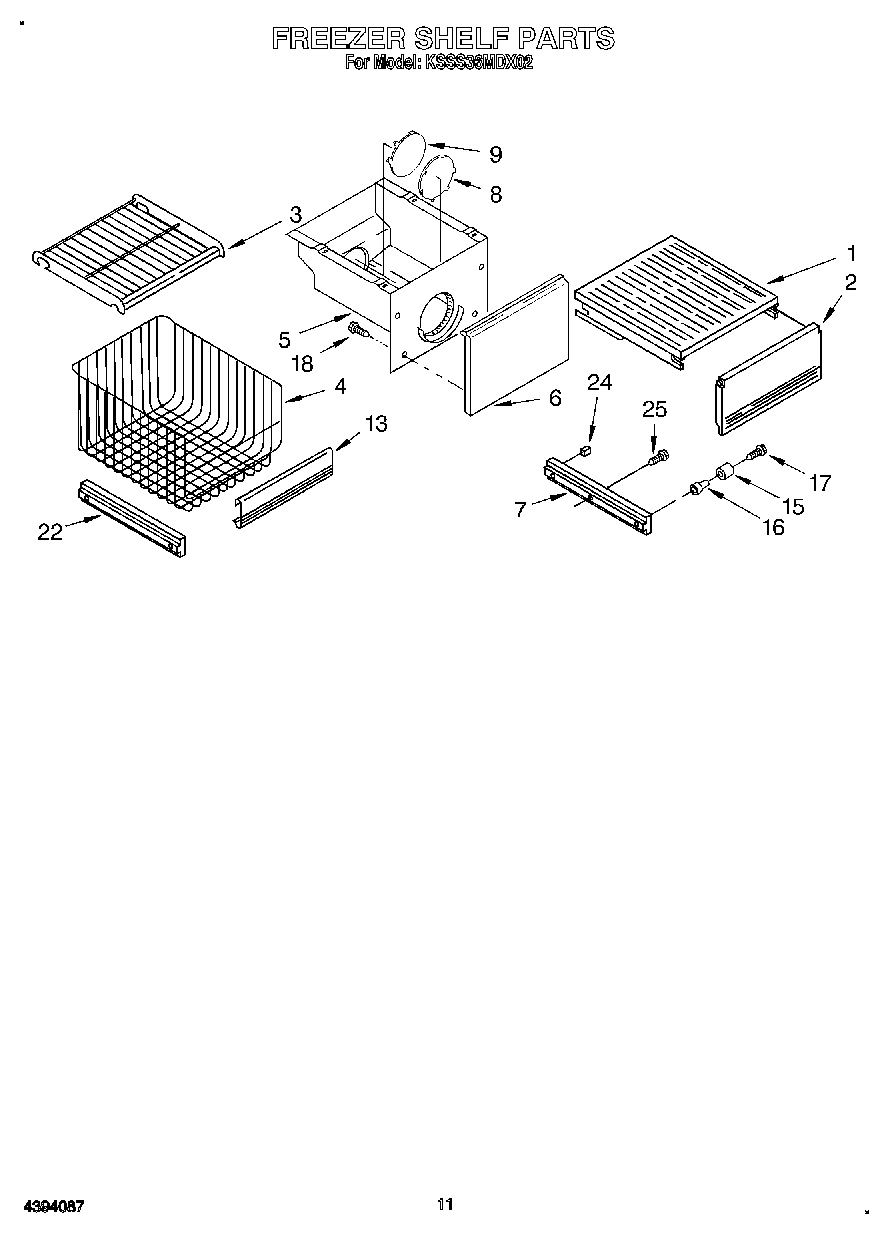

KSSS36MDX02 08 – FREEZER SHELF

KSSS36MDX02 08 – FREEZER SHELF

Written by

in

KSSS36MDX02 08 – FREEZER SHELF

Products

PositionProduct
1Solid Shelf
2Front, Ice Compartment
3Shelf, Fixed (2)
3Shelf, Fixed-Deep
4Basket (2)
5Ice Container
6Front Cover
7Slide, Container (Right Side)
72006518 Whirlpool Refrigerator Track
82003046 Whirlpool Refrigerator Plug
92003047 Whirlpool Refrigerator Plug
13Trim, Basket
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
18WP488787 Whirlpool Refrigerator Screw
22Basket Slide (Left Side)
22Basket Slide (Right Side)
24Roller Stop
25W11624204 Whirlpool Screw
