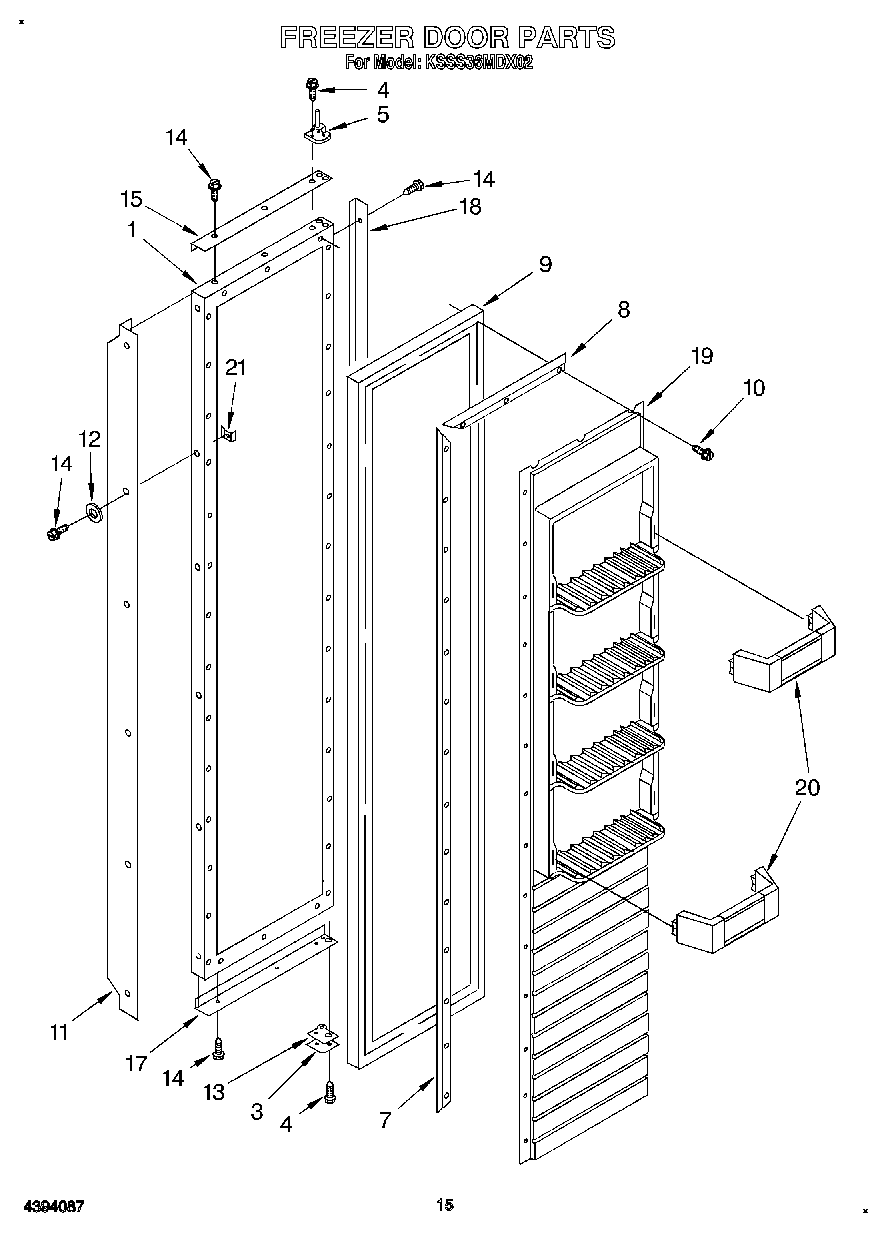

KSSS36MDX02 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	W11624204 Whirlpool Screw
11	Handle, Door
12	Washer
13	Door, Spacer Bottom
14	WP488729 Whirlpool Refrigerator Door Screw
15	Trim (Top)
17	Trim (Bottom)
18	Trim (Side)
19	Panel, Interior Door
20	Shelf Bin (4)
21	WP939101 Whirlpool Refrigerator Plate
