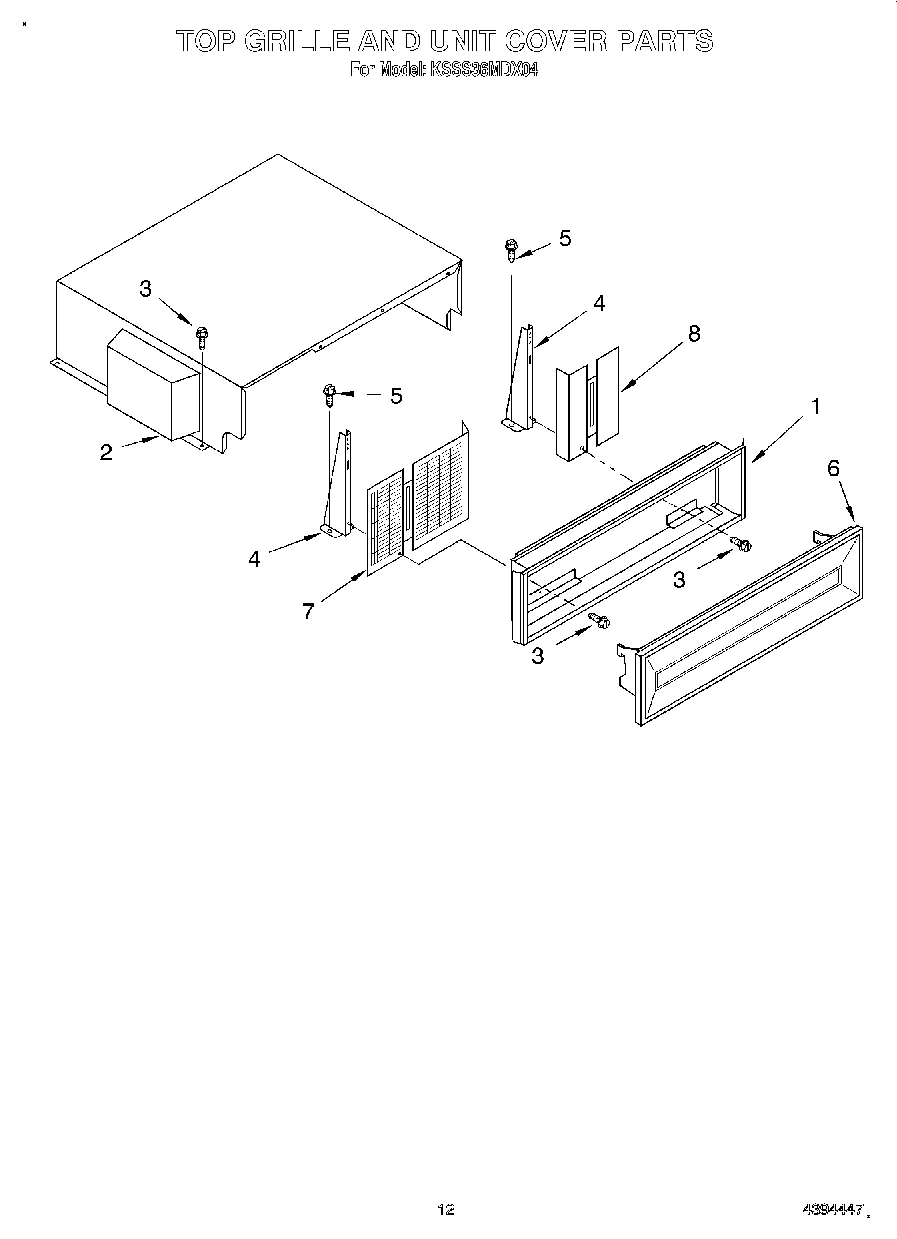

KSSS36MDX04 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Aluminum (Black Model))
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Decortive Panel Assembly (Aluminum (Black Model))
7Guard, Compressor Wiring
8Guard, Water Valve Wiring
