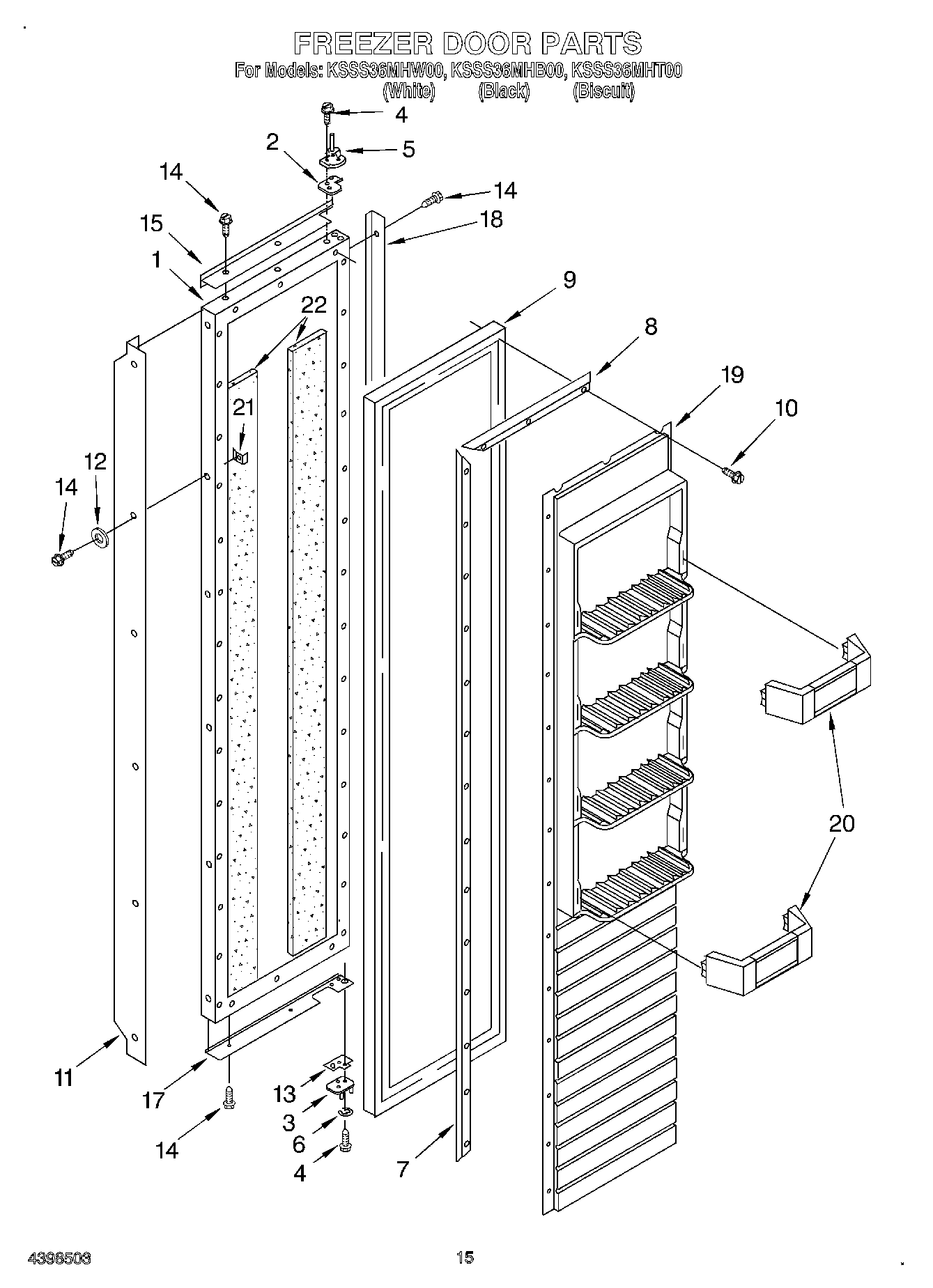

KSSS36MHB00 11 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Spacer-Hinge, Top
3	Hinge, Bottom
4	W11474472 Whirlpool Screw
5	Hinge, Top
6	Retaining Ring, Door-Closure
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	Door Gasket, Magnetic
10	W11624204 Whirlpool Screw
11	Handle, Door (Biscuit)
11	Handle, Door (Black)
11	Handle, Door (White)
12	Washer
13	Door, Spacer
14	Screw (White)
14	Screw (Biscuit)
14	Screw
15	Trim (Top) (Biscuit)
15	TRIM-DOOR, TOP (BLACK)
15	TRIM-DOOR, TOP (WHITE)
17	Trim (Bottom) (Black)
17	Trim (Bottom) (Biscuit)
17	Trim (Bottom) (White)
18	Trim (Side) (Black)
18	Trim (Side) (Biscuit)
18	Trim (Side) (White)
19	Panel, Interior Door
20	Shelf Bin (4)
21	WP939101 Whirlpool Refrigerator Plate
22	Seal
