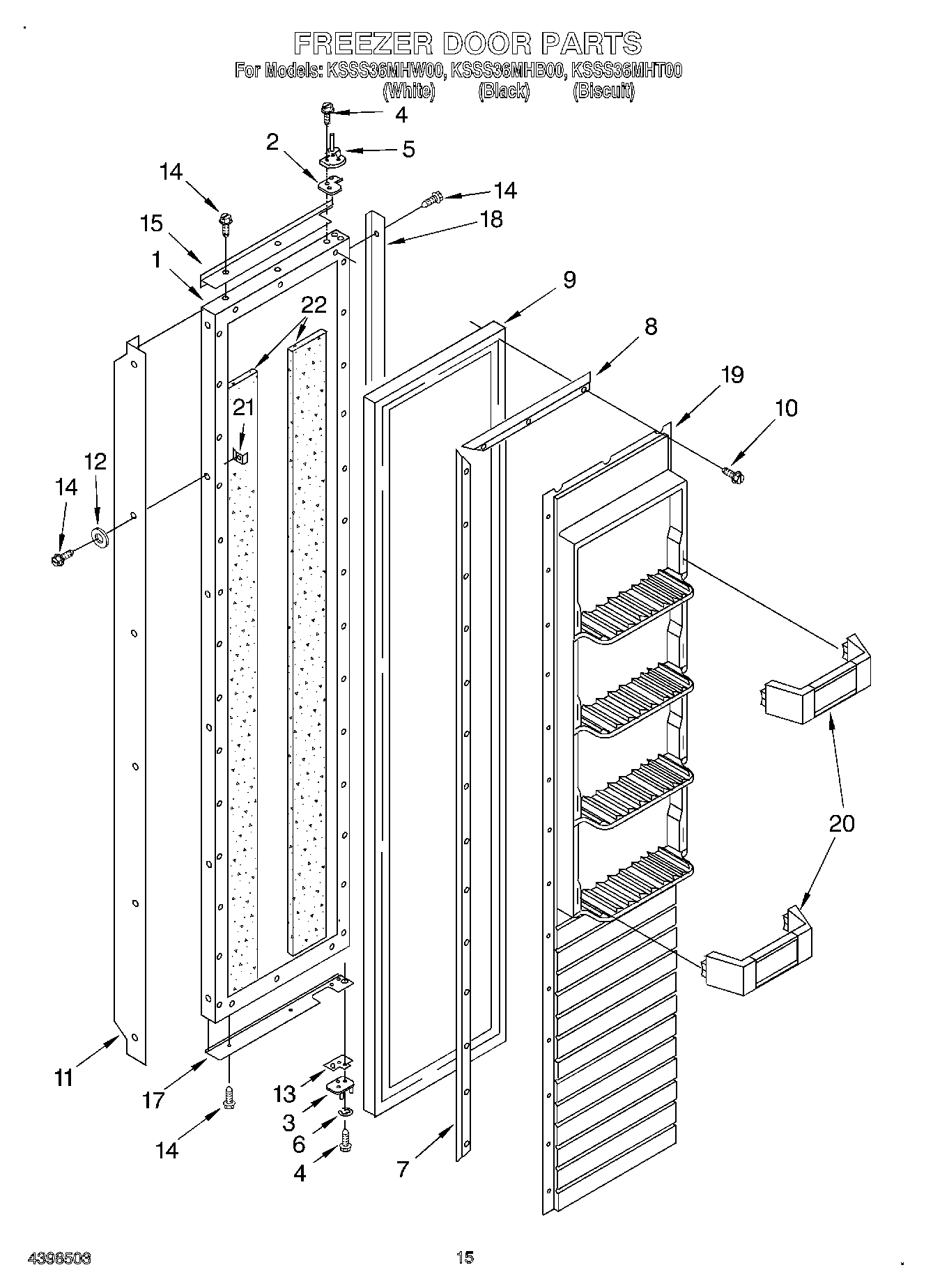

KSSS36MHT00 11 – FREEZER DOORadmin2025-04-26T12:33:55+00:00KSSS36MHT00 11 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) |
| 2 | Spacer-Hinge, Top |
| 3 | Hinge, Bottom |
| 4 | W11474472 Whirlpool Screw |
| 5 | Hinge, Top |
| 6 | Retaining Ring, Door-Closure |
| 7 | Gasket Retainer, Side (2) |
| 8 | Gasket Retainer, Top & Bottom |
| 9 | Door Gasket, Magnetic |
| 10 | W11624204 Whirlpool Screw |
| 11 | Handle, Door (Biscuit) |
| 11 | Handle, Door (Black) |
| 11 | Handle, Door (White) |
| 12 | Washer |
| 13 | Door, Spacer |
| 14 | Screw (White) |
| 14 | Screw (Biscuit) |
| 14 | Screw |
| 15 | Trim (Top) (Biscuit) |
| 15 | TRIM-DOOR, TOP (BLACK) |
| 15 | TRIM-DOOR, TOP (WHITE) |
| 17 | Trim (Bottom) (Black) |
| 17 | Trim (Bottom) (Biscuit) |
| 17 | Trim (Bottom) (White) |
| 18 | Trim (Side) (Black) |
| 18 | Trim (Side) (Biscuit) |
| 18 | Trim (Side) (White) |
| 19 | Panel, Interior Door |
| 20 | Shelf Bin (4) |
| 21 | WP939101 Whirlpool Refrigerator Plate |
| 22 | Seal |
