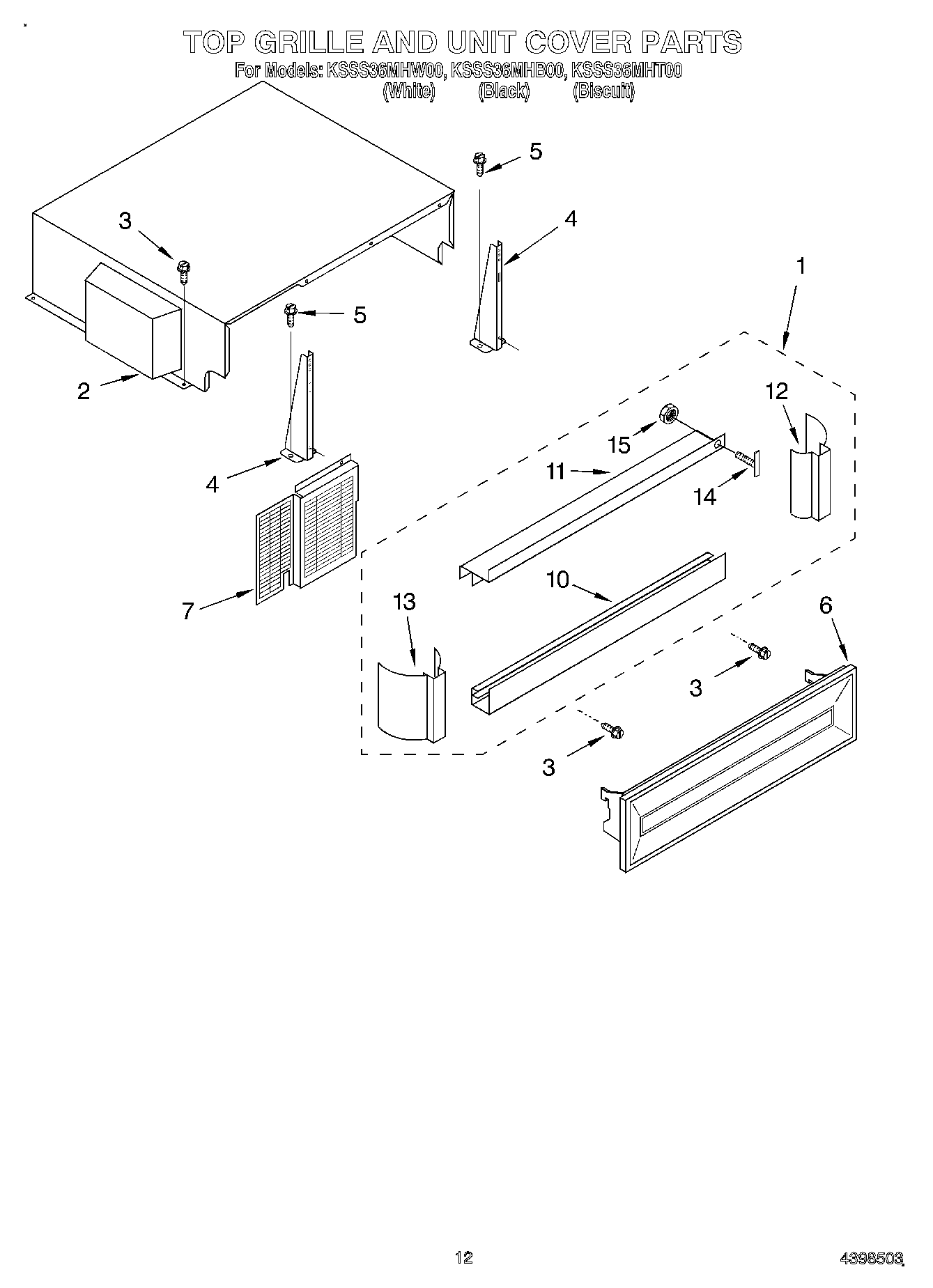

KSSS36MHW00 09 – TOP GRILLE AND UNIT COVERadmin2025-04-26T12:34:16+00:00KSSS36MHW00 09 – TOP GRILLE AND UNIT COVER
Products
| Position | Product |
|---|
| 1 | Top Grille Assembly (Biscuit) |
| 1 | Top Grille Assembly (Black) |
| 1 | Top Grille Assembly (White) |
| 2 | Cover, Unit |
| 3 | W11624204 Whirlpool Screw |
| 4 | Grille, Bracket |
| 5 | WP8204624 Whirlpool Bolt |
| 6 | Decortive Panel Assembly (White) |
| 6 | Decortive Panel Assembly (Black) |
| 6 | Decortive Panel Assembly (Biscuit) |
| 7 | Guard, Compressor Wiring |
| 10 | Trim, Grille Bottom (White) |
| 10 | Trim, Grille Bottom (Black) |
| 10 | Trim, Grille Bottom (Biscuit) |
| 11 | Trim, Grille Top (White) |
| 11 | Trim, Grille Top (Biscuit) |
| 11 | Trim, Grille Top (Black) |
| 12 | Trim, Grille Right Side (Black) |
| 12 | Trim, Grille Right Side (Biscuit) |
| 12 | Trim, Grille Right Side (White) |
| 13 | Trim, Grille Left Side (Biscuit) |
| 13 | Trim, Grille Left Side (White) |
| 13 | Trim, Grille Left Side (Black) |
| 14 | 2003347 Whirlpool Screw |
| 15 | WP488130 Whirlpool Air Conditioner Nut |
