KSSS36MHW00 11 – FREEZER DOOR

KSSS36MHW00 11 – FREEZER DOOR

Written by

in

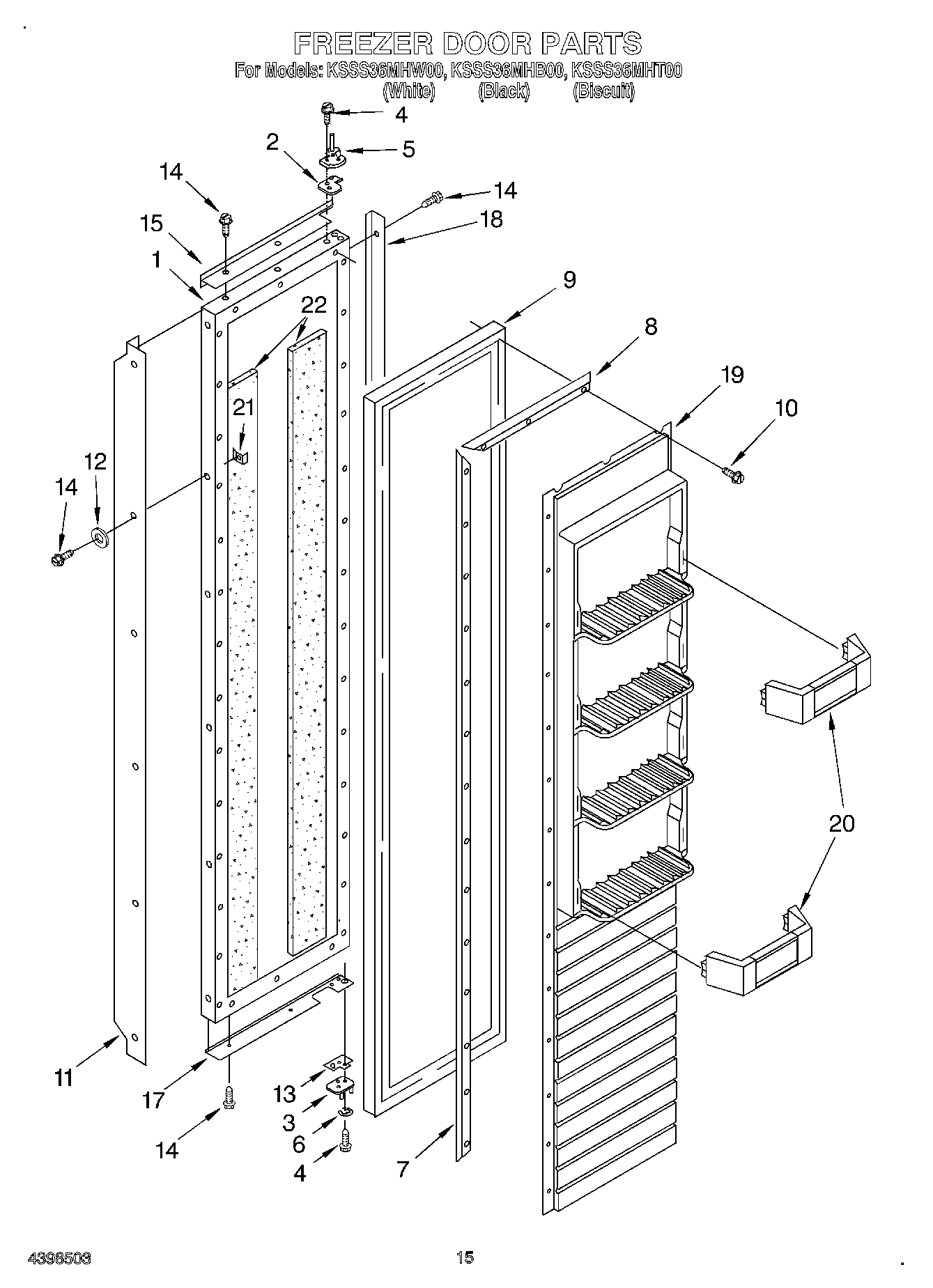

KSSS36MHW00 11 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Spacer-Hinge, Top
3Hinge, Bottom
4W11474472 Whirlpool Screw
5Hinge, Top
6Retaining Ring, Door-Closure
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
9Door Gasket, Magnetic
10W11624204 Whirlpool Screw
11Handle, Door (Biscuit)
11Handle, Door (Black)
11Handle, Door (White)
12Washer
13Door, Spacer
14Screw (White)
14Screw (Biscuit)
14Screw
15Trim (Top) (Biscuit)
15TRIM-DOOR, TOP (BLACK)
15TRIM-DOOR, TOP (WHITE)
17Trim (Bottom) (Black)
17Trim (Bottom) (Biscuit)
17Trim (Bottom) (White)
18Trim (Side) (Black)
18Trim (Side) (Biscuit)
18Trim (Side) (White)
19Panel, Interior Door
20Shelf Bin (4)
21WP939101 Whirlpool Refrigerator Plate
22Seal
