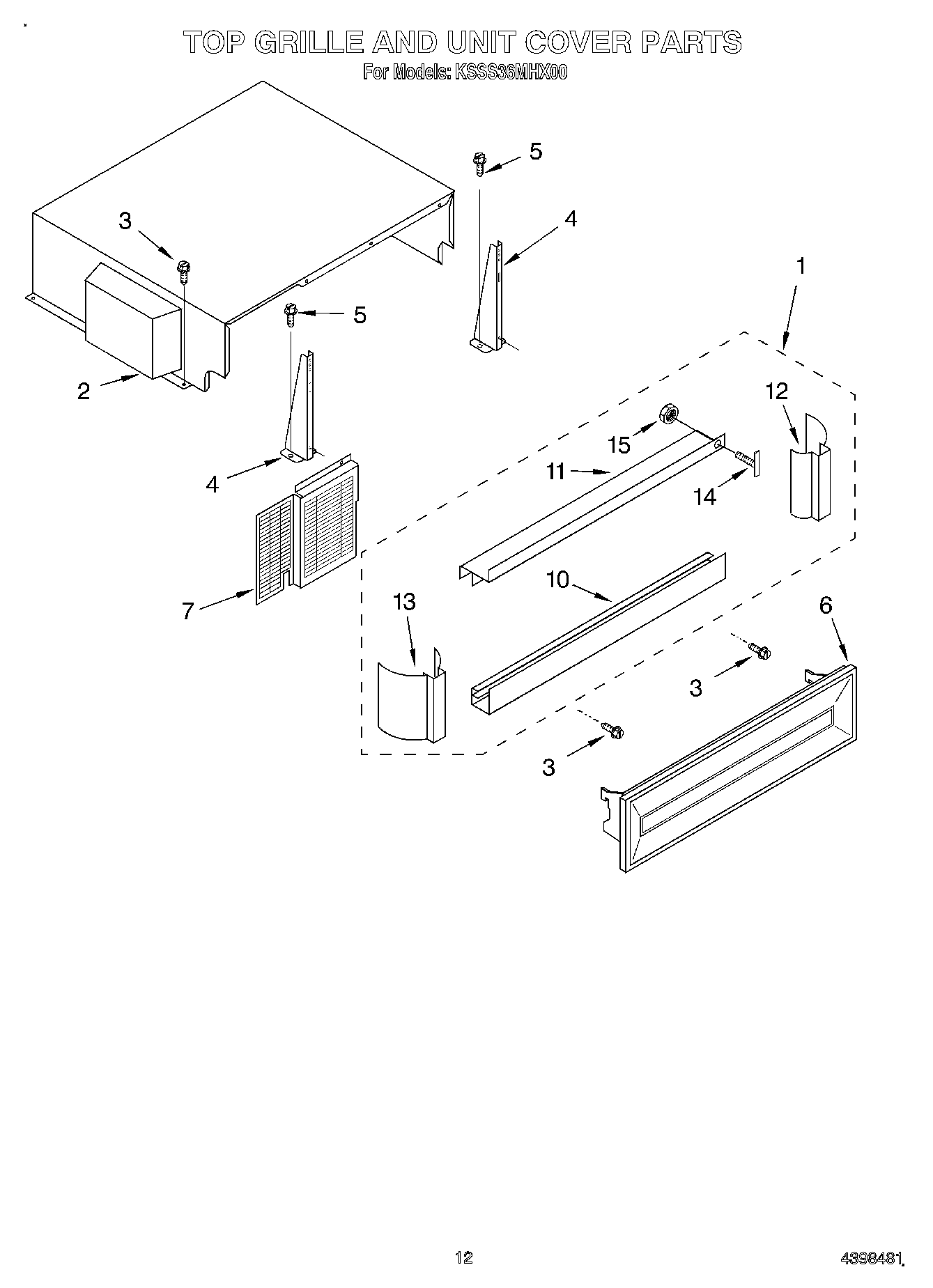

KSSS36MHX00 09 – TOP GRILL AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (Aluminum (Black Model))
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Decortive Panel Assembly (Aluminum (Black Model))
7	Guard, Compressor Wiring
10	Trim, Grille Bottom (Aluminum (Black Model))
11	Trim, Grille Top (Aluminum (Black Model))
12	Trim, Grille Right Side
13	Trim, Grille Left Side
14	2003347 Whirlpool Screw
15	WP488130 Whirlpool Air Conditioner Nut
