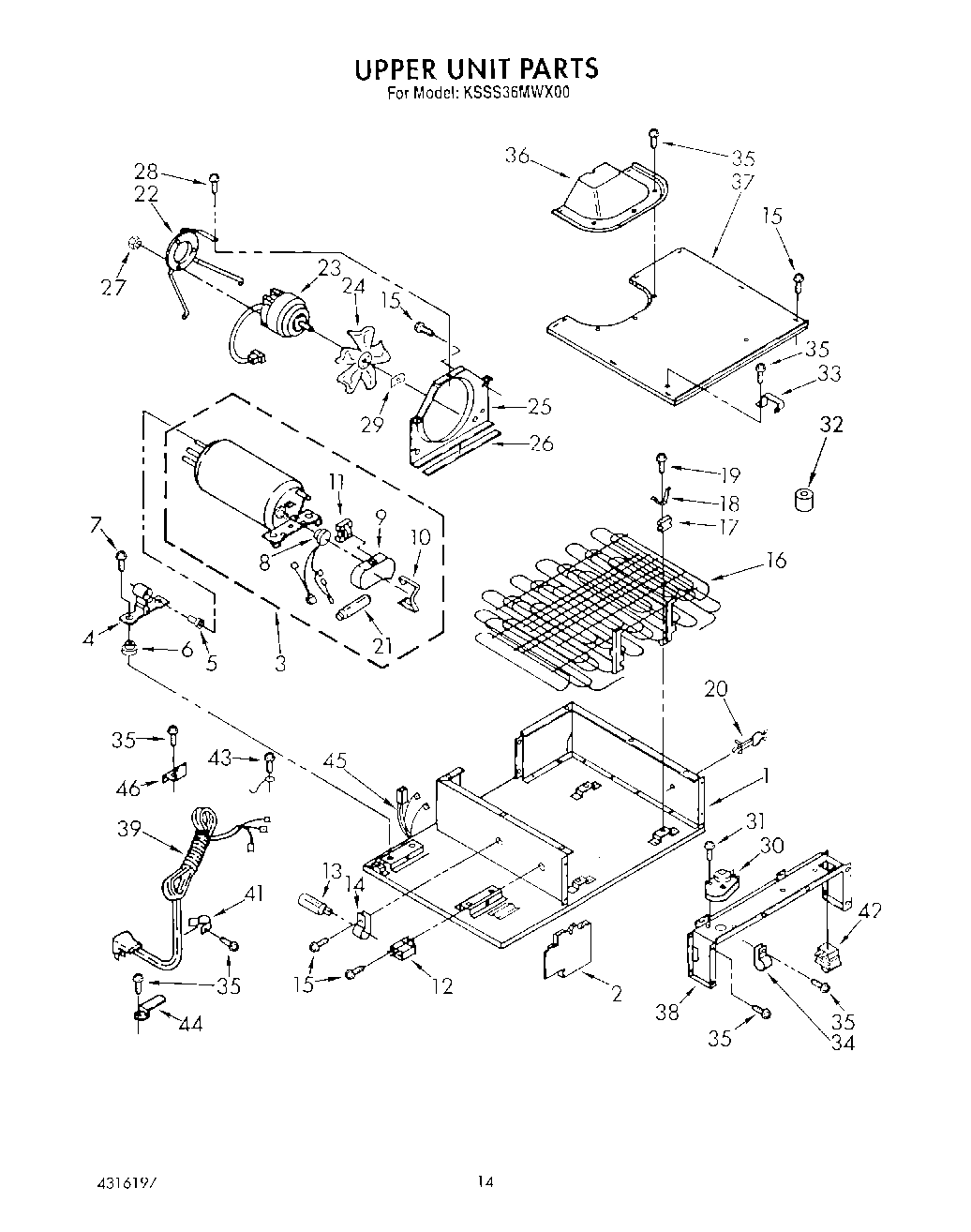

KSSS36MWX00 11 – UPPER UNIT

Products

Position	Product
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	876765 Whirlpool Primary Mounting Kit Refrigerator
3	Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order)
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload (Service) (Includes Relay)
8	Overload (Production) (Includes Relay)
9	Terminal Cover (Service)
9	Terminal Cover
10	Strap, Cover
11	Relay (See Overload)
12	Running Capacitor
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Capacitor, Start
14	Tube Clamp
15	Screw, 8 x 1/2 (3)
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
29	WP486692 Whirlpool Refrigerator Nut
30	Defrost Timer, (10 Hr.)
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
33	Clamp, Tube (2)
34	489348 Whirlpool Refrigerator Tube Clamp
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	Wiring Harness, Unit Compartment
46	VALVE, ACCESS (5/8“)
46	Stop
46	978030 Whirlpool Refrigerator Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	978026 Whirlpool Refrigerator Primary Valve
46	876764 Whirlpool Refrigerator Primary Valve
46	VALVE, ACCESS (1/2“)
46	WP978025 Whirlpool Refrigerator Valve
