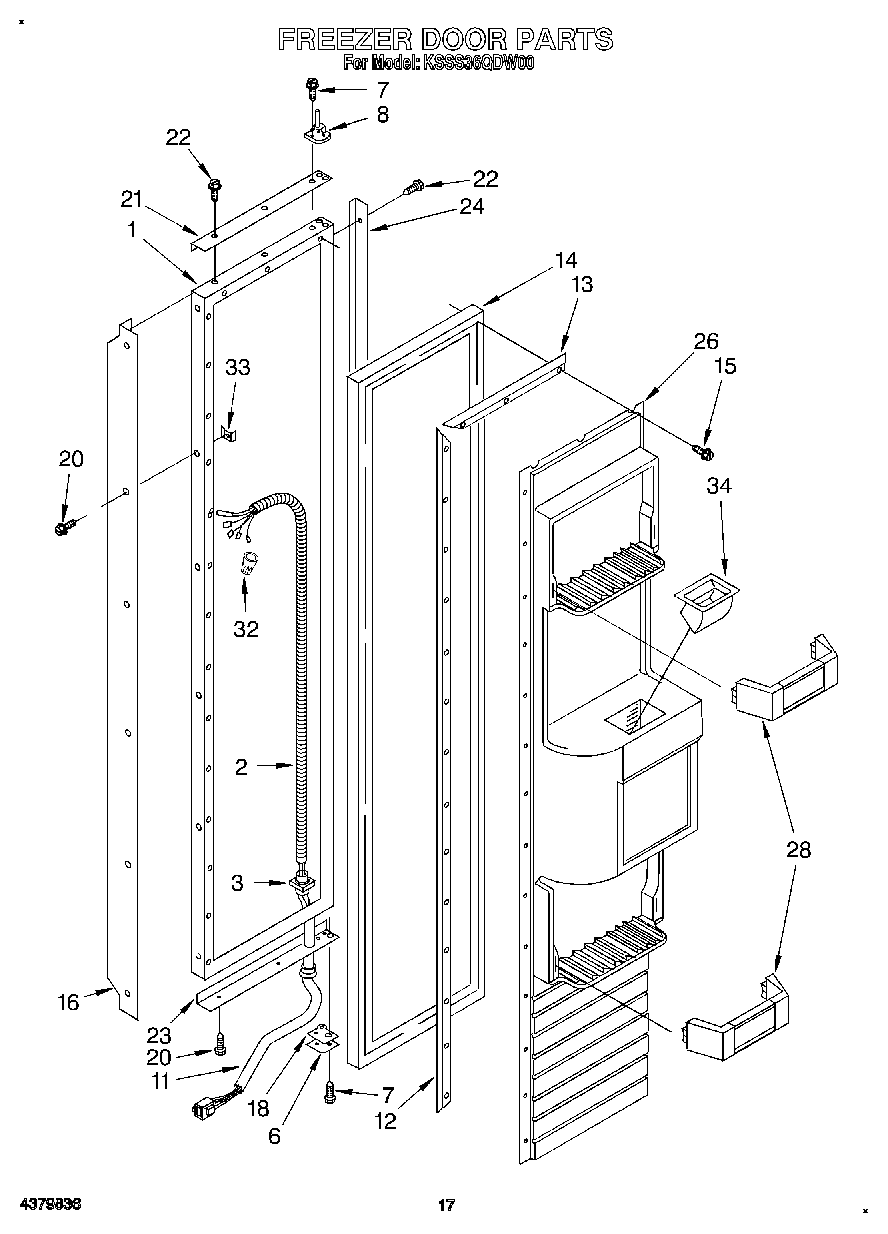

KSSS36QDW00 12 – FREEZER DOOR

KSSS36QDW00 12 – FREEZER DOOR

Written by

in

KSSS36QDW00 12 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Tube, Wiring
3Retainer, Tube
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15WP489069 Whirlpool Compactor Screw
16Handle, Door
18Door, Spacer Bottom
20Screw (White)
21Trim (Top)
22Screw
23Trim (Bottom)
24Trim (Side)
26Pa
28Shelf Bin (4)
32Conector, Wire
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
