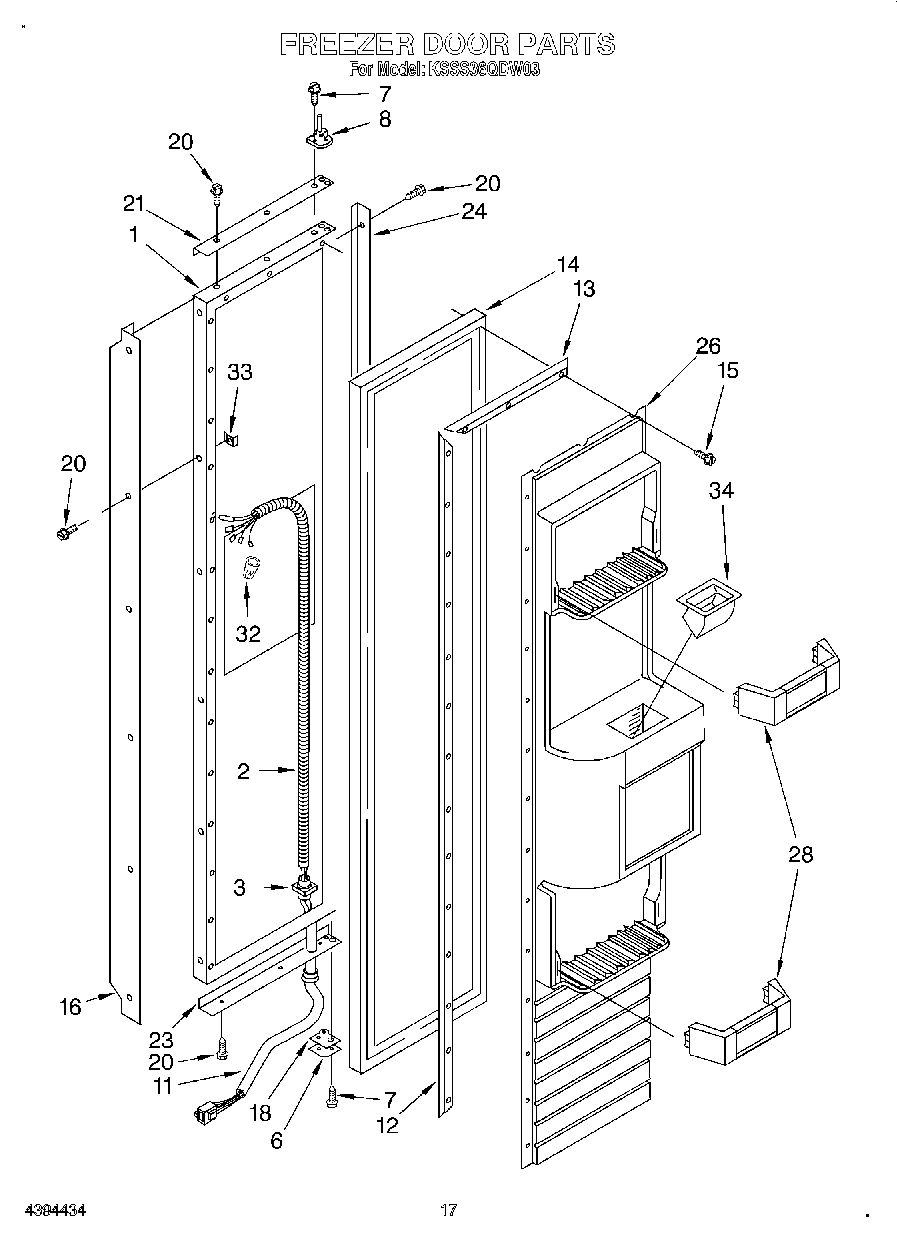

KSSS36QDW03 12 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation)
2Tube, Wiring
3Retainer, Tube
6Hinge Assembly, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15W11624204 Whirlpool Screw
16Handle, Door (White)
18Spacer-Hinge, Bottom
20Screw (White)
21Trim (Top) (White)
23Trim (Bottom) (White)
24Trim (Side) (White)
26Pa
28Shelf Bin (4)
32Conector, Wire
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
