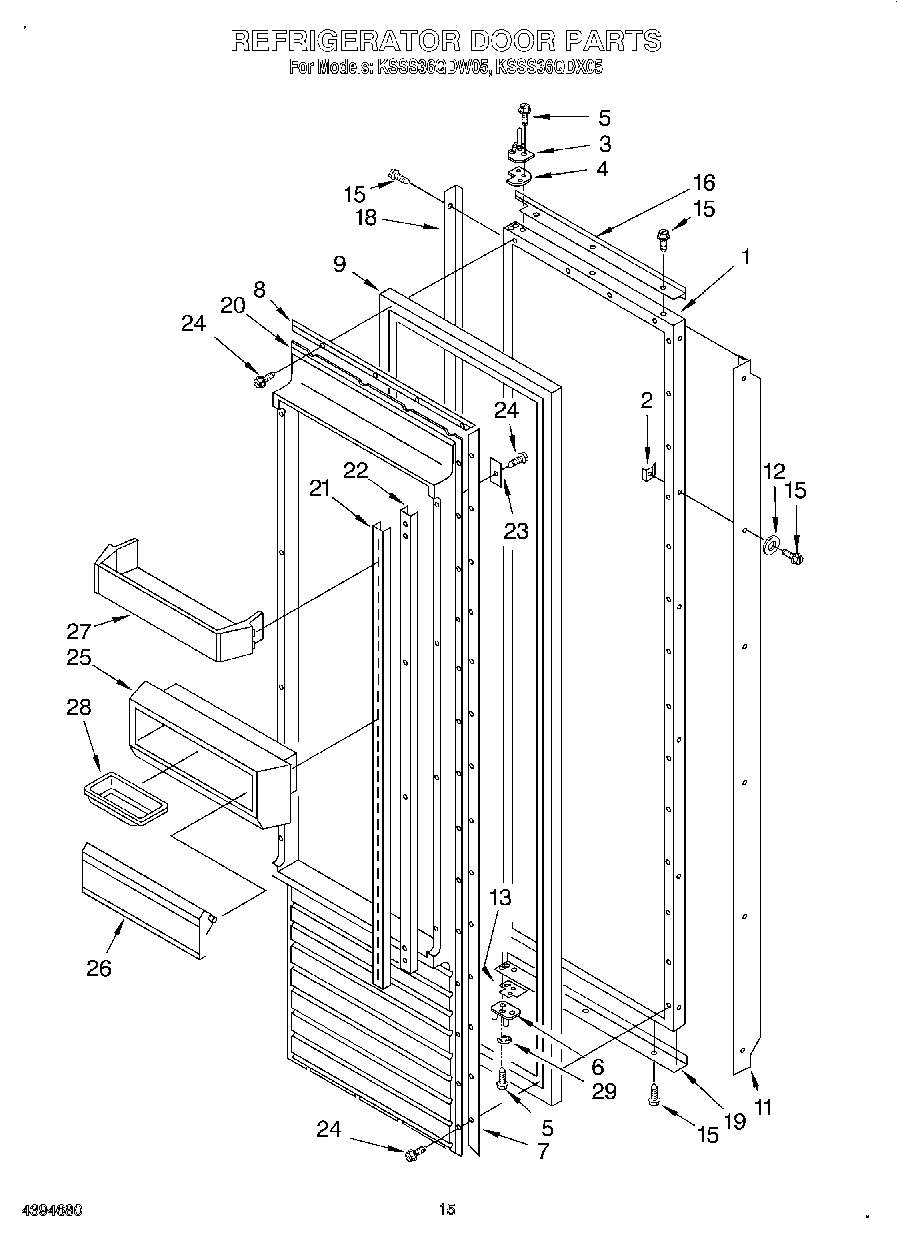

KSSS36QDW05 11 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation)
2	WP939101 Whirlpool Refrigerator Plate
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	WP2004523 Whirlpool Refrigerator Door Hinge
7	Gasket Retainer, Side (2)
8	Gasket Retainer, Top & Bottom
9	2188319A Whirlpool Refrigerator Door Gasket
11	Handle, Door (White)
11	Handle, Door
12	Washer
13	Door, Spacer
15	Screw (White)
15	WP488729 Whirlpool Refrigerator Door Screw
16	Trim, Door (Top) (Etched Aluminum)
16	TRIM-DOOR, TOP (WHITE)
18	Trim (Side) (White)
18	Trim (Side)
19	Trim (Bottom) (White)
19	Trim (Bottom) (Aluminum (Black Model))
20	Panel, Interior Door
21	Ladder, Shelf (2)
22	Retainer, Shelf Ladder (2)
23	Back Up Plate (8)
24	W11624204 Whirlpool Screw
25	Bin, Utility
26	Door, Utility Bin
27	Door Shelf (4)
28	Butter Tray
29	Retaining Ring, Door-Closure
