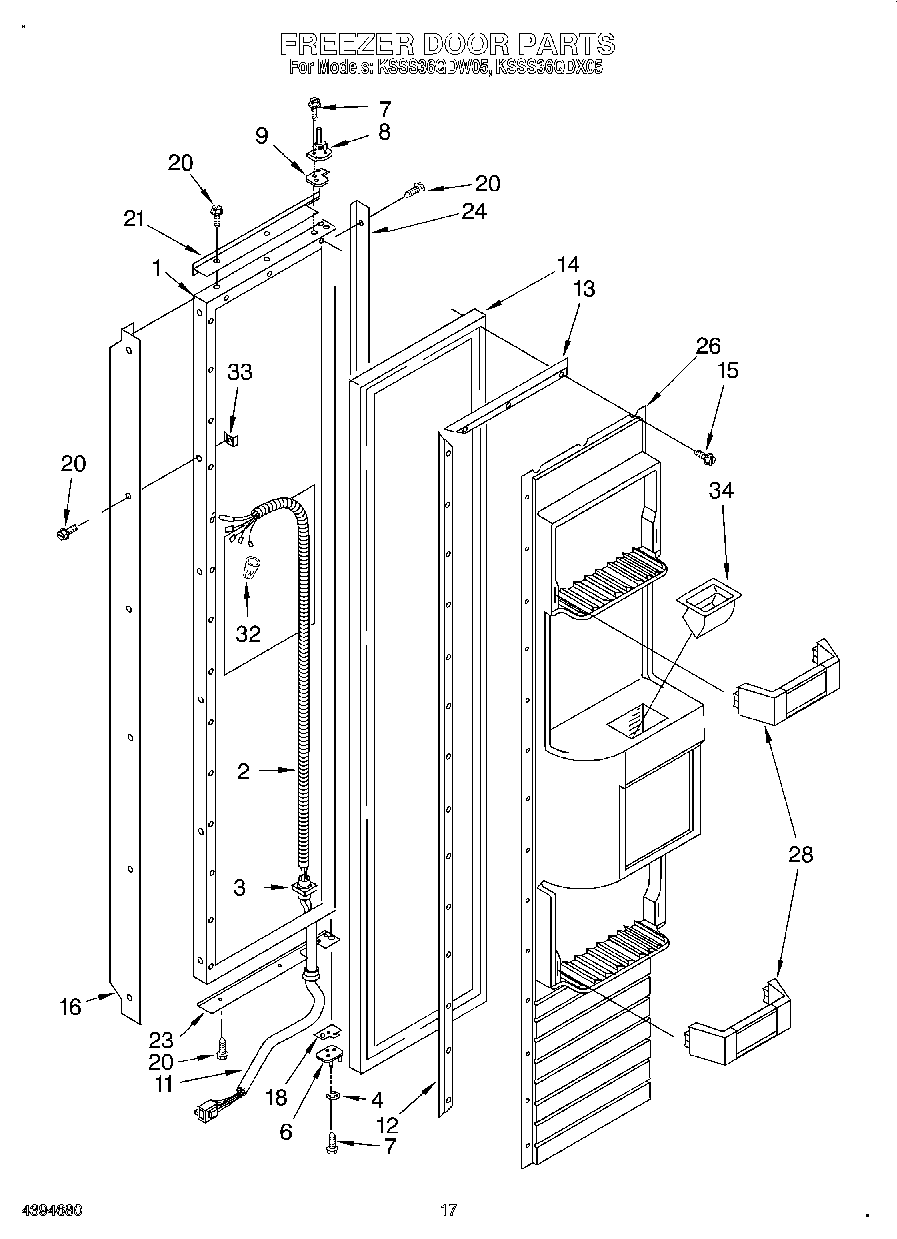

KSSS36QDW05 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Tube, Wiring
3	Retainer, Tube
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge Assembly, Top
9	Spacer-Hinge, Top
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (White)
16	Handle, Door
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
20	Screw (White)
21	TRIM-DOOR, TOP (WHITE)
21	Trim, Door (Top) (Etched Aluminum)
23	Trim (Bottom) (Aluminum (Black Model))
23	Trim (Bottom) (White)
24	Trim (Side) (White)
24	Trim (Side)
26	Pa
28	Shelf Bin (4)
32	Conector, Wire
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
