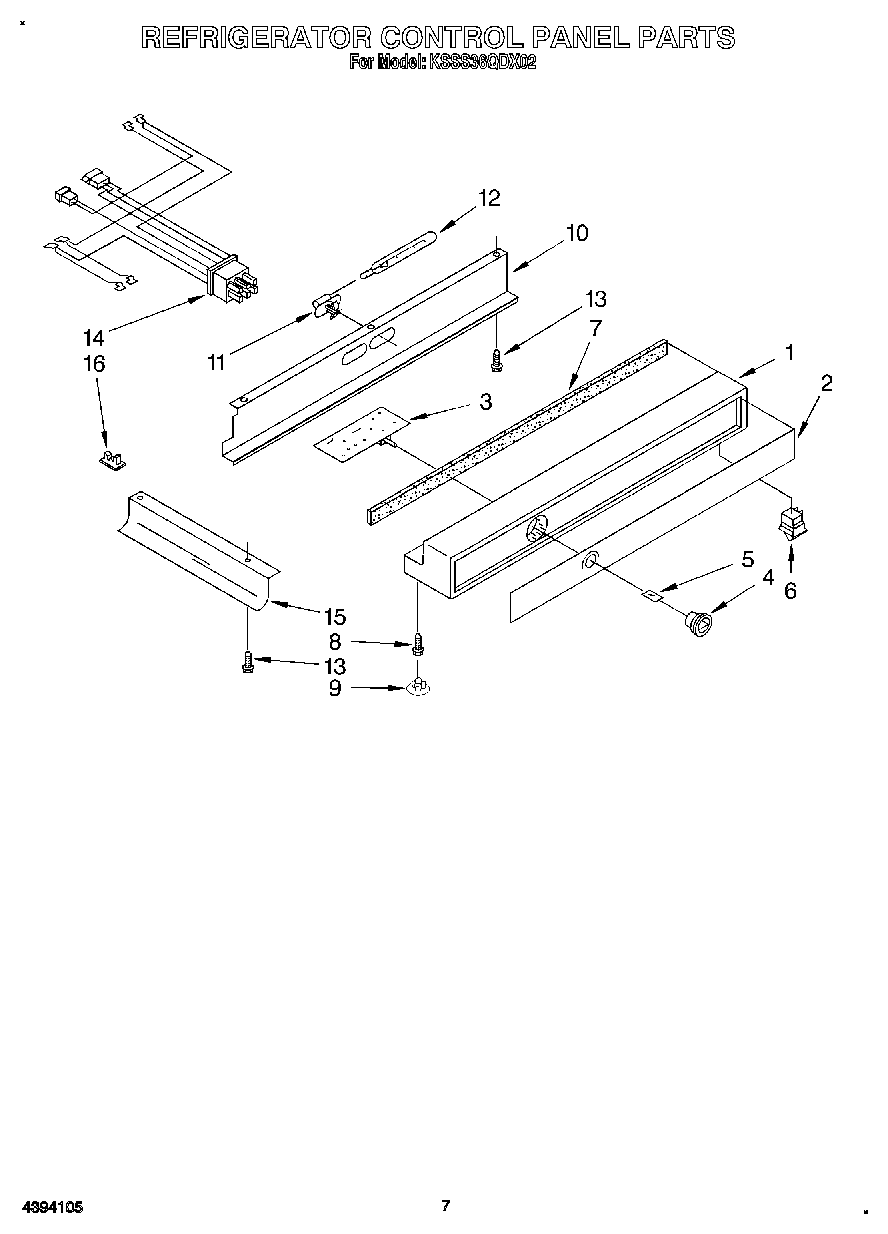

KSSS36QDX02 05 – REFRIGERATOR CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Inlay, Control Panel
3	Circuit Board
4	Control Knob
5	Knob, Retainer
6	W11384469 Whirlpool Door Switch
7	Seal, Control Panel
8	Screw (3)
9	Hole Plug (3)
10	Shield, Control Panel
11	Socket, Light
12	WP548049 Whirlpool Refrigerator Light Bulb
13	W11624204 Whirlpool Screw
14	Control Harness
15	Channel, Wiring
16	CLIP, WIRING
