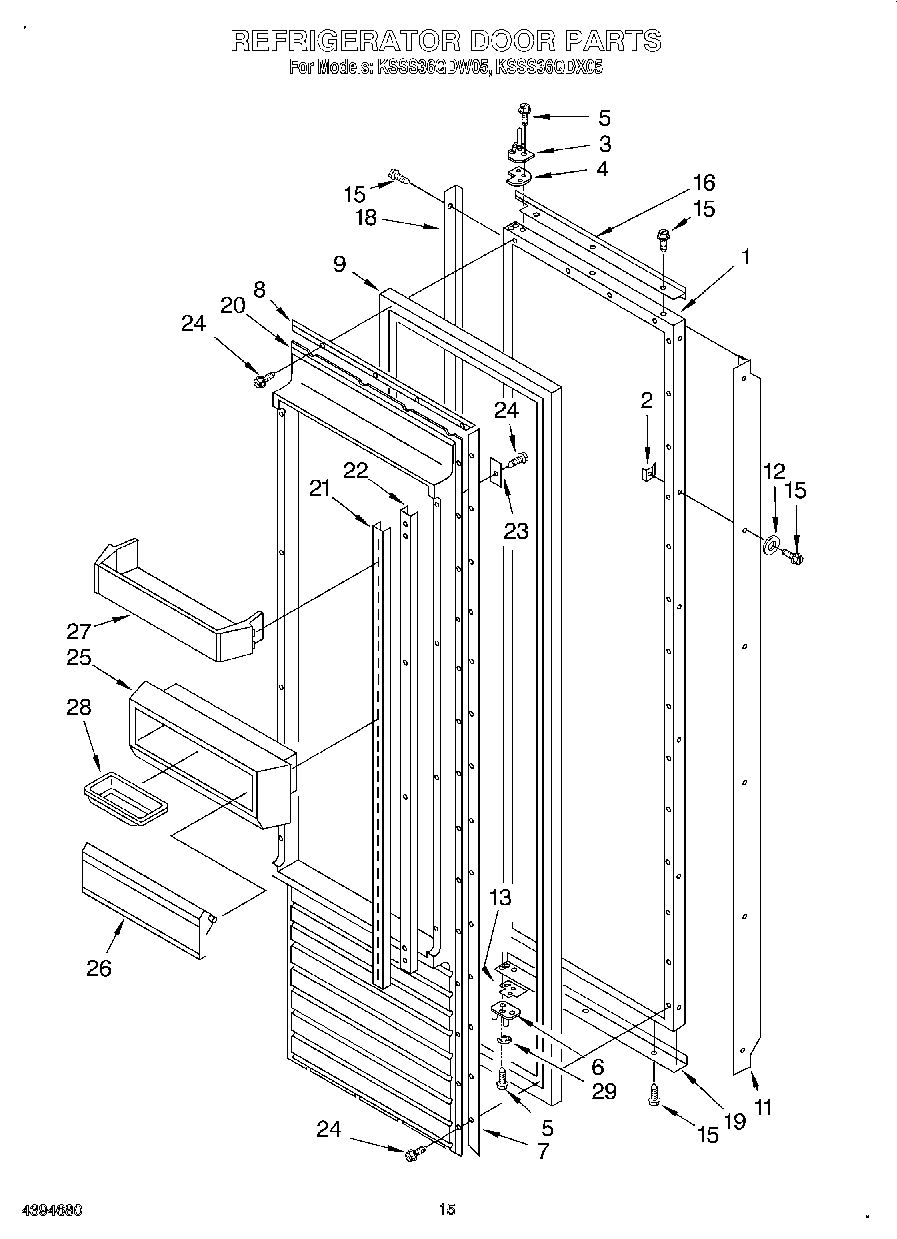

KSSS36QDX05 11 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation)
2WP939101 Whirlpool Refrigerator Plate
3Hinge Assembly, Top
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
6WP2004523 Whirlpool Refrigerator Door Hinge
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
92188319A Whirlpool Refrigerator Door Gasket
11Handle, Door (White)
11Handle, Door
12Washer
13Door, Spacer
15Screw (White)
15WP488729 Whirlpool Refrigerator Door Screw
16Trim, Door (Top) (Etched Aluminum)
16TRIM-DOOR, TOP (WHITE)
18Trim (Side) (White)
18Trim (Side)
19Trim (Bottom) (White)
19Trim (Bottom) (Aluminum (Black Model))
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24W11624204 Whirlpool Screw
25Bin, Utility
26Door, Utility Bin
27Door Shelf (4)
28Butter Tray
29Retaining Ring, Door-Closure
