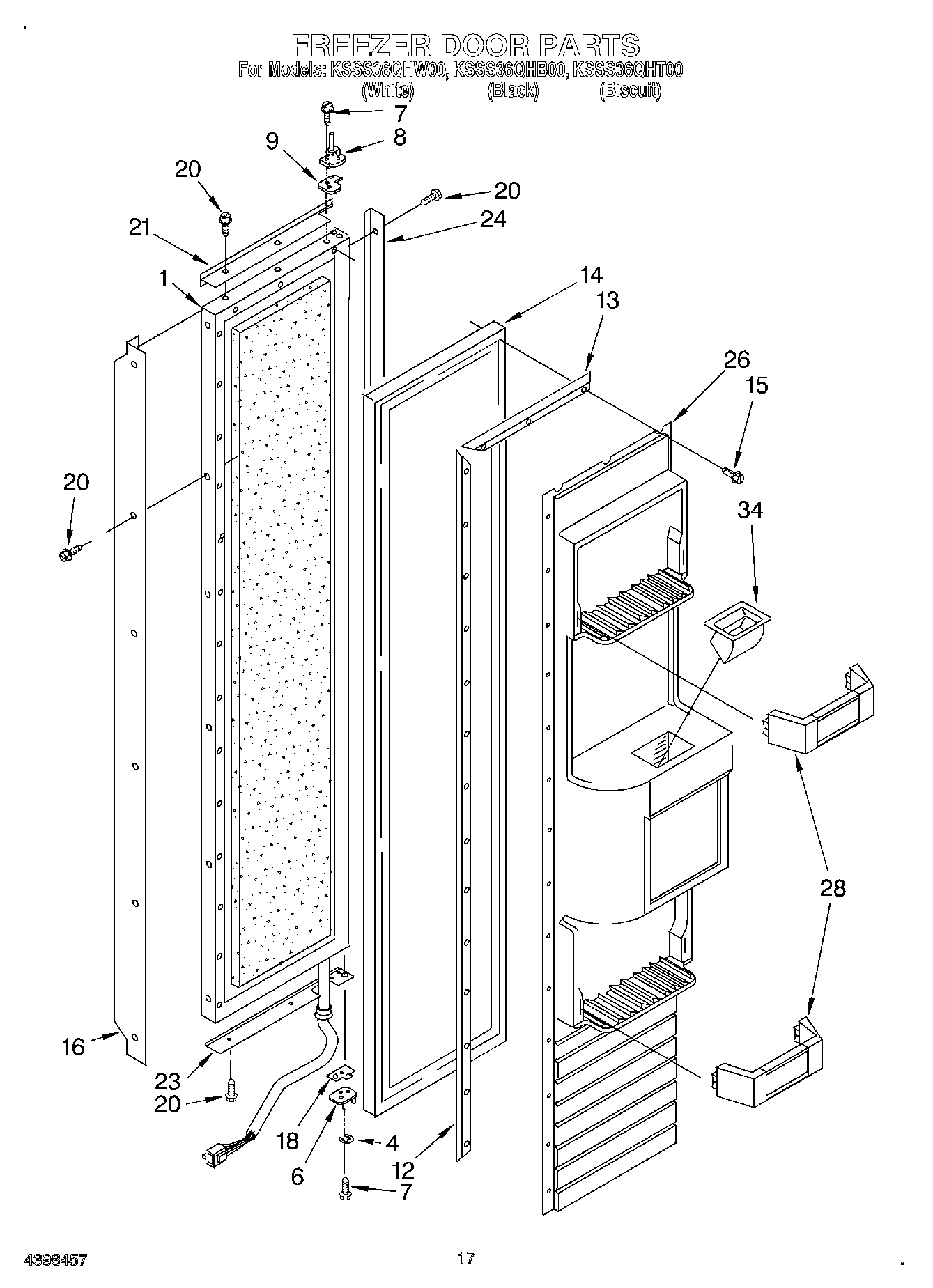

KSSS36QHT00 12 – FREEZER DOOR

KSSS36QHT00 12 – FREEZER DOOR

Written by

in

KSSS36QHT00 12 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation and Dispenser Housing) (Black)
1Freezer Door Panel (Includes Insulation) (Biscuit)
1Freezer Door Panel (Includes Insulation) (White)
4Retaining Ring, Door-Closure
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer-Hinge, Top
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
14Door Gasket, Magnetic
15W11624204 Whirlpool Screw
16Handle, Door (Black)
16Handle, Door (Biscuit)
16Handle, Door (White)
18Door, Spacer
20Screw (Biscuit)
20Screw
20Screw (White)
21TRIM-DOOR, TOP (WHITE)
21TRIM-DOOR, TOP (BLACK)
21Trim (Top) (Biscuit)
23Trim (Bottom) (Biscuit)
23Trim (Bottom) (White)
23Trim (Bottom) (Black)
24Trim (Side) (Black)
24Trim (Side) (Biscuit)
24Trim (Side) (White)
26Pa
28Shelf Bin (4)
34Ice Chute
