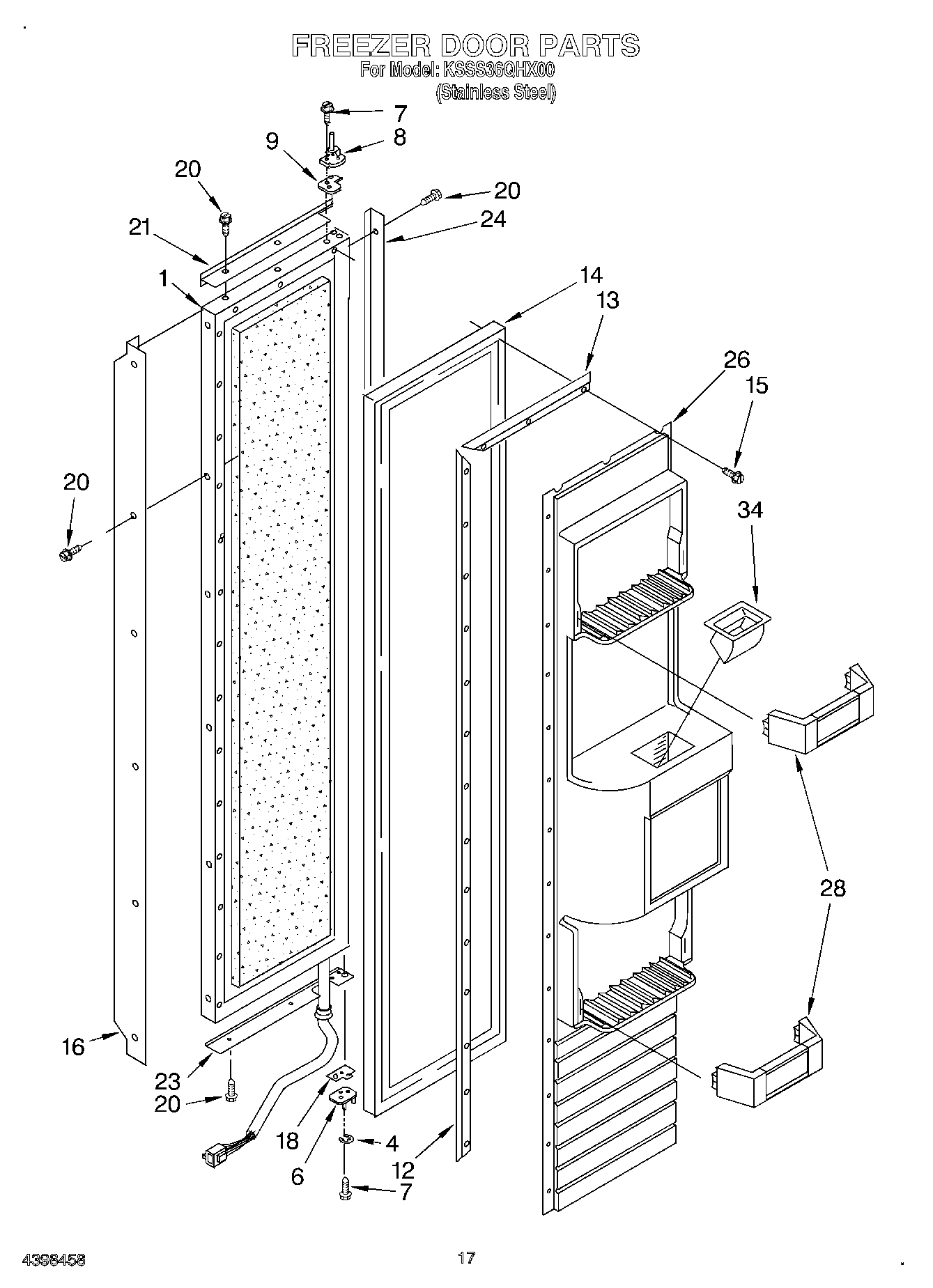

KSSS36QHX00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation and Dispenser Housing) (Black)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (Etched Aluminum)
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim, Door (Top) (Etched Aluminum)
23	Trim (Bottom) (Aluminum (Black Model))
24	Trim (Side) (Etched Aluminum)
26	Pa
28	Shelf Bin (4)
34	Ice Chute
