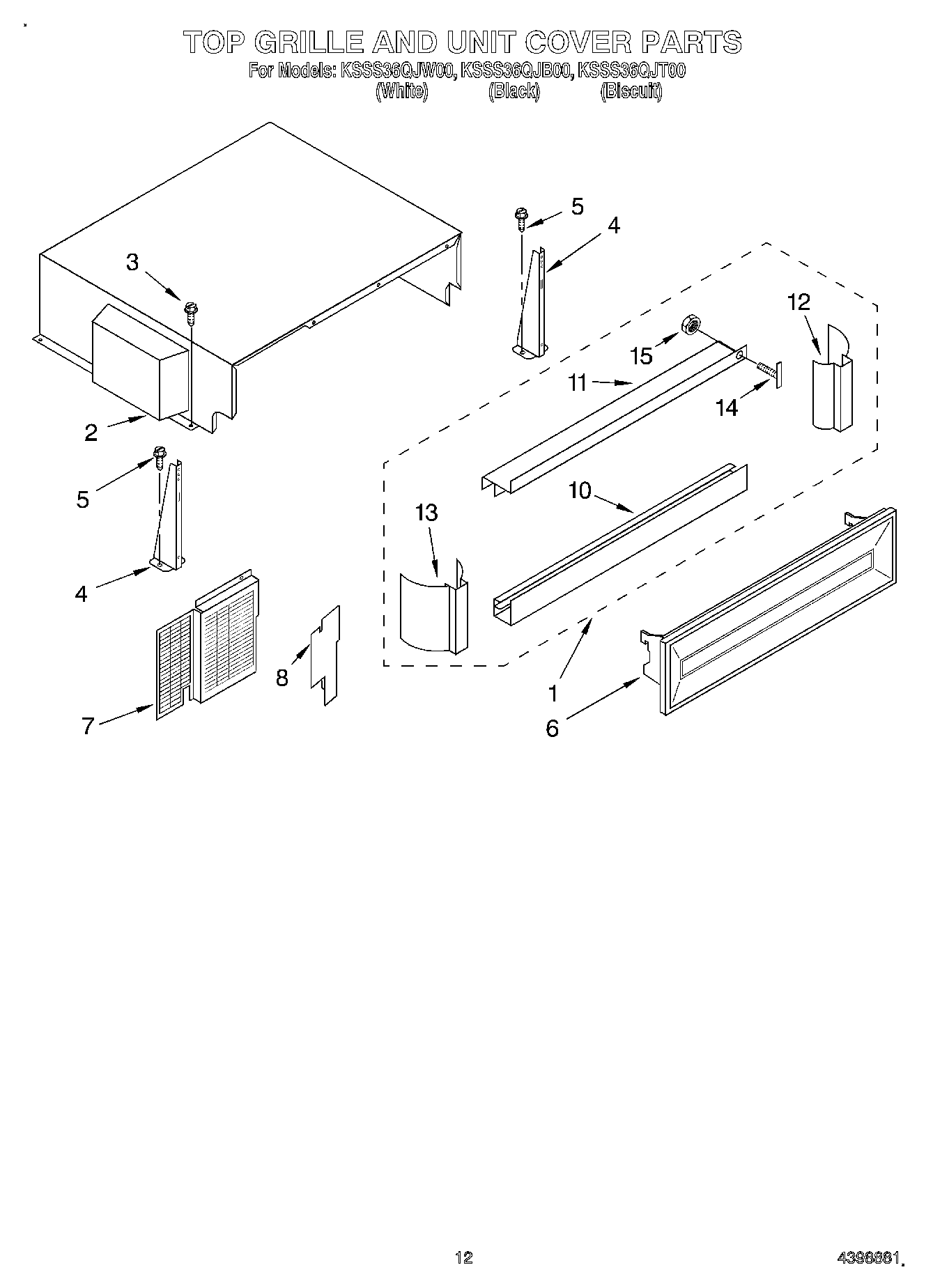

KSSS36QJW00 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Biscuit)
1Top Grille Assembly (Black)
1Top Grille Assembly (White)
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Decortive Panel Assembly (White)
6Decortive Panel Assembly (Black)
6Decortive Panel Assembly (Biscuit)
7Guard, Compressor Wiring
8Baffle-Air, Condenser
10Trim, Grille Bottom (White)
10Trim, Grille Bottom (Biscuit)
10Trim, Grille Bottom (Black)
11Trim, Grille Top (White)
11Trim, Grille Top (Biscuit)
11Trim, Grille Top (Black)
12Trim, Grille Right Side (Black)
12Trim, Grille Right Side (Biscuit)
12Trim, Grille Right Side (White)
13Trim, Grille Left Side (Biscuit)
13Trim, Grille Left Side (White)
13Trim, Grille Left Side (Black)
142003347 Whirlpool Screw
15WP488130 Whirlpool Air Conditioner Nut
