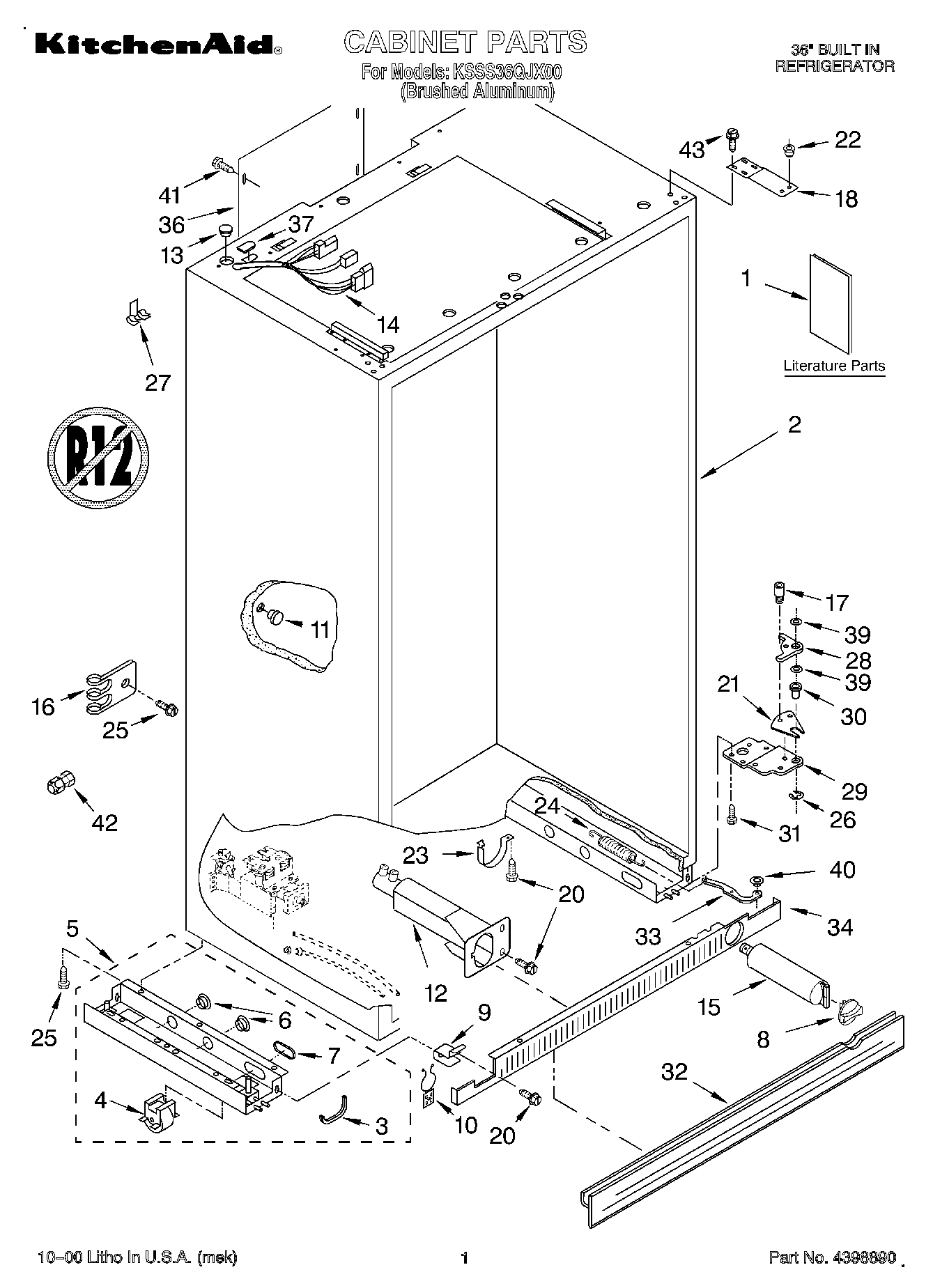

KSSS36QJX00 01 – CABINET, LITERATURE

Products

Position	Product
1	Modular Icemaker Service Sheet
1	Energy Label
1	LITERATURE PARTS (Use & Care Guide)
1	LITERATURE PARTS (Installation Instructions)
1	LITERATURE PARTS (Service & Wiring Sheet)
2	Cabinet (Not A Serviceable Part)
3	Grommet, Crossover Tube
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	Grommet, Wiring
7	Grommet, Flexible
8	WP2186494B Whirlpool Refrigerator Filter Cap
9	Mounting Bracket, Grill
10	Clip, Wire
11	Cap, Grommet
12	WP2209022 Whirlpool Refrigerator Housing
13	Grommet, Wiring
14	Wiring Harness, Cabinet
15	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
16	Clip, Tube (3)
17	WP2005378 Whirlpool Refrigerator Screw
18	2257644 Whirlpool Refrigerator Door Hinge
20	WP489464 Whirlpool Refrigerator Screw
21	WP2004994 Whirlpool Refrigerator Hinge Bushing
22	Bushing
23	Clamp, Filter Housing
24	Spring, Door Closure
25	W11624204 Whirlpool Screw
26	WP489236 Whirlpool Refrigerator Ring
27	Fastener (3)
28	Gap, Cover Assembly (Bottom)
29	WP2006780 Whirlpool Refrigerator Door Hinge
29	W10527053 Whirlpool Refrigerator Door Hinge
30	WP2302876 Whirlpool Refrigerator Hinge Bushing
32	WP2209024B Whirlpool Refrigerator Front Grille
33	Linkage, Door Closure
34	Grille Bottom, Front
36	Cover, Rear
37	WPL 2209203
39	WP2006346 Whirlpool Refrigerator Washer
40	WPL 2004565
41	WP1163283 Whirlpool Air Conditioner Screw
42	WP4318044 Whirlpool Refrigerator Connector
43	WP8204624 Whirlpool Bolt
