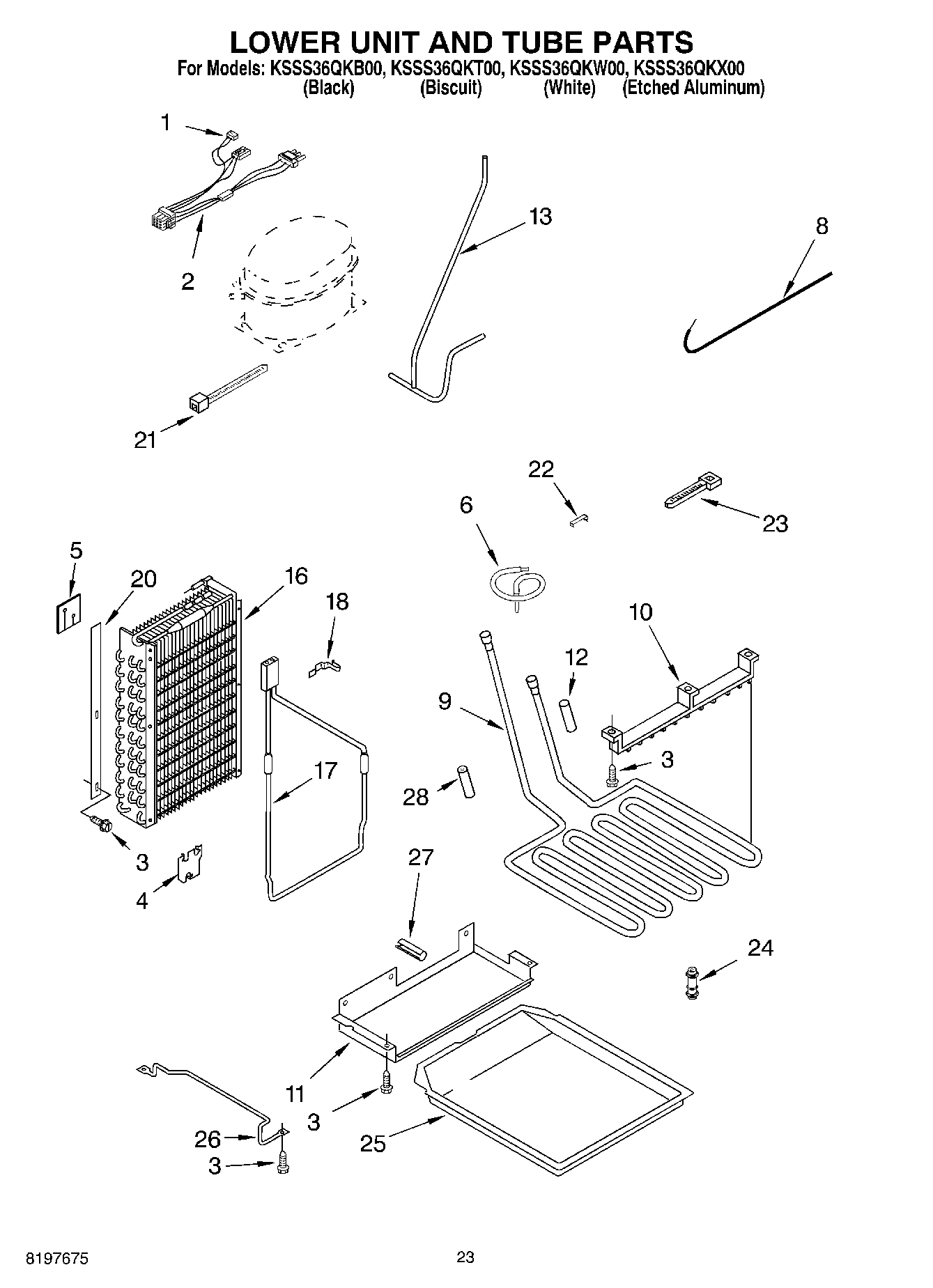

KSSS36QKB00 14 – LOWER UNIT AND TUBEadmin2025-04-26T12:32:28+00:00KSSS36QKB00 14 – LOWER UNIT AND TUBE
Products
| Position | Product |
|---|
| 1 | WPW10225581 Whirlpool Refrigerator Defrost Thermostat |
| 2 | Wire Harness |
| 3 | W11624204 Whirlpool Screw |
| 4 | Bracket |
| 5 | Side Support |
| 6 | Suction Tube |
| 8 | Tube, Connect (Drier) |
| 9 | Heater, Drain Pan |
| 10 | Hanger, Heater |
| 11 | Shield, Drain Pan |
| 12 | Sleeve |
| 13 | Tube, Discharge |
| 16 | WP2306092 Whirlpool Refrigerator Evaporator |
| 17 | Heater, Defrost |
| 18 | 1113048 Whirlpool Refrigerator Clamp |
| 20 | Gasket, Evaporator |
| 21 | WPW10339879 Whirlpool Wire Tie |
| 22 | W10169509 Whirlpool Refrigerator Clip |
| 23 | Strap |
| 24 | Grommet, Water Tube |
| 25 | WP2001264 Whirlpool Refrigerator Drip Pan |
| 26 | Bracket, Drain Pan (Left) |
| 26 | Bracket, Drain Pan (Right) |
| 27 | WP2158826 Whirlpool Refrigerator Dampener |
| 28 | 2215648 Whirlpool Refrigerator Dampener |
