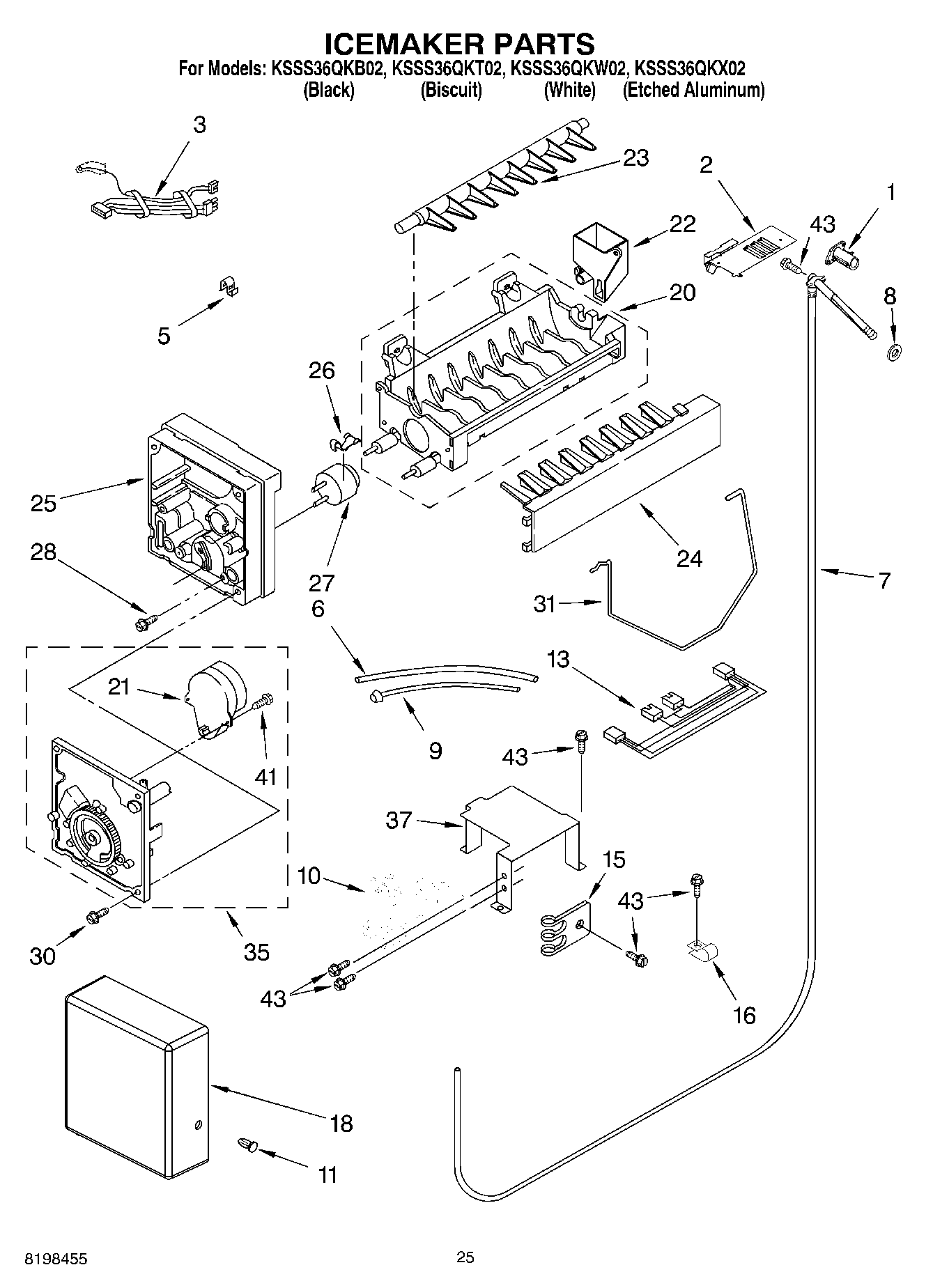

KSSS36QKB02 15 – ICEMAKER PARTSadmin2025-04-26T12:33:06+00:00KSSS36QKB02 15 – ICEMAKER PARTS ProductsPositionProduct1WP2221240 Whirlpool Refrigerator Heater2WP2221231 Whirlpool Refrigerator Shield3Wire Assembly, Icemaker5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8WP1106508 Whirlpool Refrigerator Gasket9Tube, Filter Outlet10WP2188786 Whirlpool Refrigerator Inlet Valve11WP489115 Whirlpool Refrigerator Rivet13Water Valve, Harness15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube18Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm358201515 Whirlpool Refrigerator Motor and Gear Module Kit37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly100FOLLOWING PARTS NOT ILLUSTRATED100Front Panel Kit100Front Panel Kit (Stainless Steel)100Front Panel Kit (Black)100Front Panel Kit (White)100(Optional Parts Only)
