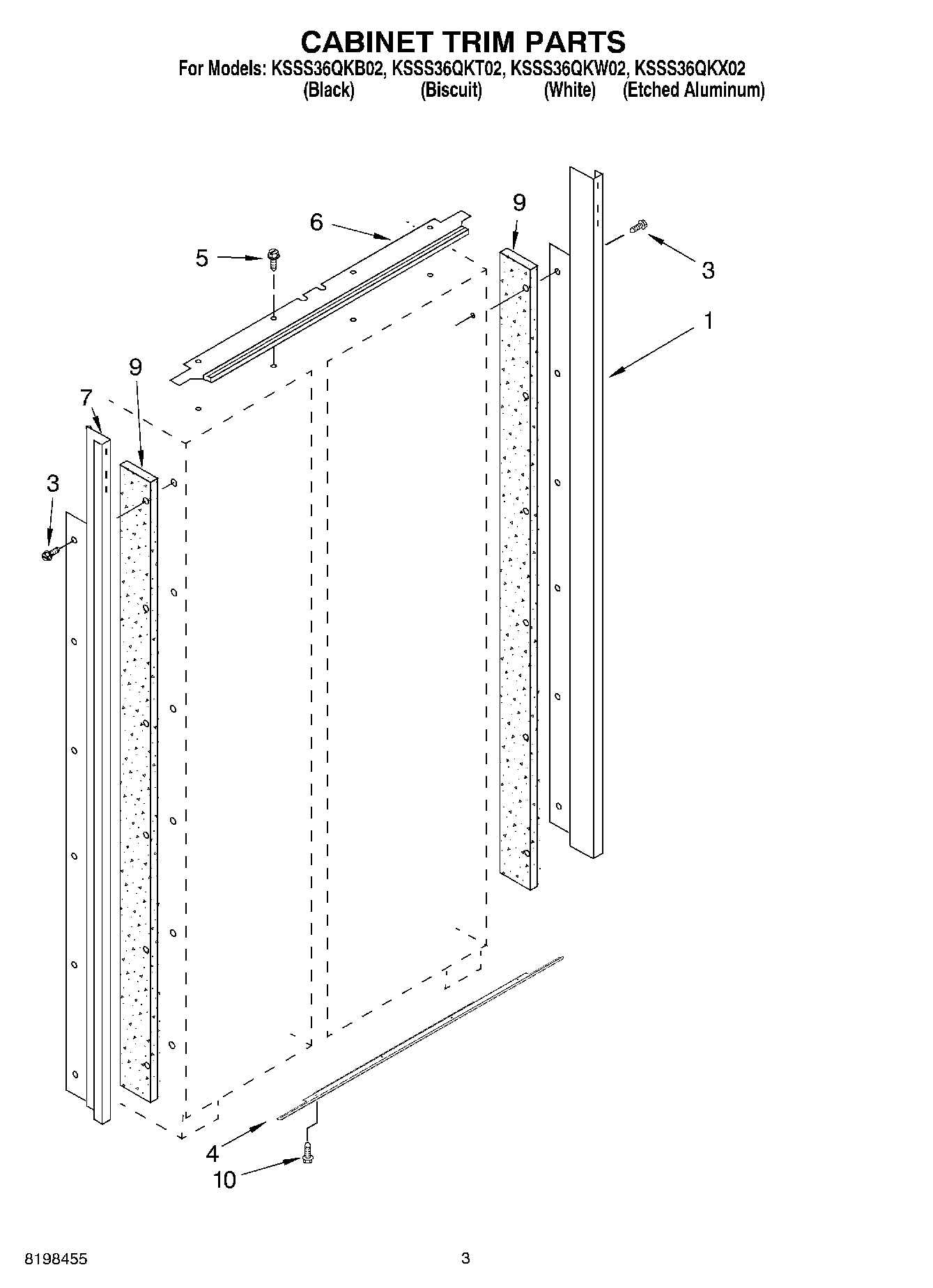

KSSS36QKT02 02 – CABINET TRIM PARTS

Products

PositionProduct
1Cabinet, Trim (Right Side) (White)
1Cabinet, Trim Right Side (Etched Aluminum)
1Cabinet, Trim (Right Side) (Biscuit)
1Cabinet, Trim (Right Side) (Black)
3Screw 8-15 x 1/2 (White)
3Screw 8-15 x 1/2 (Biscuit)
3WP8281250 Whirlpool Refrigerator Screw
3W10851443 Whirlpool Refrigerator Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Cabinet Trim (Left Side) (White)
7Cabinet Trim (Left Side) (Biscuit)
7Cabinet Trim (Left Side) (Black)
7Cabinet Trim (Left Side) (Etched Aluminum)
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
