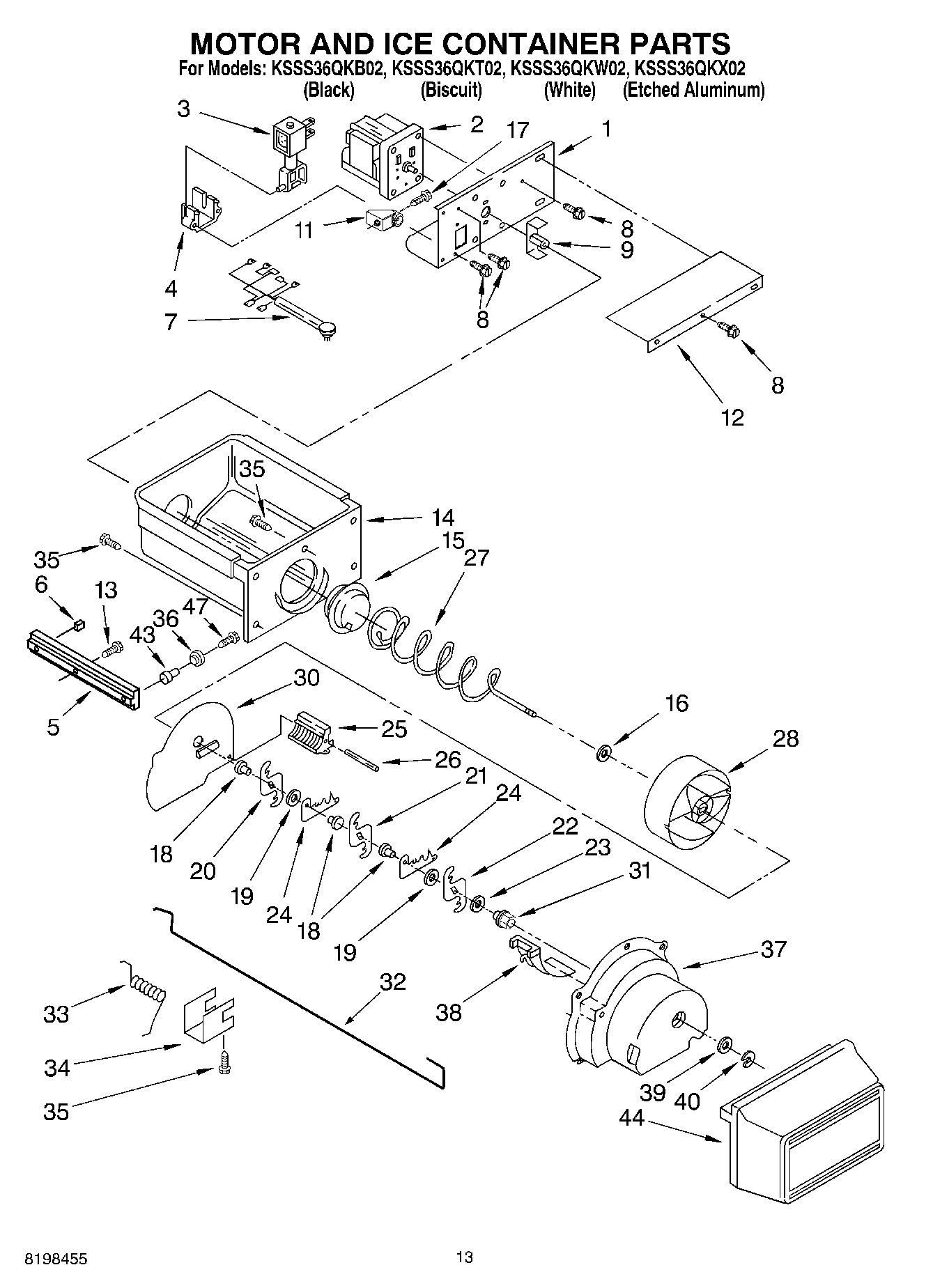

KSSS36QKT02 09 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Bracket, Motor
2WP2188242 Whirlpool Refrigerator Motor
3Soleniod Assembly
4W10850503 Whirlpool Refrigerator Guide
52006518 Whirlpool Refrigerator Track
5Slide, Container (Right Side)
6Roller Stop
7Wiring Assembly, Ice Dispenser
8WP489399 Whirlpool Refrigerator Screw
9COUPLING AUGER MOTOR
114388405 Whirlpool Refrigerator Shelf Stud
12Cover, Motor
13W11624204 Whirlpool Screw
14Ice Container
15W10749708 Whirlpool Refrigerator Coupling
16WP3400912 Whirlpool Refrigerator Washer
17W10142289 Whirlpool Air Conditioner Screw
18WP1119005 Whirlpool Refrigerator Spacer
19WP1119007 Whirlpool Refrigerator Spacer
20W10278731 Whirlpool Refrigerator Blade
21W10278732 Whirlpool Refrigerator Blade
22W10278733 Whirlpool Refrigerator Blade
23WP489235 Whirlpool Refrigerator Washer
24Blade, Fixed (2)
252157405 Whirlpool Refrigerator Blade Block
26489229 Whirlpool Refrigerator Roll Pin
27Conveyor
284388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30W10852691 Whirlpool Refrigerator Baffle
31WP1119018 Whirlpool Refrigerator Bearing
32Control Arm
331119020 Whirlpool Refrigerator Spring
341119021 Whirlpool Refrigerator Clip
35WP488787 Whirlpool Refrigerator Screw
36Roller
37WPW10185018 Whirlpool Refrigerator Housing
38WP1119017 Whirlpool Refrigerator Deflector
39489234 Whirlpool Refrigerator Washer
40WP489236 Whirlpool Refrigerator Ring
43Eyelet, Roller
44Front Cover, Ice Container
47WPW10272364 Whirlpool Refrigerator Screw
99Ice Crusher Mechanism Assembly
100Complete Ice Container Assembly
