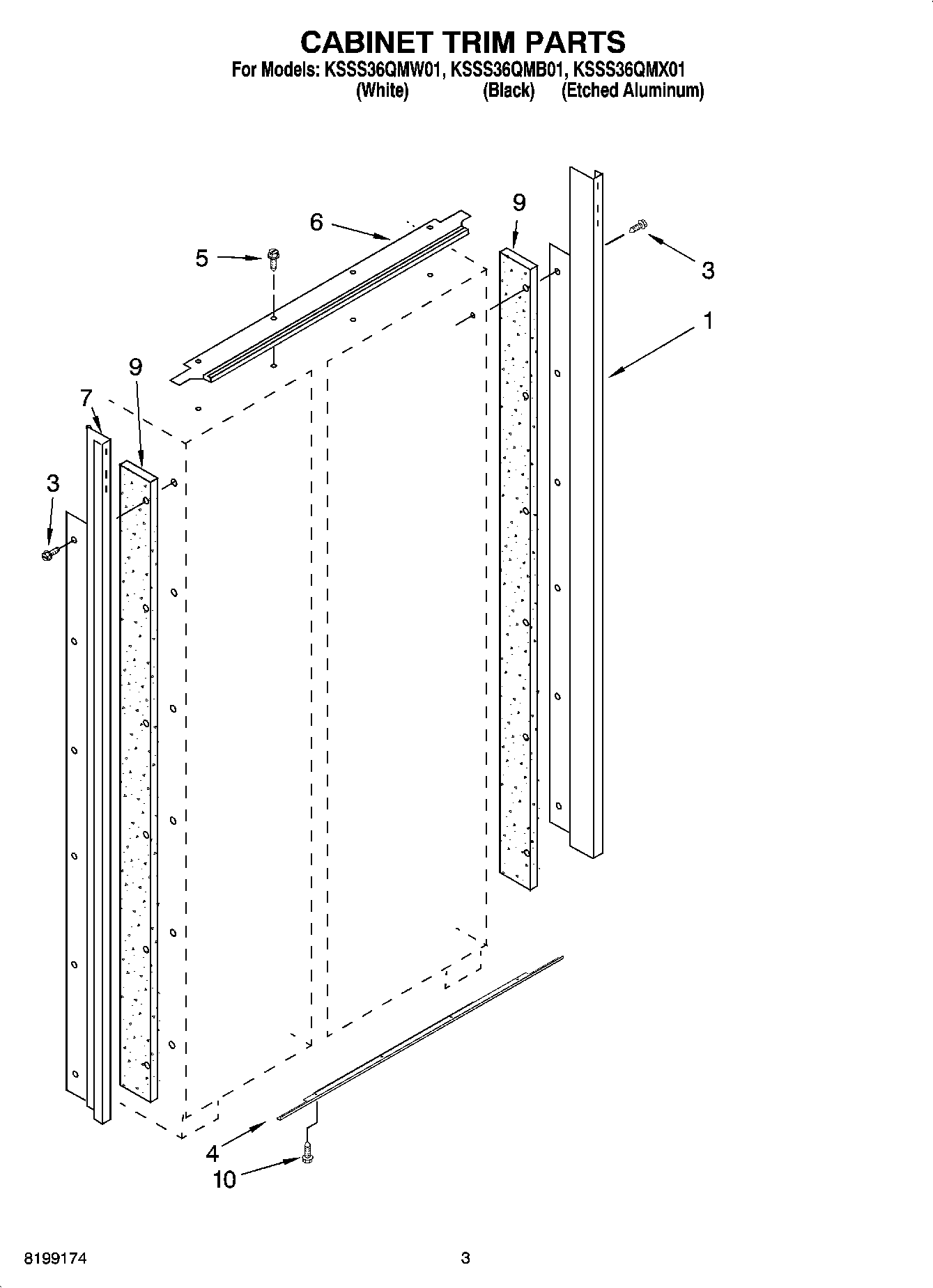

KSSS36QMB01 02 – CABINET TRIM PARTS

KSSS36QMB01 02 – CABINET TRIM PARTS

Written by

in

KSSS36QMB01 02 – CABINET TRIM PARTS

Products

PositionProduct
1Cabinet, Trim (Right Side) (White)
1Cabinet, Trim (Right Side) (Etched Aluminum)
1Cabinet, Trim (Right Side) (Black)
3W10851443 Whirlpool Refrigerator Screw
3WP8281250 Whirlpool Refrigerator Screw
3Screw 8-15 x 1/2 (White)
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Cabinet Trim (Left Side) (Black)
7Cabinet Trim (Left Side) (Etched Aluminum)
7Cabinet Trim (Left Side) (White)
9Seal, Side Trim
10WP489464 Whirlpool Refrigerator Screw
