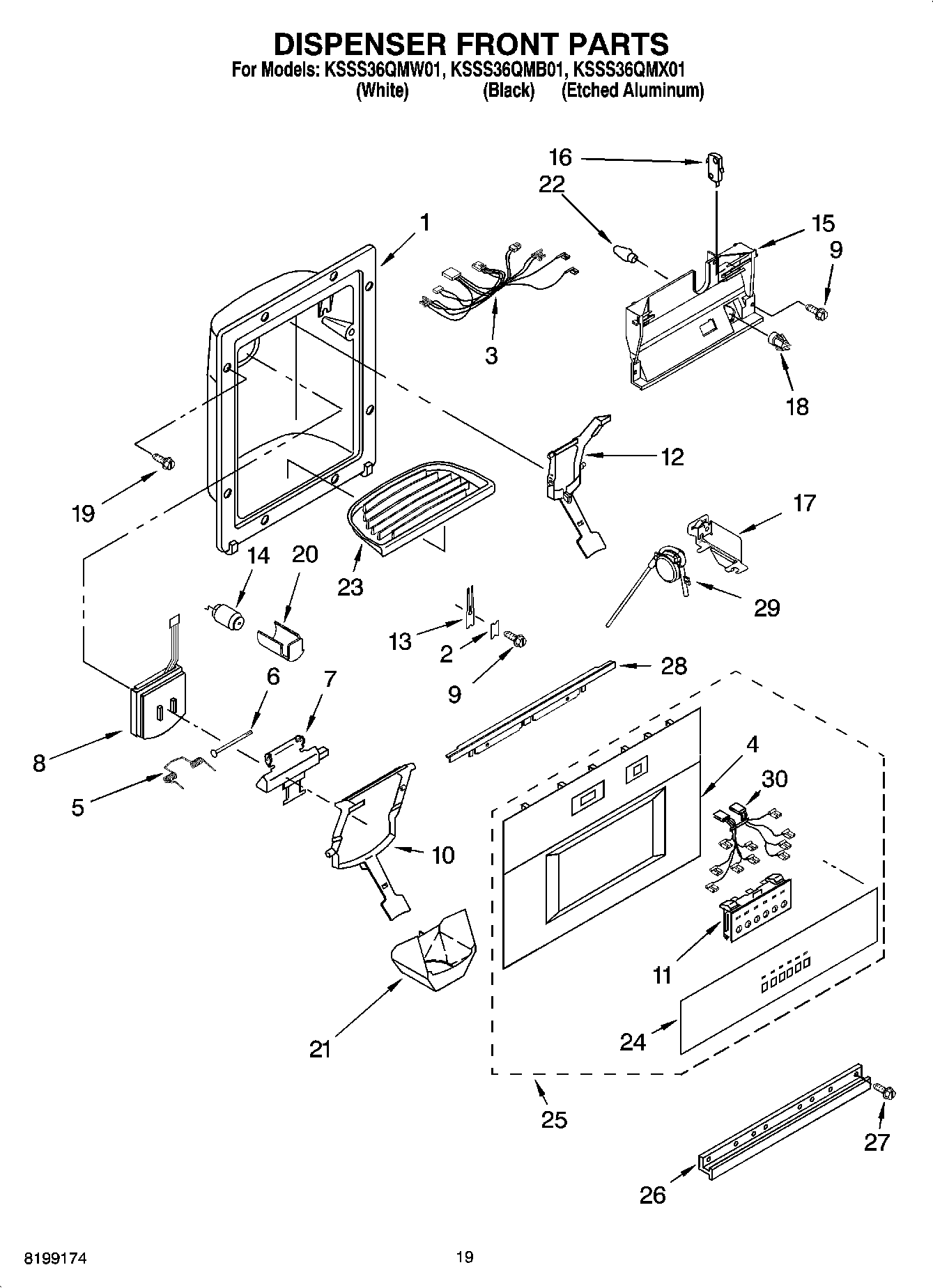

KSSS36QMB01 12 – DISPENSER AND FRONT PARTS

Products

PositionProduct
1Housing, Dispenser (Not Serviced)
2WP2195051 Whirlpool Refrigerator Clip
3Wire Assembly
4Cover, Dispenser (Not Available- Order Item 25)
5WPW10224328 Whirlpool Refrigerator Spring
6WP2196195 Whirlpool Refrigerator Door Pin
7Door Mechanism Assembly
8WP2180353 Whirlpool Dispenser Door
9WP3400906 Whirlpool Refrigerator Screw
10Lever, Ice Dispenser (Black)
10Lever, Ice Dispenser (White)
11Switch Assembly (Not Available Order Item 25)
12W10856124 Whirlpool Refrigerator Dispenser Arm
12Lever, Water Dispenser (White)
13WP2194719 Whirlpool Refrigerator Clip
14Delay Mechanism
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP2162361 Whirlpool Switch
172259209 Whirlpool Refrigerator Bracket
182180200 Whirlpool Refrigerator Socket
19WP8281163 Whirlpool Refrigerator Screw
20Sleeve, Delay Mechanism
21WP2180224 Whirlpool Dispenser Funnel Guide
22WP22002263 Whirlpool Dryer 10W Light Bulb
23WP2206670W Whirlpool Dispenser Tray
23WP2206670B Whirlpool Dispenser Tray
24Overlay, Cover (Not Available- Order Item 25)
25Front Cover Assembly (Includes Items 4, 11, 24 & 30) (White)
25Front Cover Assembly (Includes Items 4, 11, 24 & 30) (Black)
26Trim, Front-Bottom (White)
26Trim, Front-Bottom (Black)
27Screw 8-15 x 1/2 (White)
27WP8281250 Whirlpool Refrigerator Screw
27W10851443 Whirlpool Refrigerator Screw
28Trim, Front-Top (Black)
28Trim, Front-Top (White)
298201537 Whirlpool Water Tubing Assembly
30Harness, Switch Jumper Assembly
