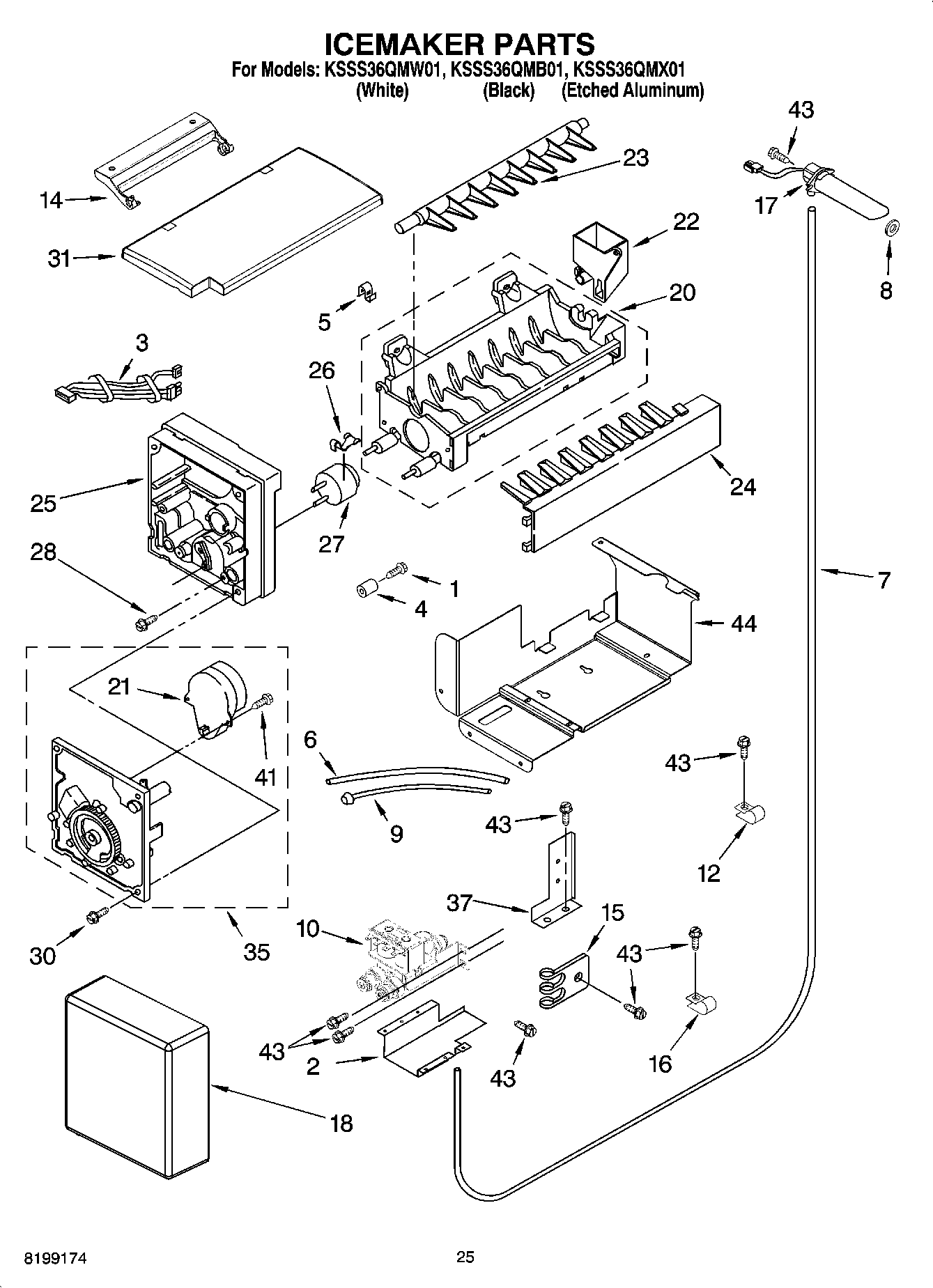

KSSS36QMB01 15 – ICEMAKER PARTS

Products

Position	Product
2	Cover, Bottom
3	Wire Assembly, Icemaker
4	2252354 Whirlpool Spacer Assembly
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Inlet Tube Assembly
8	Seal Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	Valve, Solenoid
12	W10833902 Whirlpool Refrigerator Clamp
14	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
17	W10460127 Whirlpool Refrigerator Inlet Tube
18	Cover
20	WPW10122550 Whirlpool Refrigerator Ice Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	626753 Whirlpool Refrigerator Ejector Arm
24	W10297245 Whirlpool Refrigerator Arm Stripper
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W10504752 Whirlpool Refrigerator Ice Door
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
44	2300167 Whirlpool Bracket
100	Front Panel Kit (Stainless Steel)
100	FOLLOWING PARTS NOT ILLUSTRATED
100	Front Panel Kit (Black)
100	Front Panel Kit (White)
100	Ice Container Assembly
100	Black Acrylic Static Cleaner
100	WPW10277449 Whirlpool Refrigerator Ice Maker
100	(Optional Parts Only)
