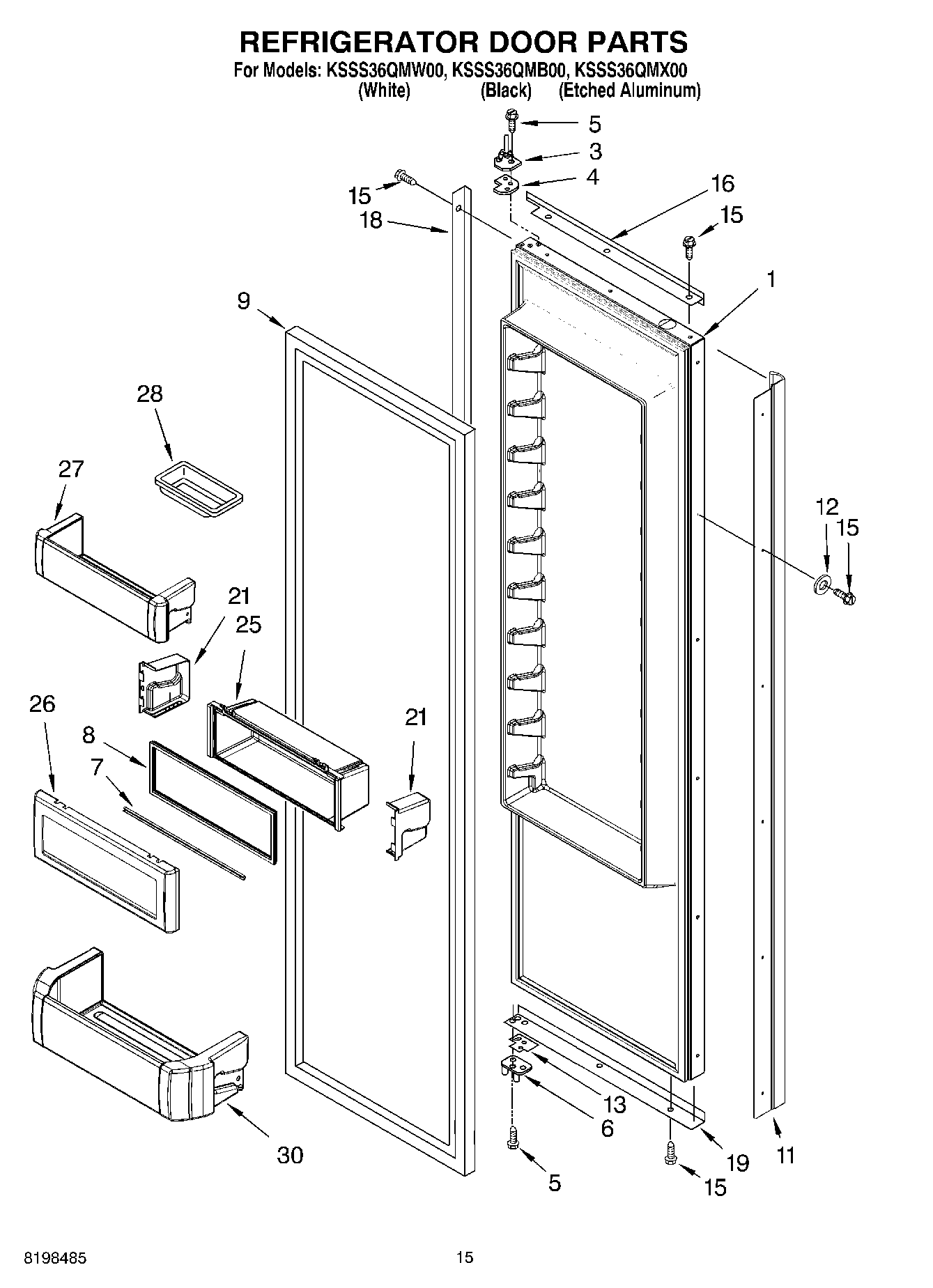

KSSS36QMW00 10 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:32:46+00:00KSSS36QMW00 10 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | LW10193489 Whirlpool Refrigerator Black Foam In Place Door |
| 3 | W11724512 Whirlpool Door Hinge |
| 4 | Spacer-Hinge, Top |
| 5 | W11474472 Whirlpool Screw |
| 6 | 2302878 Whirlpool Refrigerator Door Hinge |
| 7 | 2222795 Whirlpool Refrigerator Rail |
| 8 | WP2222981 Whirlpool Refrigerator Gasket |
| 9 | WP2266901 Whirlpool Door Gasket |
| 11 | Handle, Door (Etched Aluminum) |
| 11 | Handle, Door (Black) |
| 11 | Handle, Door (White) |
| 12 | Washer |
| 13 | Door Spacer, Bottom |
| 15 | W10851443 Whirlpool Refrigerator Screw |
| 15 | WP8281250 Whirlpool Refrigerator Screw |
| 15 | Screw 8-15 x 1/2 (White) |
| 16 | Trim, Door (Top) (Etched Aluminum) |
| 16 | TRIM-DOOR, TOP (WHITE) |
| 16 | TRIM-DOOR, TOP (BLACK) |
| 18 | Trim, Side (Etched Aluminum) |
| 18 | Trim (Side) (White) |
| 18 | Trim, Side (Black) |
| 19 | Trim (Bottom) (Black) |
| 19 | Trim (Bottom) (Etched Aluminum) |
| 19 | Trim (Bottom) (White) |
| 21 | WPW10323173 Whirlpool Refrigerator Retainer End Cap |
| 21 | WPW10323172 Whirlpool Refrigerator Retainer End Cap |
| 25 | WPW10323035 Whirlpool Refrigerator Cantilever Bin |
| 26 | WPW10131132 Whirlpool Refrigerator Door Compressor |
| 27 | W10323598 Whirlpool Refrigerator Cantilever Bin |
| 28 | Butter Tray |
| 30 | W10323746 Whirlpool Refrigerator Cantilever Bin |
