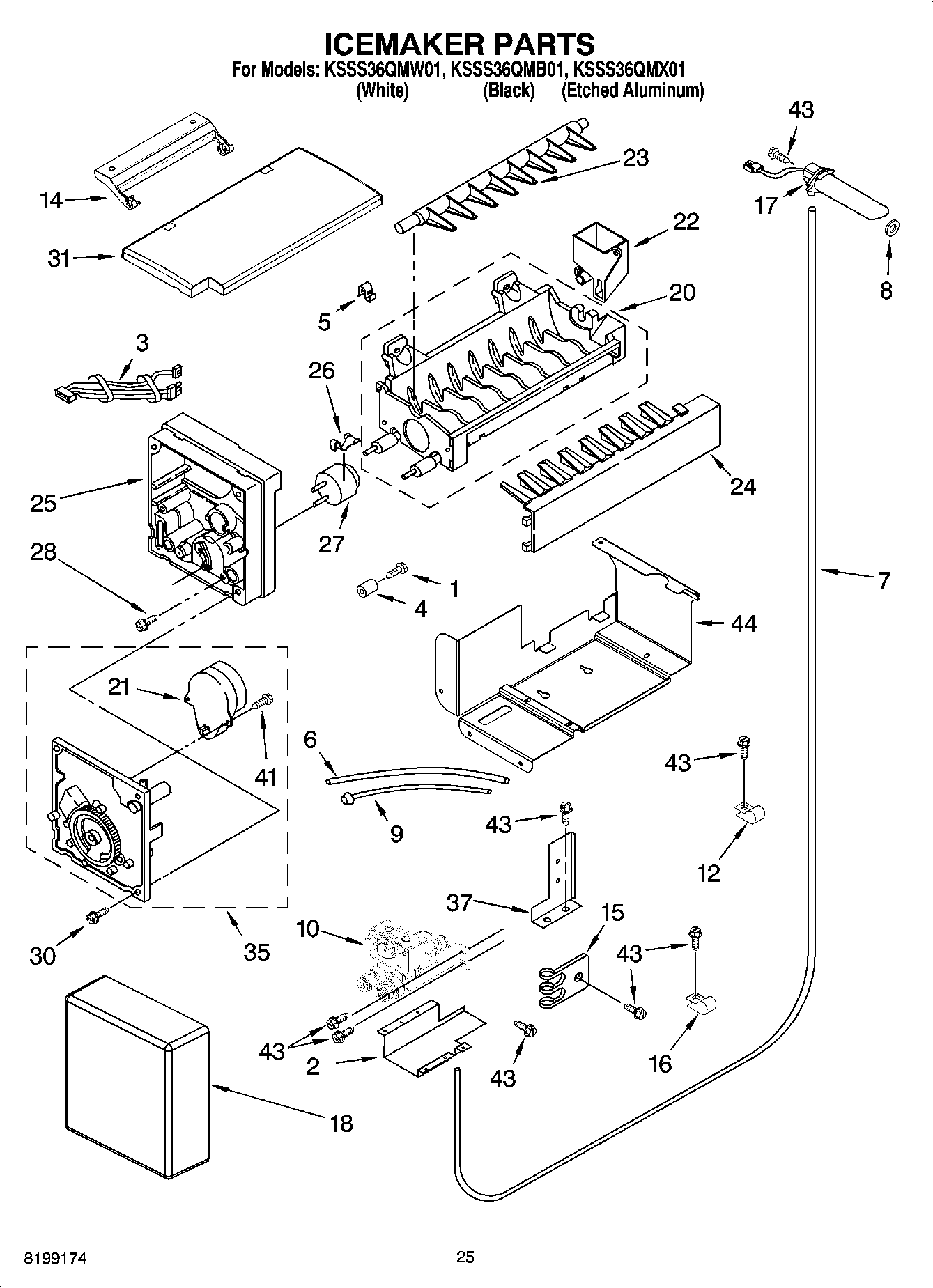

KSSS36QMX01 15 – ICEMAKER PARTS

Products

PositionProduct
2Cover, Bottom
3Wire Assembly, Icemaker
42252354 Whirlpool Spacer Assembly
5WP628379 Whirlpool Refrigerator Clip
6Tube, Filter Inlet
7Water Inlet Tube Assembly
8Seal Gasket
9W11533506 Whirlpool Refrigerator Water Tube
10Valve, Solenoid
12W10833902 Whirlpool Refrigerator Clamp
14WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
15WP488366 Whirlpool Refrigerator Clamp
16Clamp, Tube
17W10460127 Whirlpool Refrigerator Inlet Tube
18Cover
20WPW10122550 Whirlpool Refrigerator Ice Mold
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22WP628356 Whirlpool Refrigerator Fill Cup
23626753 Whirlpool Refrigerator Ejector Arm
24W10297245 Whirlpool Refrigerator Arm Stripper
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W10504752 Whirlpool Refrigerator Ice Door
37Water Valve Mounting Bracket
41489136 Whirlpool Refrigerator Screw
43W11624204 Whirlpool Screw
442300167 Whirlpool Bracket
100Front Panel Kit (Stainless Steel)
100FOLLOWING PARTS NOT ILLUSTRATED
100Front Panel Kit (Black)
100Front Panel Kit (White)
100Ice Container Assembly
100Black Acrylic Static Cleaner
100WPW10277449 Whirlpool Refrigerator Ice Maker
100(Optional Parts Only)
