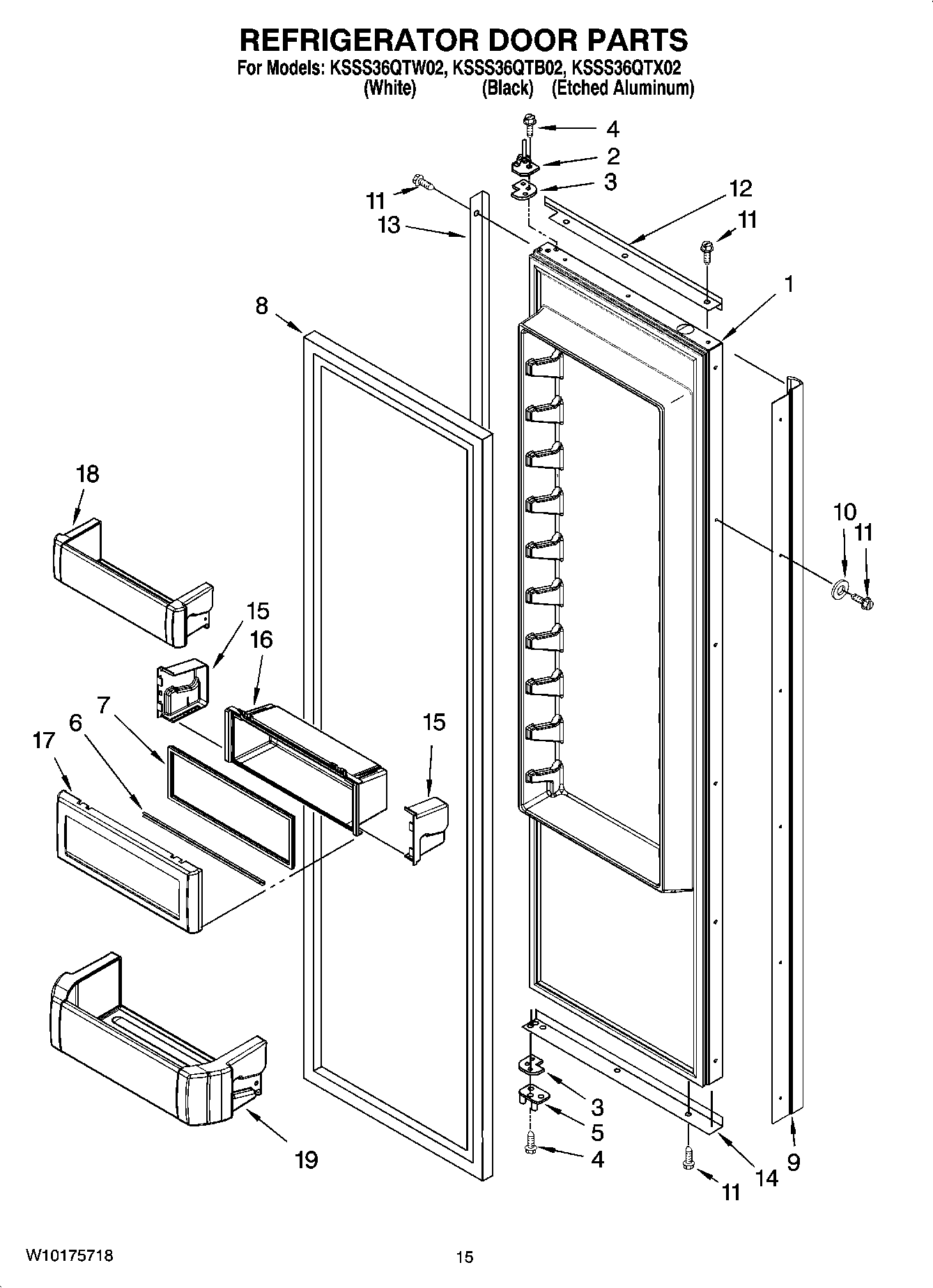

KSSS36QTB02 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193489 Whirlpool Refrigerator Black Foam In Place Door
2	W11724512 Whirlpool Door Hinge
3	W11673500 Whirlpool Door Hinge
4	W11474472 Whirlpool Screw
5	2302878 Whirlpool Refrigerator Door Hinge
6	2222795 Whirlpool Refrigerator Rail
7	WP2222981 Whirlpool Refrigerator Gasket
8	WP2266901 Whirlpool Door Gasket
9	Handle, Door (Black)
9	Handle, Door (White)
9	Handle, Door
10	Washer
11	Screw 8-15 x 1/2 (White)
12	TRIM-DOOR, TOP (WHITE)
12	TRIM-DOOR, TOP (BLACK)
12	Trim (Top)
13	Trim-Door, Side
13	Trim, Side (Black)
13	Trim (Side) (White)
14	Trim (Bottom) (Black)
14	Trim (Bottom) (White)
14	Door Trim, Bottom
15	WPW10323172 Whirlpool Refrigerator Retainer End Cap
15	WPW10323173 Whirlpool Refrigerator Retainer End Cap
16	WPW10323035 Whirlpool Refrigerator Cantilever Bin
17	WPW10131132 Whirlpool Refrigerator Door Compressor
18	W10323598 Whirlpool Refrigerator Cantilever Bin
19	W10323746 Whirlpool Refrigerator Cantilever Bin
