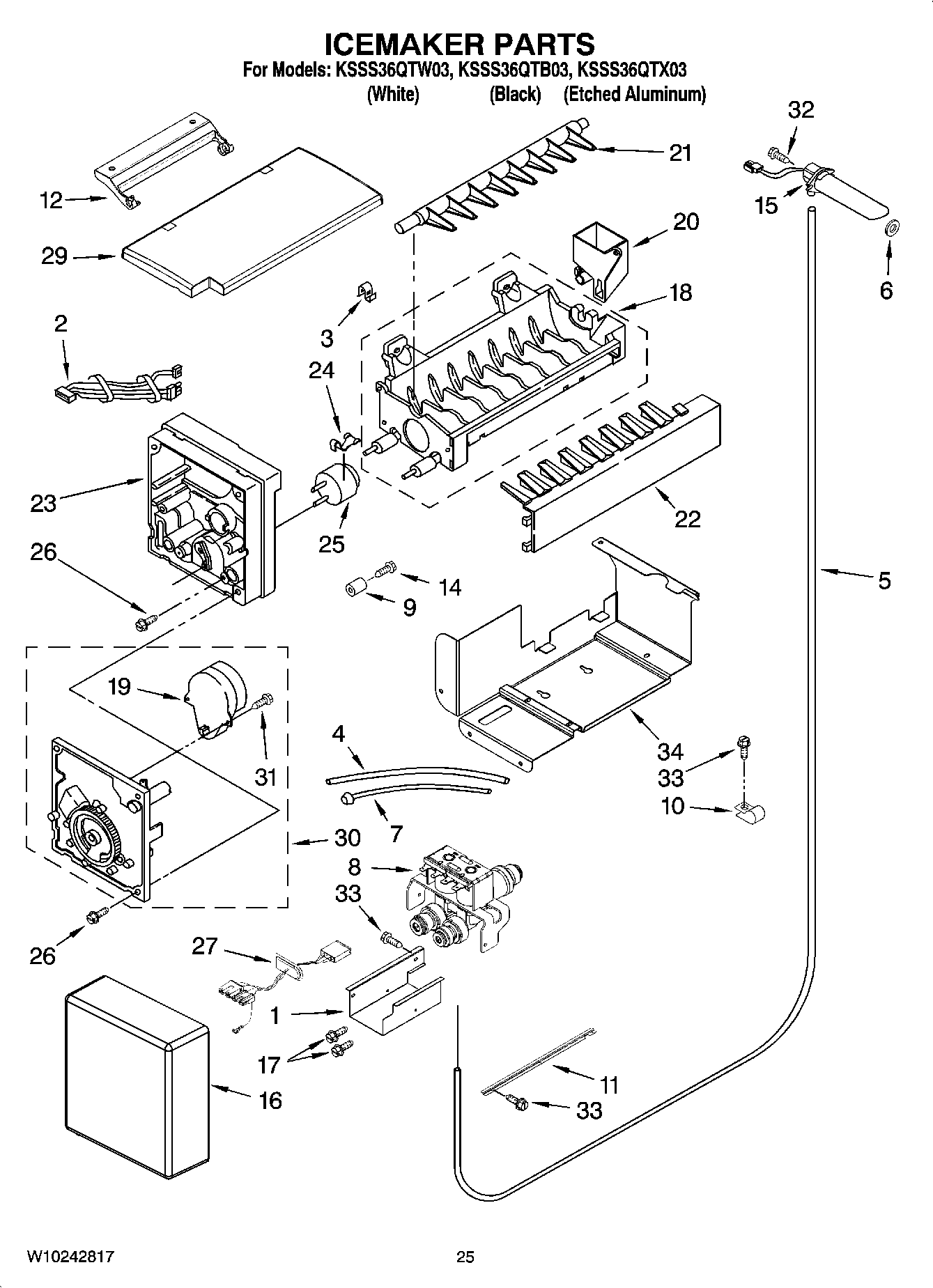

KSSS36QTB03 15 – ICEMAKER PARTS

Products

Position	Product
	W10129081 Whirlpool Refrigerator Handle
	Cleaner, Stainless Steel
	ASSEMBLY, ICE CONTAINER
	Following Parts Not Illustrated (Optional Parts Only)
1	Shield, Valve
2	WP2187467 Whirlpool Refrigerator Wire Harness
3	Clamp
4	W11565275 Whirlpool Refrigerator Water Tube
5	Water Tube
6	Seal Gasket
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159843 Whirlpool Refrigerator Inlet Valve
9	2252354 Whirlpool Spacer Assembly
10	W10833902 Whirlpool Refrigerator Clamp
11	Support, Valve
12	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
14	WP489474 Whirlpool Refrigerator Screw
15	W10460127 Whirlpool Refrigerator Inlet Tube
16	Cover
17	WP489128 Whirlpool Refrigerator Screw
18	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
19	Motor, (Not Serviceable Order Item 30)
20	WPW10272168 Whirlpool Refrigerator Water Fill Cup
21	WP627843 Whirlpool Refrigerator Ejector Arm
22	W10297244 Whirlpool Refrigerator Arm Strip
23	WP2195914 Whirlpool Refrigerator Ice Maker Housing
24	WP2315522 Whirlpool Refrigerator Clip
25	WP627985 Whirlpool Icemaker Cycling Thermostat
26	8533917 Whirlpool Refrigerator Screw
27	W10139199 Whirlpool Refrigerator Wire Harness
29	W10504752 Whirlpool Refrigerator Ice Door
30	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
31	WP681249 Whirlpool Screw Assembly
32	WP489464 Whirlpool Refrigerator Screw
33	W11624204 Whirlpool Screw
34	2300167 Whirlpool Bracket
100	WPW10277449 Whirlpool Refrigerator Ice Maker
