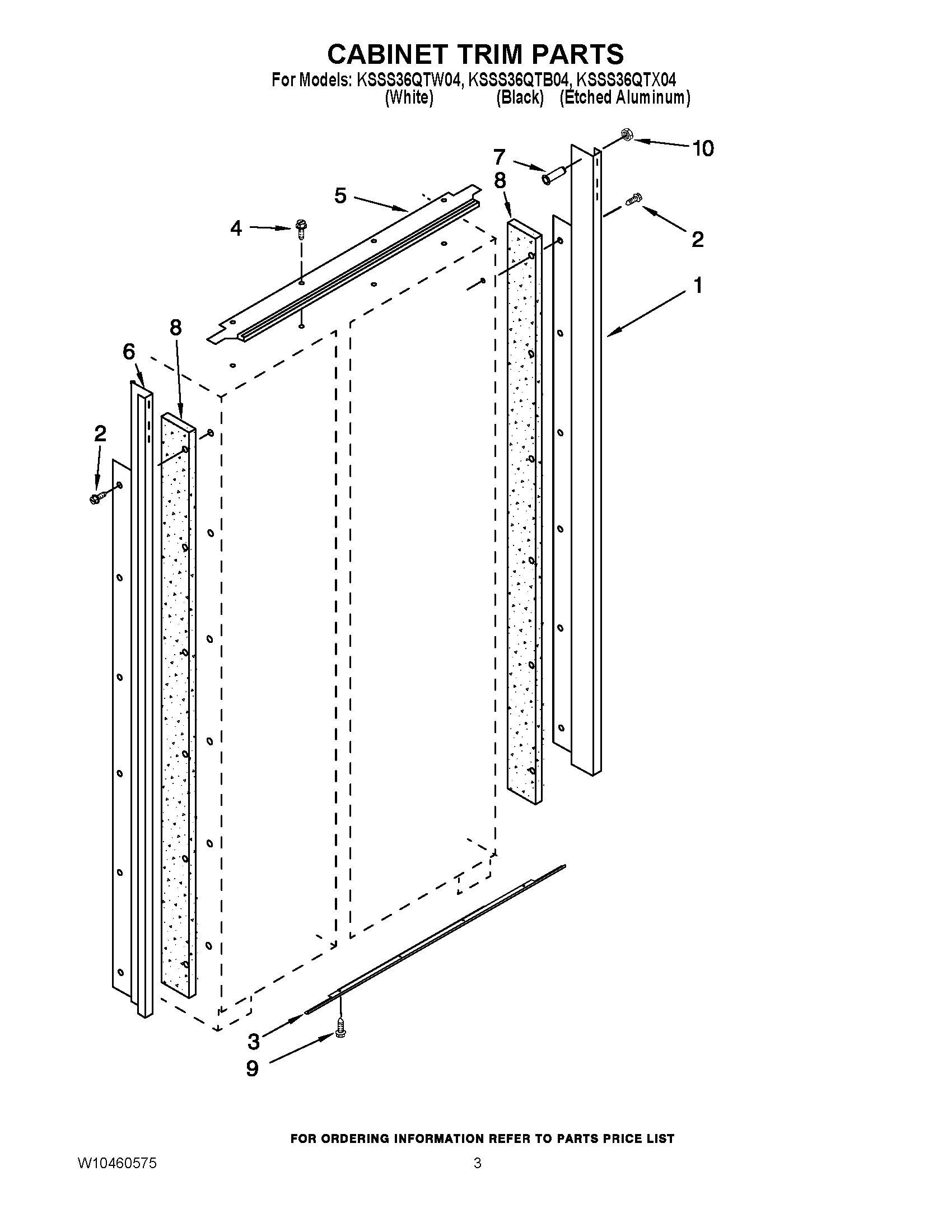

KSSS36QTB04 02 – CABINET TRIM PARTS

KSSS36QTB04 02 – CABINET TRIM PARTS

Written by

in

KSSS36QTB04 02 – CABINET TRIM PARTS

Products

PositionProduct
1Cabinet, Trim (Right Side) (Black)
1CABINET TRIM, RIGHT SIDE
1Cabinet, Trim (Right Side) (White)
2WP1163283 Whirlpool Air Conditioner Screw
32316686 Whirlpool Refrigerator Cabinet Trim
4W11624204 Whirlpool Screw
5Cabinet, Trim Top (Black)
5TRIM, CABINET (TOP) (ALUMINUM)
5Cabinet, Trim Top (White)
6CABINET TRIM, LEFT SIDE
6Cabinet Trim (Left Side) (White)
6Cabinet Trim (Left Side) (Black)
8Seal, Side Trim
9SCREW
10WPW10121451 Whirlpool Refrigerator Insert
