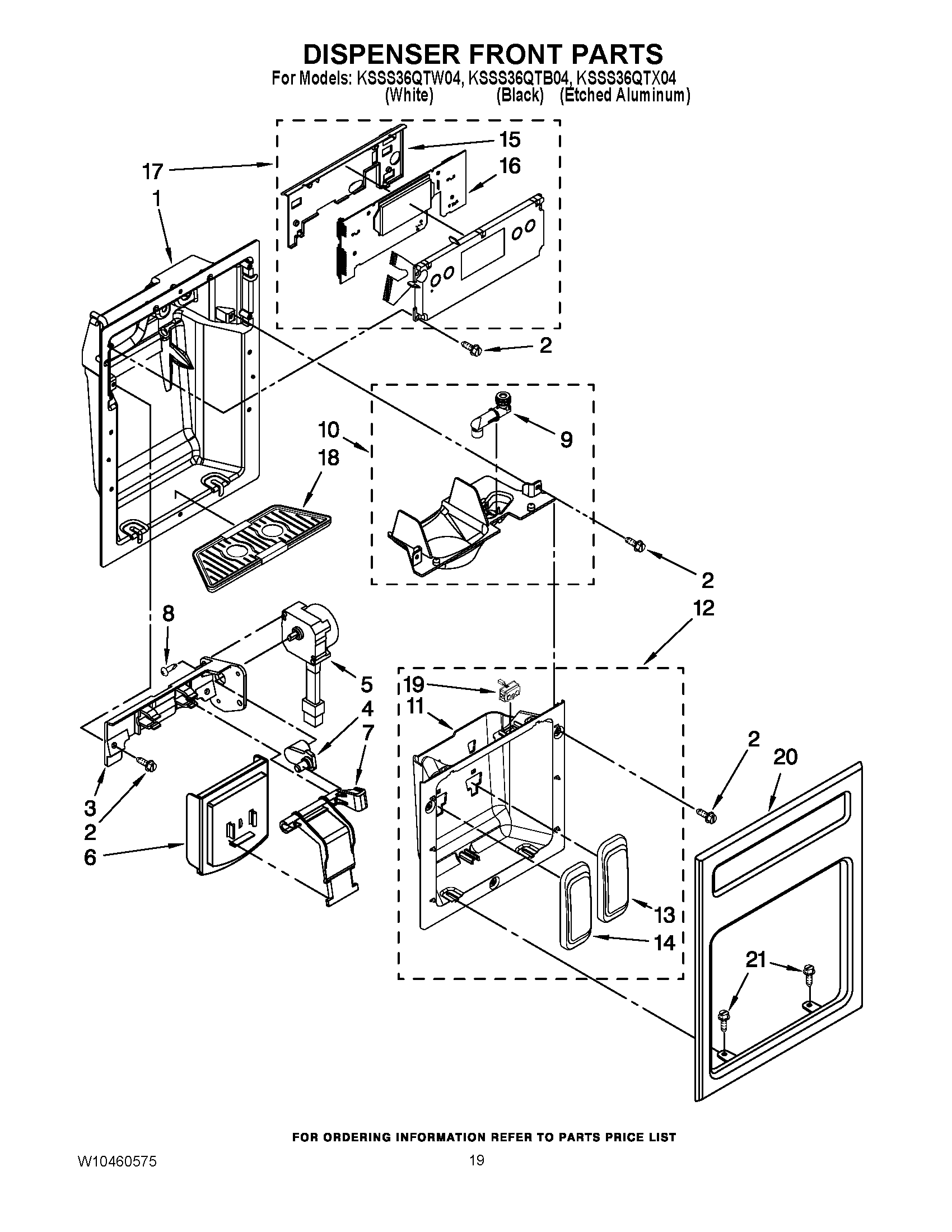

KSSS36QTB04 12 – DISPENSER FRONT PARTS

Products

Position	Product
2	W11624204 Whirlpool Screw
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10205979 Whirlpool Refrigerator Ice Door Motor
6	WP2180353 Whirlpool Dispenser Door
7	WPW10546285 Whirlpool Refrigerator Motor
8	WP4449745 Whirlpool Screw
9	WP2305235 Whirlpool Refrigerator Spigot
10	2318017 Whirlpool Refrigerator Separator
11	CABINET (NOT A SERVICEABLE PART)
12	WPW10260622 Whirlpool Refrigerator Front Cover
12	W10260620 Whirlpool Refrigerator Front Cover
12	HOUSING ASSEMBLY (WHITE)
13	Pad, Water (White)
14	W10133603 Whirlpool Dispenser Actuator Pad Set
14	Pad, Ice (White)
15	2305219 Whirlpool Refrigerator Cover
16	WP2321746 Whirlpool Refrigerator Electronic Control Board
17	WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
18	Tray, Housing (White)
18	W11177738 Whirlpool Refrigerator Drip Tray
19	W10222215 Whirlpool Refrigerator Light Indicator
20	Front, Cover (Black)
20	Front, Cover (Universal Silver)
20	Front, Cover (White)
21	W10759522 Whirlpool Screw
