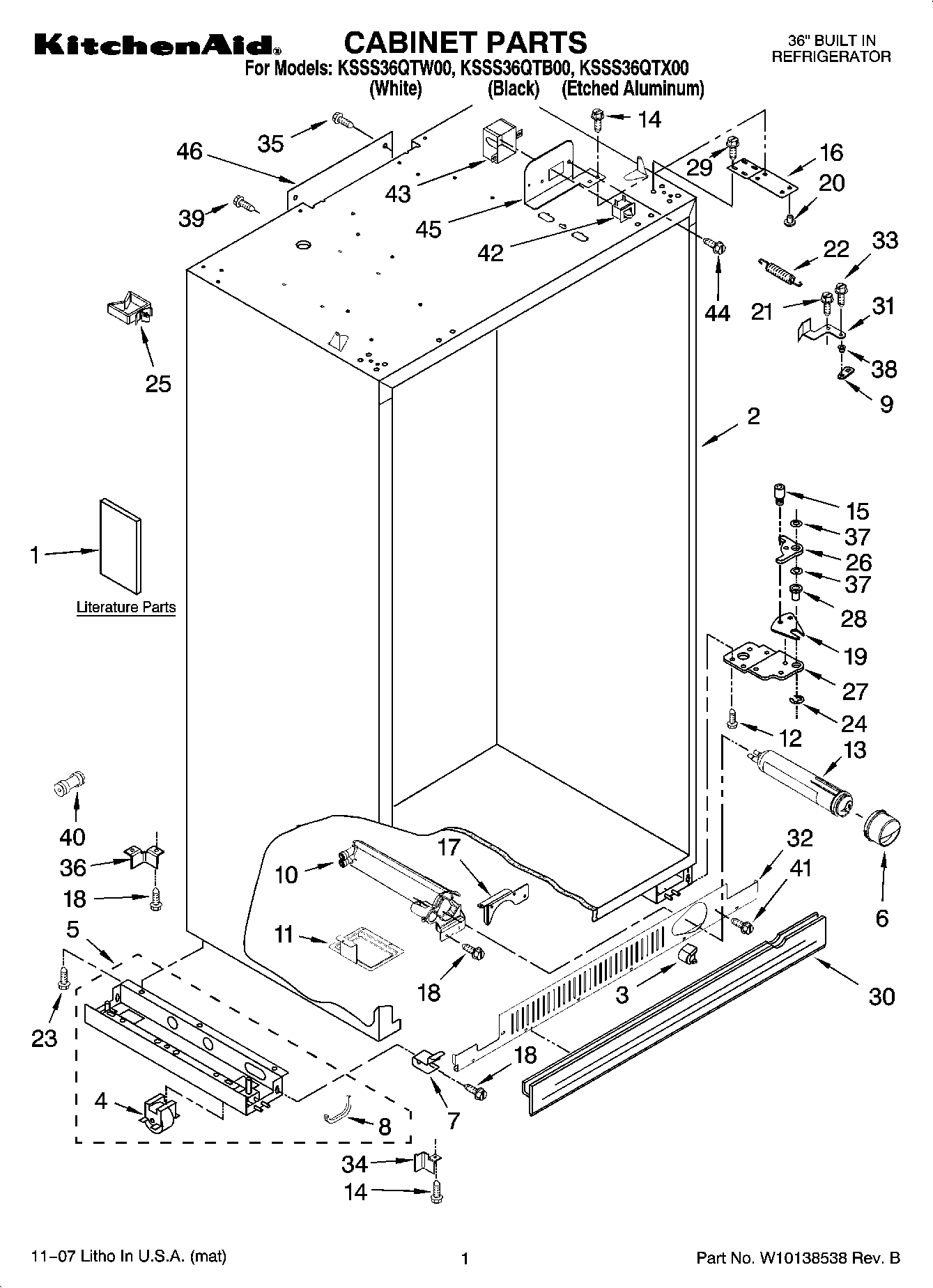

KSSS36QTW00 01 – CABINET PARTS

Products

Position	Product
1	Icemaker and Ingredient Care Center Service Sheet
1	Use & Care Guide
1	Main Control Service Sheet
1	Energy Guide
1	Service & Wiring Sheet
1	Installation Instructions
2	Cabinet, (Not A Serviceable Part)
3	WP2260503B Whirlpool Refrigerator Button
4	WPW10138054 Whirlpool Refrigerator Cabinet Roller
5	W10860448 Whirlpool Refrigerator Support
5	W10860229 Whirlpool Refrigerator Support
6	WP2260518B Whirlpool Water Filter Cap
7	W10839844 Whirlpool Refrigerator Bracket
8	2307584 Whirlpool Refrigerator Grommet
9	Cam-Closer, Door
10	WPW10121140 Whirlpool Refrigerator Housing
11	2318189 Whirlpool Refrigerator Drip Pan
12	Screw
13	FILTER 3-SINGLE TEAL
14	WP489399 Whirlpool Refrigerator Screw
15	SCREW
16	2257644 Whirlpool Refrigerator Door Hinge
17	W10674648 Whirlpool Refrigerator Bracket
18	WP489464 Whirlpool Refrigerator Screw
19	WP2004994 Whirlpool Refrigerator Hinge Bushing
20	Bushing
21	Screw
22	WP2004517 Whirlpool Refrigerator Spring
23	W11624204 Whirlpool Screw
24	WP489236 Whirlpool Refrigerator Ring
25	CLIP, TUBE
26	Gap, Cover Assembly (Bottom)
27	W10527053 Whirlpool Refrigerator Door Hinge
27	WP2006780 Whirlpool Refrigerator Door Hinge
28	WP2302876 Whirlpool Refrigerator Hinge Bushing
29	W11189635 Whirlpool Refrigerator Screw
30	WP2209024B Whirlpool Refrigerator Front Grille
30	SKIRT-GRILLE, BOTTOM (WHITE)
31	W10847927 Whirlpool Refrigerator Extension
31	W11298172 Whirlpool Refrigerator Extension
32	Grille Bottom, Front (White)
32	2325184B Whirlpool Refrigerator Front Grille
33	Screw
34	2006556 Whirlpool Refrigerator Bracket
34	2006616 Whirlpool Refrigerator Bracket
35	WP489069 Whirlpool Compactor Screw
36	2006617 Whirlpool Refrigerator Bracket
37	WP2006346 Whirlpool Refrigerator Washer
38	WP2316859 Whirlpool Refrigerator Bushing
39	WP1163283 Whirlpool Air Conditioner Screw
40	WP2300868 Whirlpool Refrigerator Fitting
40	WP4373559 Whirlpool Fitting
41	WP8281163 Whirlpool Refrigerator Screw
42	W11384469 Whirlpool Door Switch
42	W11457217 Whirlpool Refrigerator Rocker Switch Combination
43	2215938 Whirlpool Refrigerator Switch Cover
44	WP965173 Whirlpool Dishwasher Screw
45	2221096 Whirlpool Refrigerator Bracket
45	2221097 Whirlpool Refrigerator Bracket
46	2215612 Whirlpool Refrigerator Duct Cover
