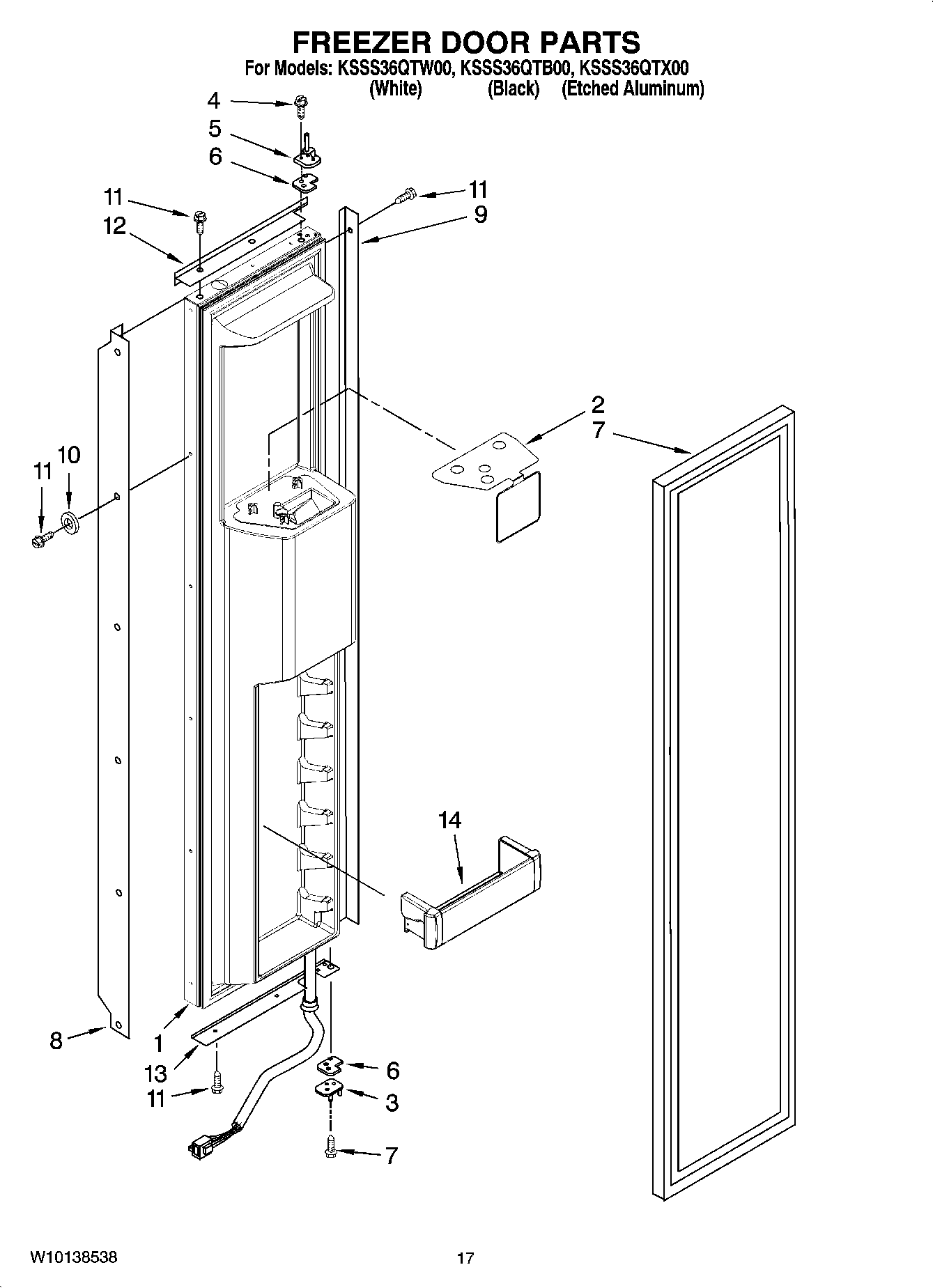

KSSS36QTW00 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 14) (White)
1Freezer Door (Includes 14) (Black)
1FREEZER DOOR
2Safety Barrier
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7W11624976 Whirlpool Refrigerator FIP Gasket
8Handle, Door (White)
8Handle, Door
8Handle, Door (Black)
9Trim (Side) (White)
9Trim (Side) (Black)
9Trim-Door, Side
10Washer
11Screw 8-15 x 1/2 (White)
12TRIM-DOOR, TOP (WHITE)
12TRIM-DOOR, TOP (BLACK)
12Trim (Top)
13Trim (Bottom)
13Trim (Bottom) (White)
13Trim (Bottom) (Black)
14W10323601 Whirlpool Refrigerator Cantilever Bin
