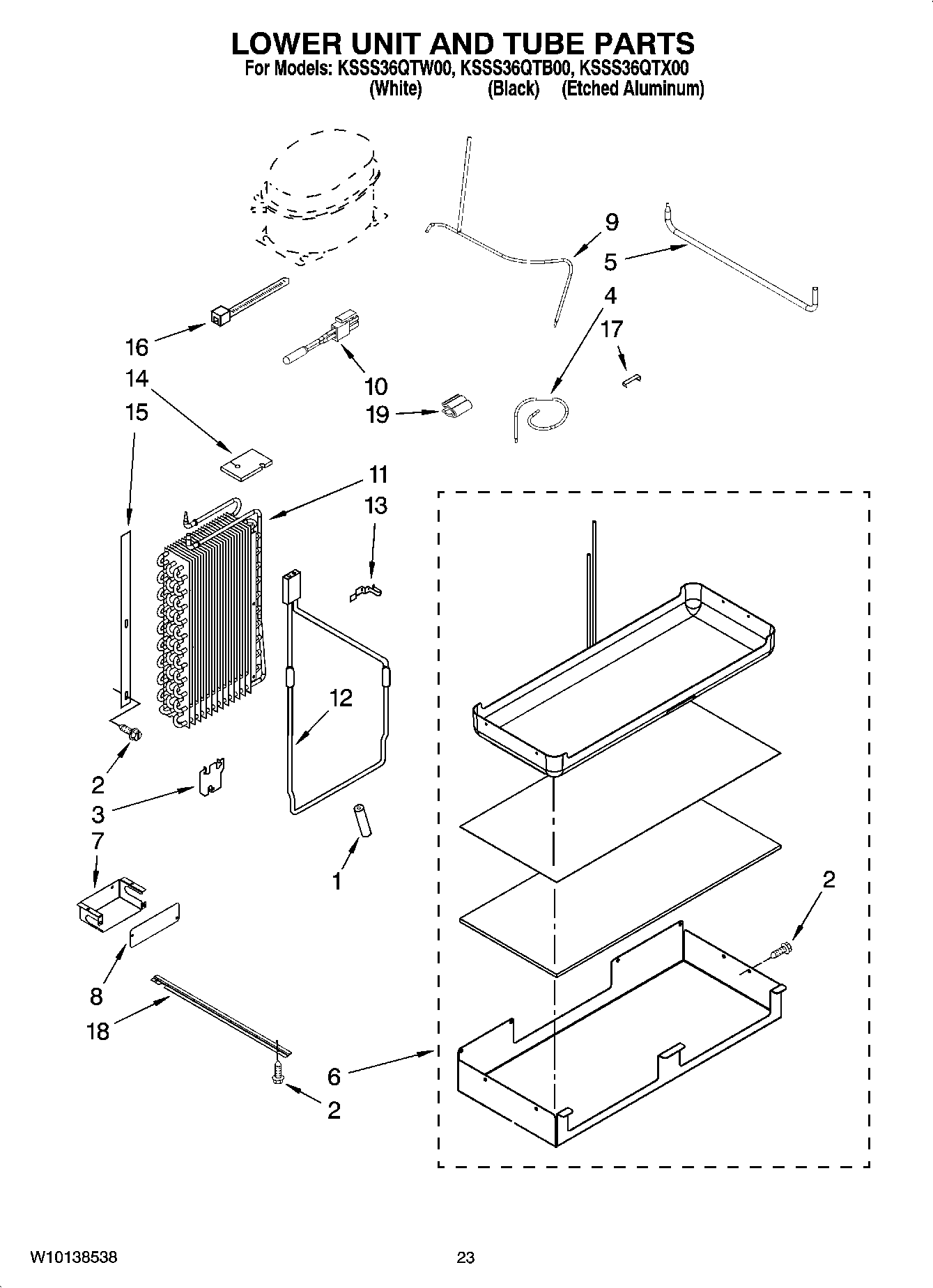

KSSS36QTW00 14 – LOWER UNIT AND TUBE PARTS

KSSS36QTW00 14 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSS36QTW00 14 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
12215648 Whirlpool Refrigerator Dampener
2W11624204 Whirlpool Screw
3Bracket
4Tube, Suction
5W10388653 Whirlpool Refrigerator Tube
6WPW10281063 Whirlpool Refrigerator Heater Pan
7Cover, Wiring
8Cover, Box
9Tube, Discharge
10WP2188820 Whirlpool Refrigerator Thermistor
11WP2306092 Whirlpool Refrigerator Evaporator
12Heater, Defrost
131113048 Whirlpool Refrigerator Clamp
148201798 Whirlpool Refrigerator Fan Block
15Gasket, Evaporator
16WPW10339879 Whirlpool Wire Tie
17W10169509 Whirlpool Refrigerator Clip
182320554 Whirlpool Bracket
199791833 Whirlpool Refrigerator Clip
