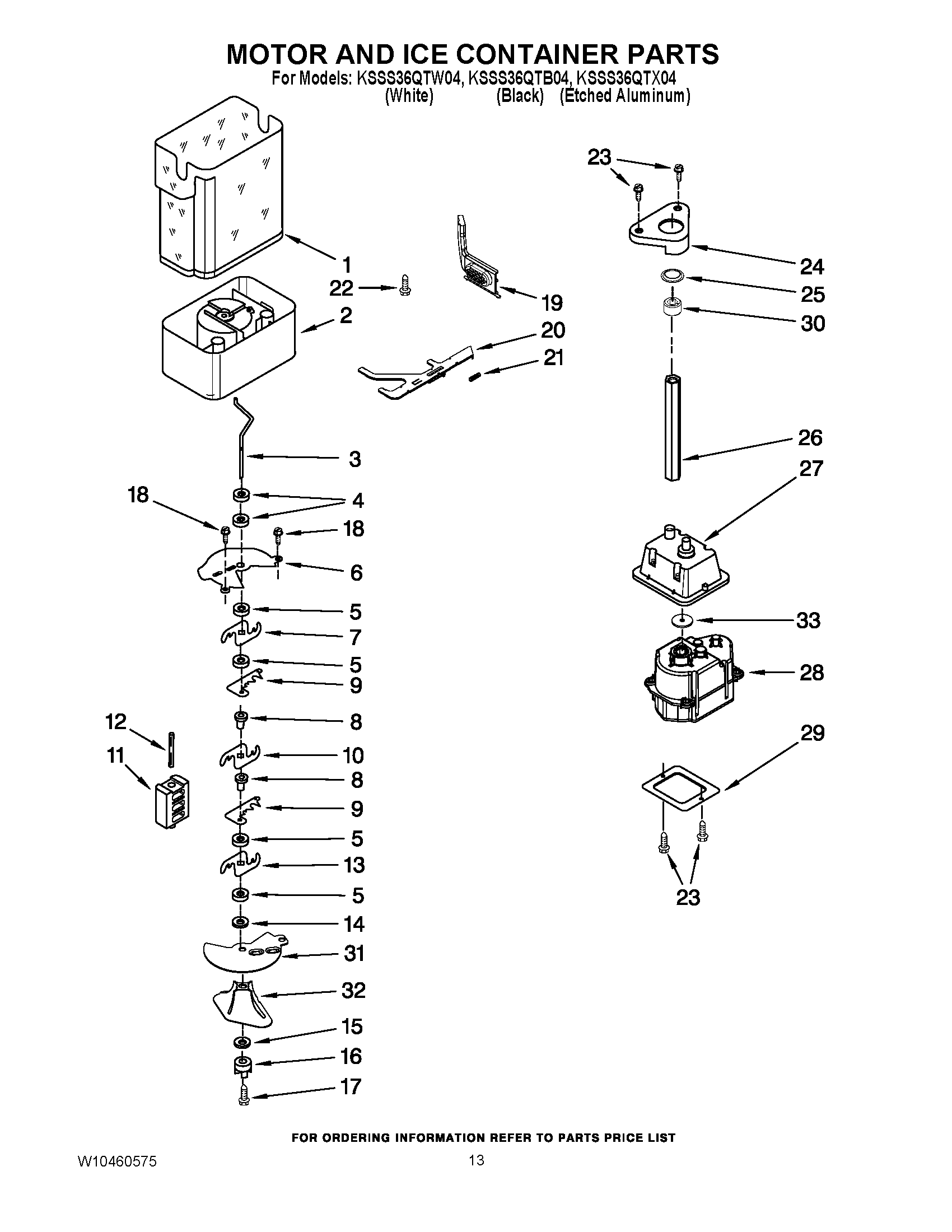

KSSS36QTW04 09 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	Ice Bin
2	W10134781 Whirlpool Refrigerator Ice Bin
3	W10852517 Whirlpool Refrigerator Ice Auger
4	Washer
5	WP1119007 Whirlpool Refrigerator Spacer
6	Cover, Crusher
7	BLADE, ROTARY C
8	WP1119005 Whirlpool Refrigerator Spacer
9	Blade, Fixed
10	W10341943 Whirlpool Blade
11	2317239 Whirlpool Refrigerator Blade Block
12	489229 Whirlpool Refrigerator Roll Pin
13	BLADE, ROTARY A
14	WP489235 Whirlpool Refrigerator Washer
15	WP2198661 Whirlpool Refrigerator Washer
16	W11629923 Whirlpool Coupling
17	WP8281164 Whirlpool Refrigerator Screw
18	WP3400065 Whirlpool Refrigerator Screw
19	WP2252265 Whirlpool Refrigerator Ice Bin Button
20	W10134784 Whirlpool Refrigerator Bin Latch
21	WP2198608 Whirlpool Refrigerator Spring
22	2198671 Whirlpool Refrigerator Screw
23	WP8281163 Whirlpool Refrigerator Screw
24	WP2188919 Whirlpool Refrigerator Holder
25	WP2198628 Whirlpool Door Seal
26	WP2318082 Whirlpool Ice Ejector Bar
27	W11404931 Whirlpool Refrigerator Cover
28	W10271509 Whirlpool Refrigerator Ice Maker Auger Motor
29	2318028 Whirlpool Refrigerator Cover
30	WP2315559 Whirlpool Motor Coupling
31	2317250 Whirlpool Refrigerator Divider
32	2317243 Whirlpool Refrigerator Wiper
33	WPW10254073 Whirlpool Refrigerator Washer
