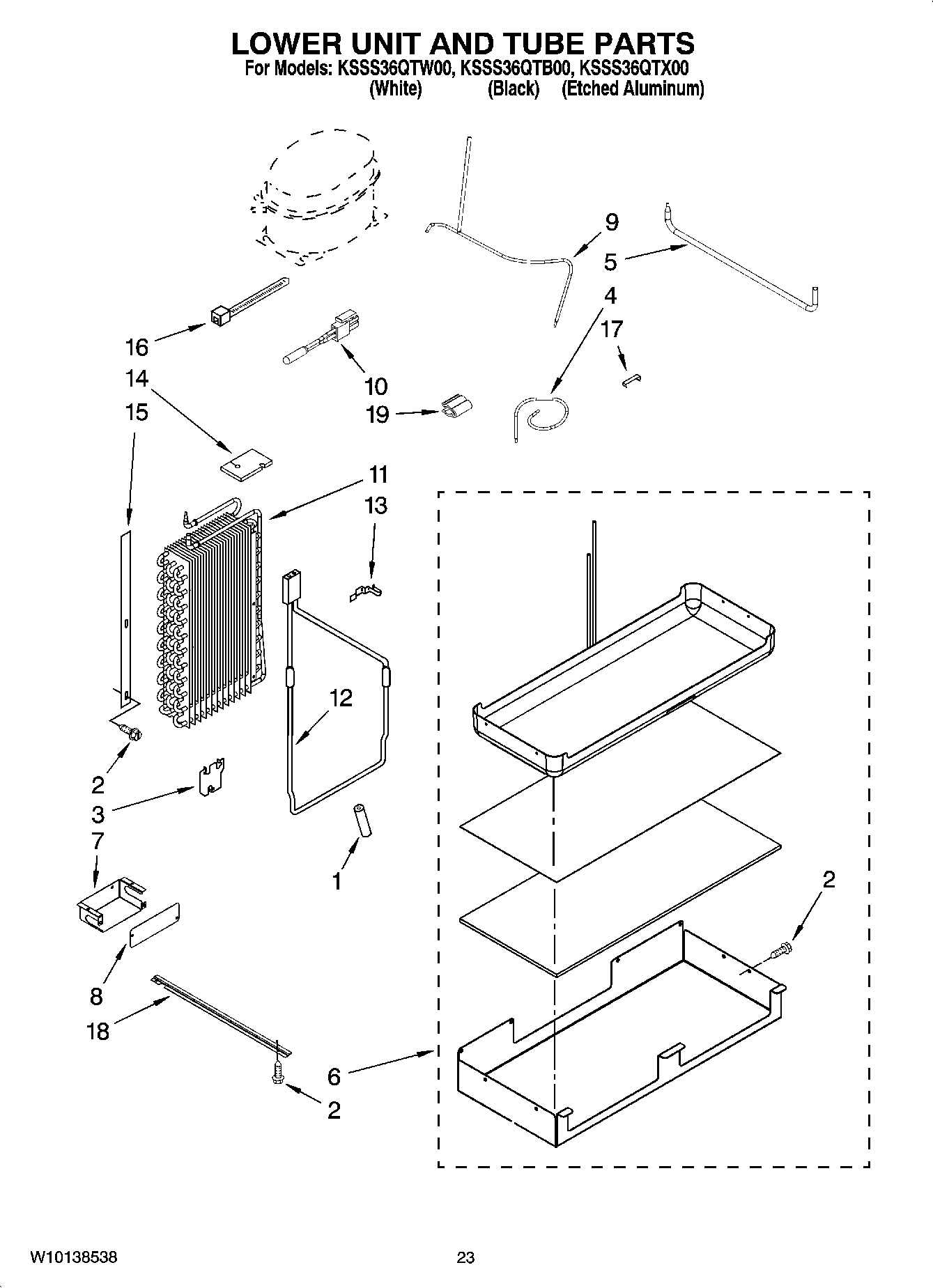

KSSS36QTX00 14 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	2215648 Whirlpool Refrigerator Dampener
2	W11624204 Whirlpool Screw
3	Bracket
4	Tube, Suction
5	W10388653 Whirlpool Refrigerator Tube
6	WPW10281063 Whirlpool Refrigerator Heater Pan
7	Cover, Wiring
8	Cover, Box
9	Tube, Discharge
10	WP2188820 Whirlpool Refrigerator Thermistor
11	WP2306092 Whirlpool Refrigerator Evaporator
12	Heater, Defrost
13	1113048 Whirlpool Refrigerator Clamp
14	8201798 Whirlpool Refrigerator Fan Block
15	Gasket, Evaporator
16	WPW10339879 Whirlpool Wire Tie
17	W10169509 Whirlpool Refrigerator Clip
18	2320554 Whirlpool Bracket
19	9791833 Whirlpool Refrigerator Clip
