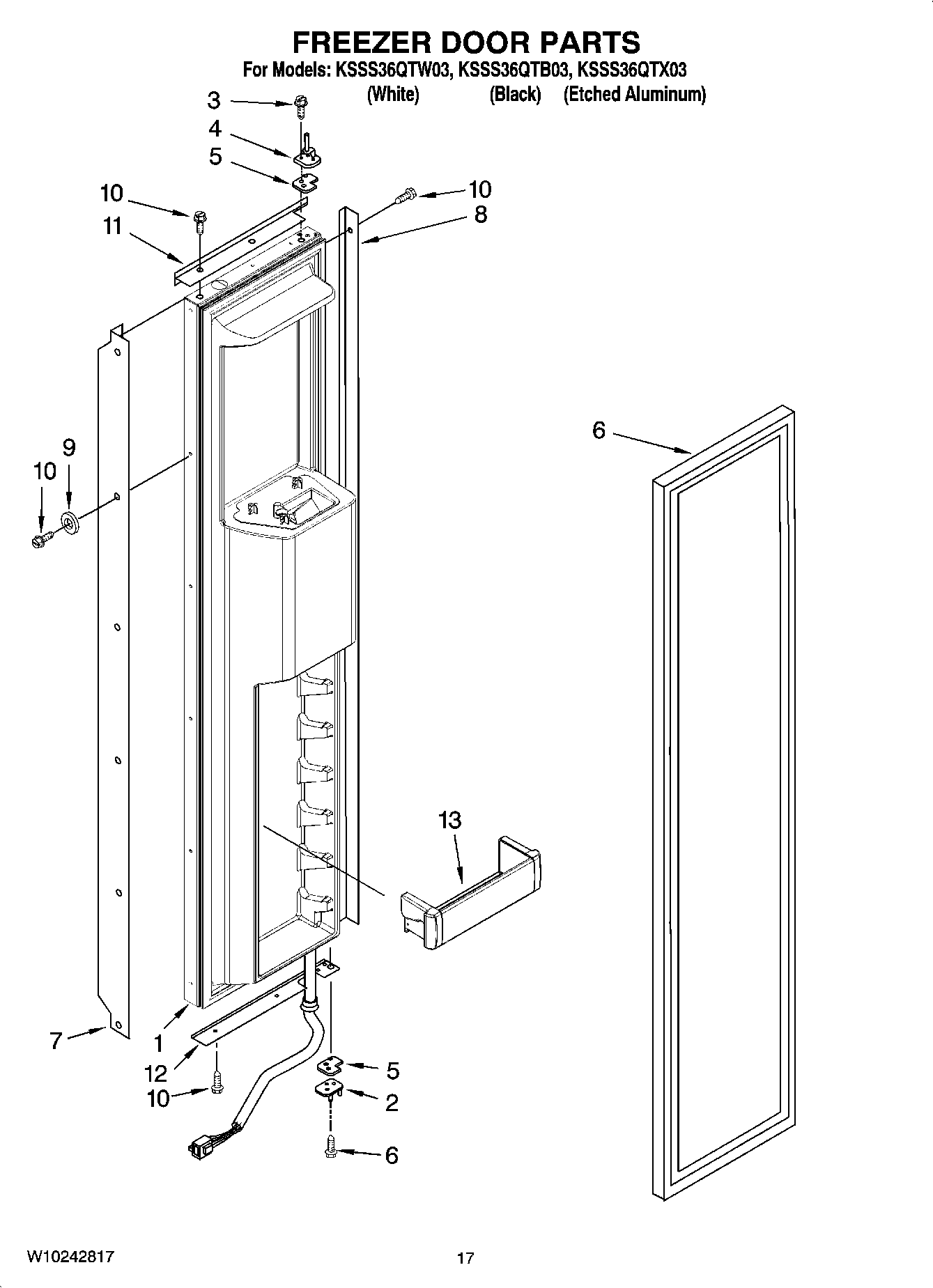

KSSS36QTX03 11 – FREEZER DOOR PARTS

KSSS36QTX03 11 – FREEZER DOOR PARTS

Written by

in

KSSS36QTX03 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 13) (Black)
1Freezer Door (Includes 13) (White)
1FREEZER DOOR (INCLUDES No.8)
2HINGE-DOOR
3W11474472 Whirlpool Screw
4W11724512 Whirlpool Door Hinge
5W11673500 Whirlpool Door Hinge
6W11624976 Whirlpool Refrigerator FIP Gasket
7Handle, Door (White)
7Handle, Door
7Handle, Door (Black)
8Trim (Side) (White)
8Trim (Side) (Black)
8Trim-Door, Side
9Washer
10Screw 8-15 x 1/2 (White)
11TRIM-DOOR, TOP (WHITE)
11TRIM-DOOR, TOP (BLACK)
11Trim (Top)
12Trim (Bottom)
12Trim (Bottom) (White)
12Trim (Bottom) (Black)
13W10323601 Whirlpool Refrigerator Cantilever Bin
