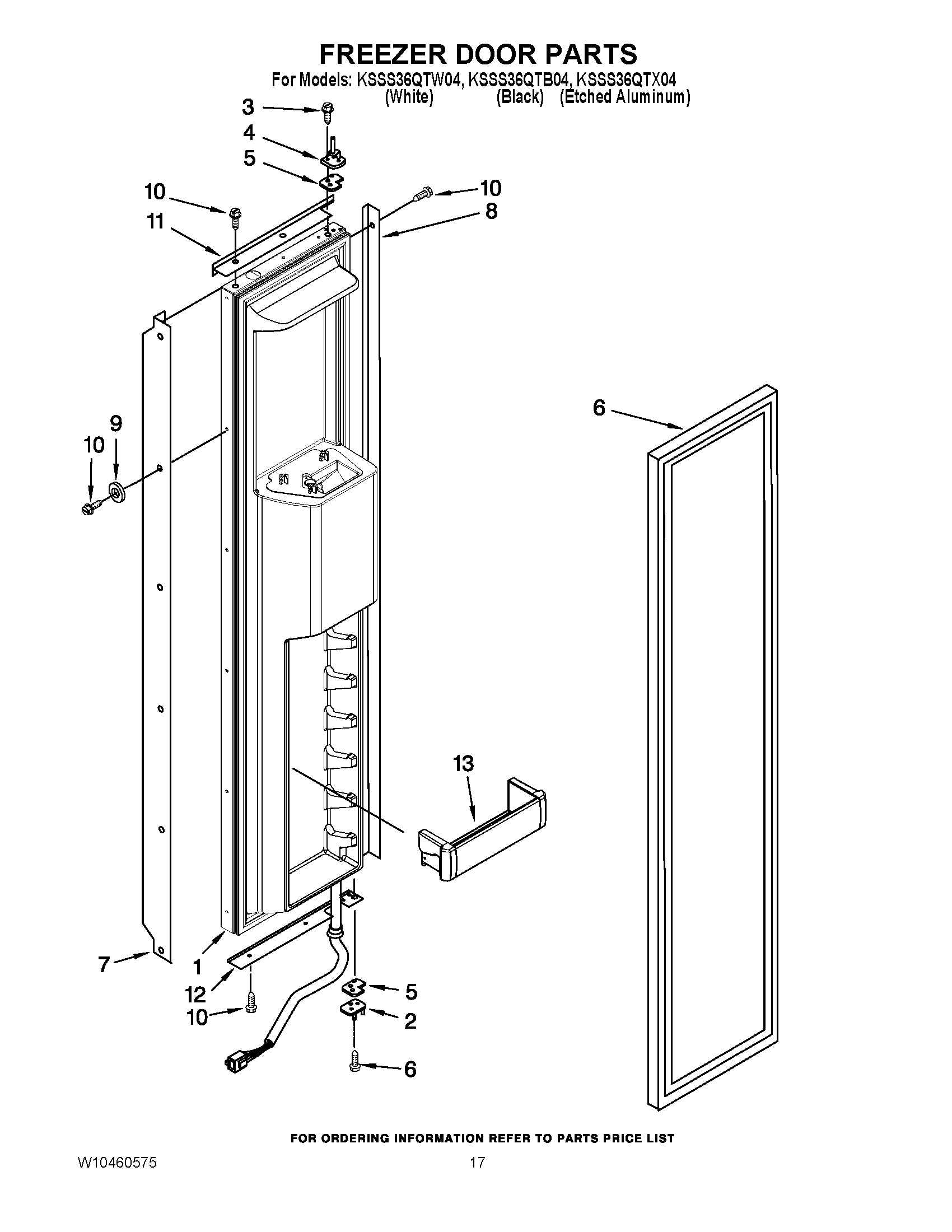

KSSS36QTX04 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.6) (WHITE)
1	FREEZER DOOR (INCLUDES No.6) (BLACK)
1	FREEZER DOOR (INCLUDES No.7)
2	HINGE-DOOR
3	W11474472 Whirlpool Screw
4	W11724512 Whirlpool Door Hinge
5	W11673500 Whirlpool Door Hinge
6	W11624976 Whirlpool Refrigerator FIP Gasket
7	Handle, Door (White)
7	Handle, Door
7	Handle, Door (Black)
8	Trim (Side) (White)
8	Trim (Side) (Black)
8	Trim-Door, Side
9	Washer
10	Screw 8-15 x 1/2 (White)
11	TRIM-DOOR, TOP (WHITE)
11	TRIM-DOOR, TOP (BLACK)
11	Trim (Top)
12	Trim (Bottom)
12	Trim (Bottom) (White)
12	Trim (Bottom) (Black)
13	W10323601 Whirlpool Refrigerator Cantilever Bin
