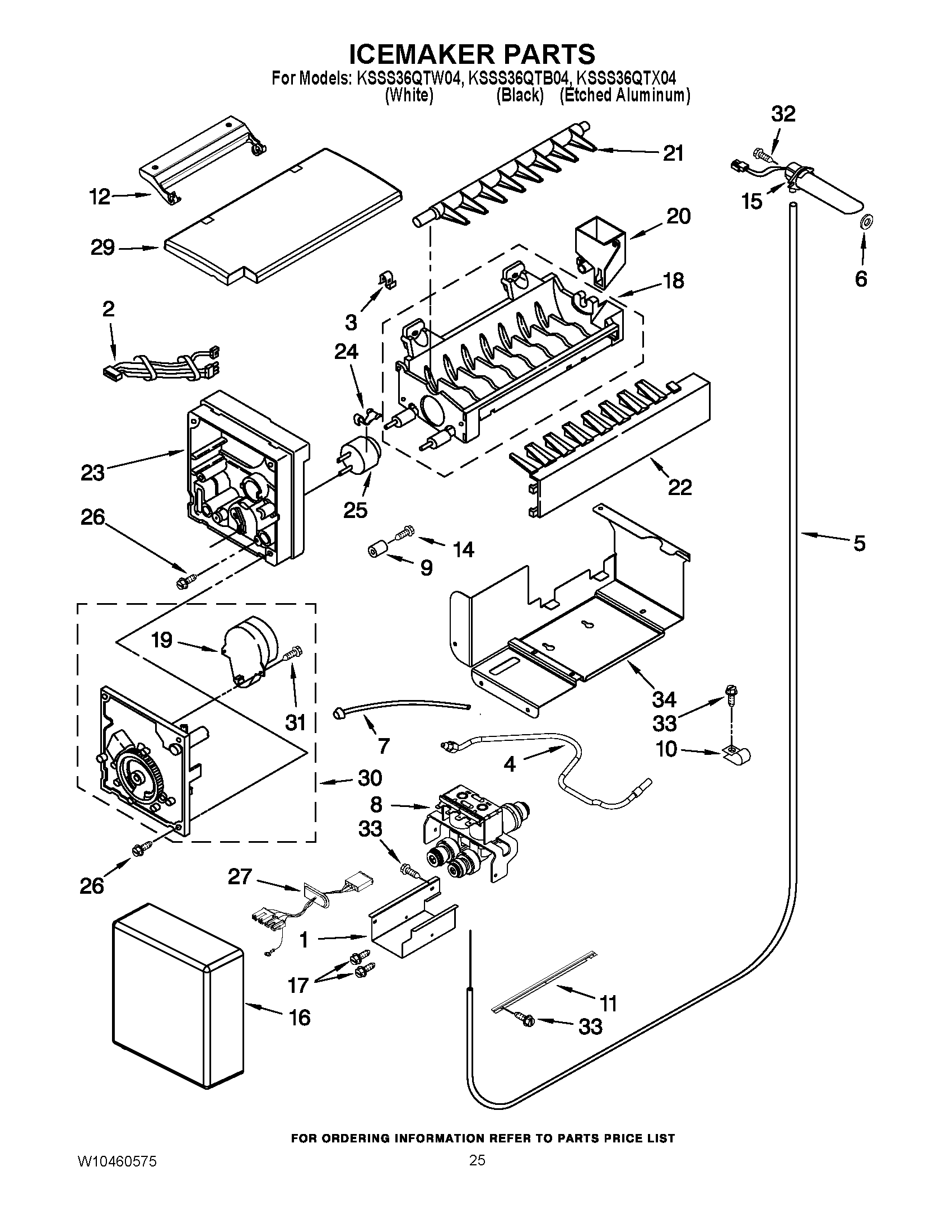

KSSS36QTX04 15 – ICEMAKER PARTS

Products

Position	Product
NI	W10129081 Whirlpool Refrigerator Handle
NI	WPW10519441 Whirlpool Refrigerator Ice Container
NI	ACCESSORIES, SS CLEANER
1	Shield, Valve
2	2310192 Whirlpool Refrigerator Wire Harness
3	WP628379 Whirlpool Refrigerator Clip
4	W11565275 Whirlpool Refrigerator Water Tube
5	Water Tube
6	Seal Gasket
7	W11533506 Whirlpool Refrigerator Water Tube
8	WPW10159843 Whirlpool Refrigerator Inlet Valve
9	2252354 Whirlpool Spacer Assembly
10	W10833902 Whirlpool Refrigerator Clamp
11	Support, Valve
12	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
14	WP489474 Whirlpool Refrigerator Screw
15	W10460127 Whirlpool Refrigerator Inlet Tube
16	WPW10289690 Whirlpool Ice Maker Cover
17	WPW10141604 Whirlpool Screw
18	WPW10122550 Whirlpool Refrigerator Ice Mold
19	CABINET (NOT A SERVICEABLE PART)
20	W10122561 Whirlpool Refrigerator Cup Fill
21	626753 Whirlpool Refrigerator Ejector Arm
22	WPW10272164 Whirlpool Strip Arm
23	WP2195914 Whirlpool Refrigerator Ice Maker Housing
24	WP2315522 Whirlpool Refrigerator Clip
25	WP627985 Whirlpool Icemaker Cycling Thermostat
26	8533917 Whirlpool Refrigerator Screw
27	W10139199 Whirlpool Refrigerator Wire Harness
29	W10504752 Whirlpool Refrigerator Ice Door
30	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
31	WP681249 Whirlpool Screw Assembly
33	W11624204 Whirlpool Screw
34	2300167 Whirlpool Bracket
100	WPW10277449 Whirlpool Refrigerator Ice Maker
