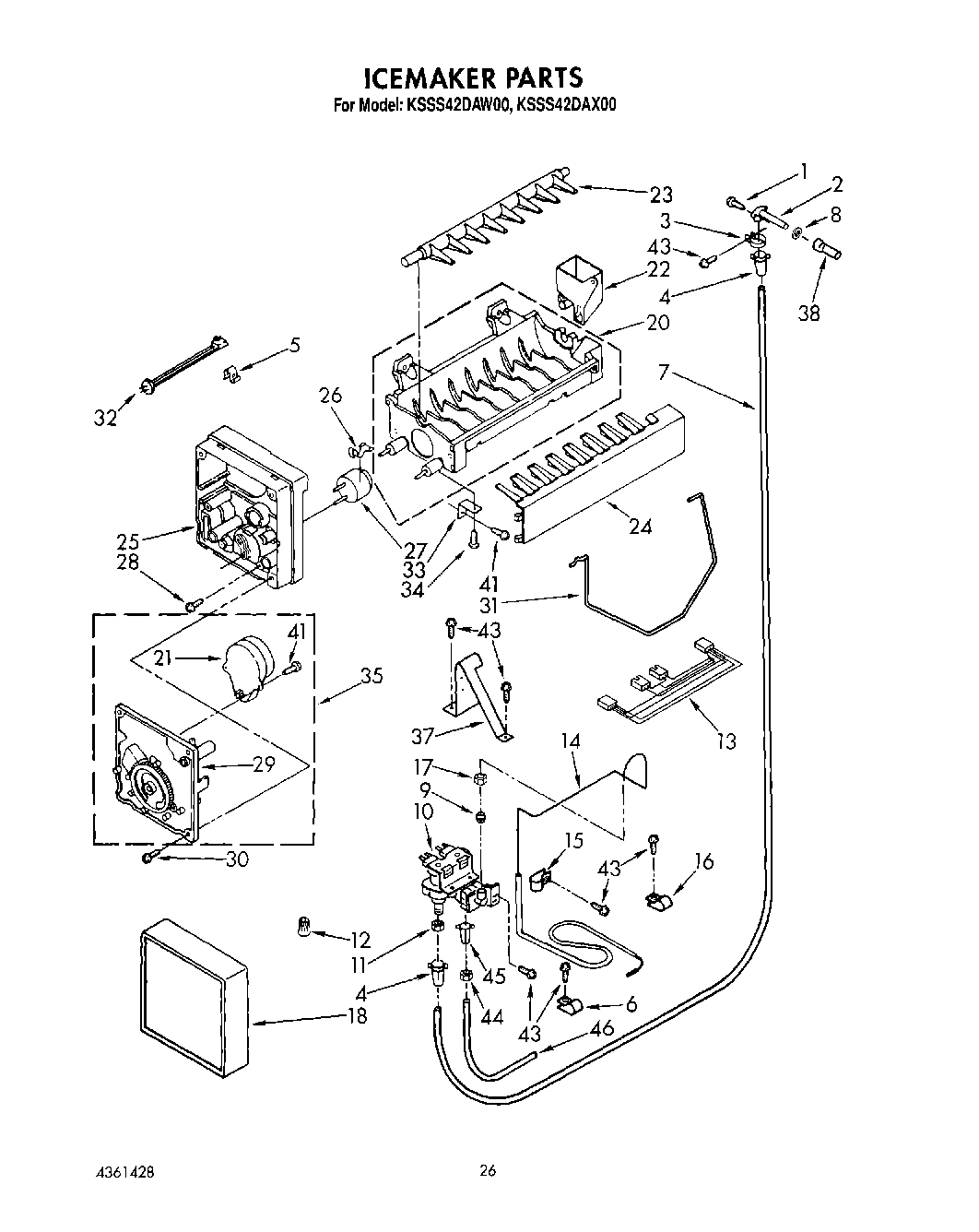

KSSS42DAW00 18 – ICEMAKER, LIT/OPTIONAL

KSSS42DAW00 18 – ICEMAKER, LIT/OPTIONAL

Written by

in

KSSS42DAW00 18 – ICEMAKER, LIT/OPTIONAL

Products

Position	Product
	Service & Wiring Sheet
	Use & Care Guide
	Installation Instructions
	Parts List
	Energy Label
	Modular Icemaker Service Sheet
2	Fitting, Water Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	Wire Clip
7	Tube, Water (To Ice Maker)
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP487627 Whirlpool Refrigerator Sleeve
10	W10853654 Whirlpool Water Inlet Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Wire Connector
13	Water Valve, Harness
14	Copper, Water Line
15	489348 Whirlpool Refrigerator Tube Clamp
16	Clamp, Tube (2)
17	WP245183 Whirlpool Nut
18	Cover
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	Harness, Wiring
33	WP2256087 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
37	Water Valve Mounting Bracket
38	Water Inlet Tube
41	489136 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
44	Nut, Compression
45	Insert, Tube
46	Water Tube (Inlet)
100	Top Grille Trim Kit (8“)
100	Front Panel Kit (Black)
100	Top Grille Trim Kit (7-1/2“)
100	Black Acrylic Static Cleaner
100	Stainless Steel
100	Front Panel Kit (Almond)
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
100	Front Panel Kit (White)
