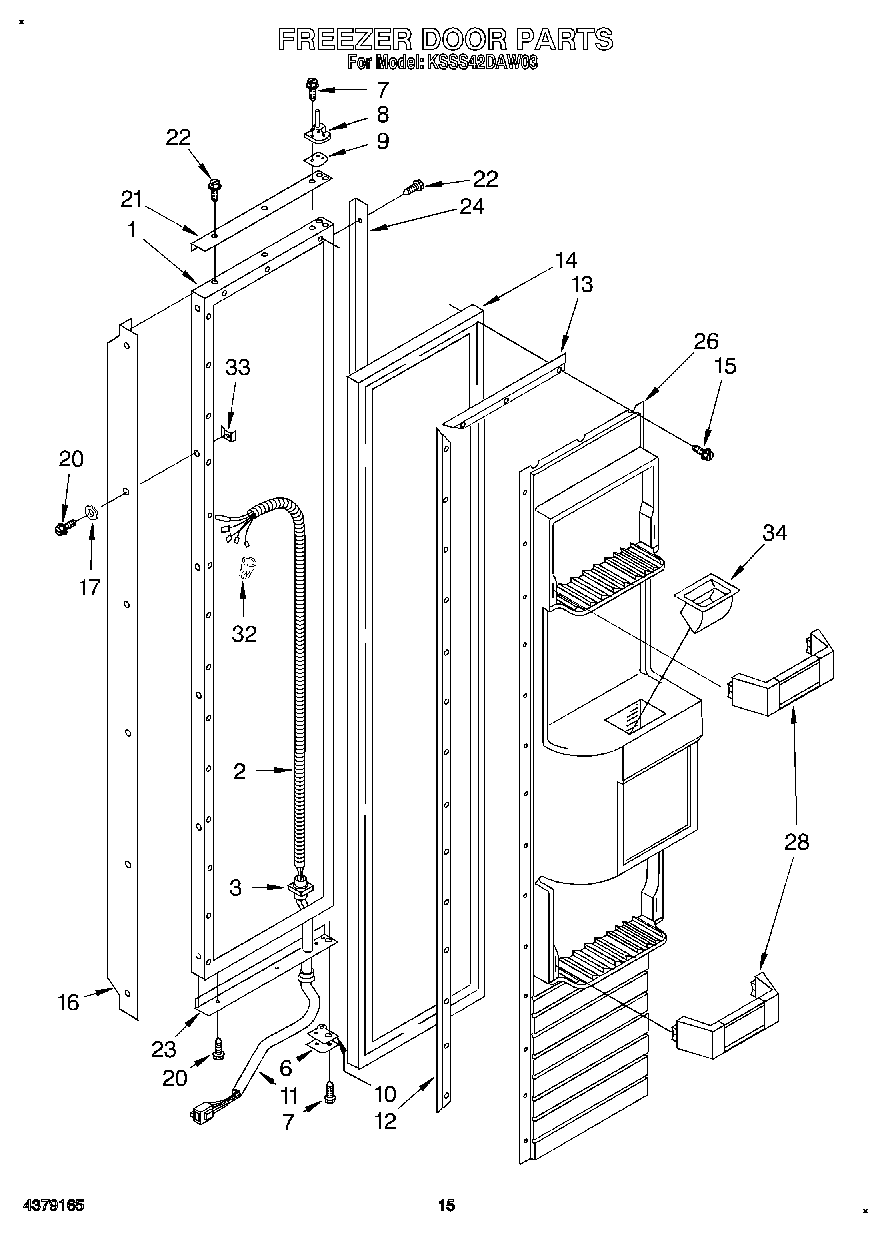

KSSS42DAW03 12 – FREEZER DOOR

KSSS42DAW03 12 – FREEZER DOOR

Written by

in

KSSS42DAW03 12 – FREEZER DOOR

Products

PositionProduct
1Exterior Door Panel, Freezer (Includes Insulation)
2Tube, Wiring
3Retainer, Tube
6Hinge, Bottom
7W11474472 Whirlpool Screw
8Hinge, Top
9Spacer, Top
10Spacer, Bottom
11Wiring Harness, Freezer Door
12Gasket Retainer, Side (2)
13Gasket Retainer, Top & Bottom
142188318A Whirlpool Refrigerator Door Gasket
15WP489069 Whirlpool Compactor Screw
16Handle, Door
17Washer
20Screw (White)
21Trim (Top)
22Screw
23Trim (Bottom)
24Trim (Side)
26Panel, Interior Door
28WP2003128 Whirlpool Shelf Bin
32Wire Connector
33WP939101 Whirlpool Refrigerator Plate
34Ice Chute
