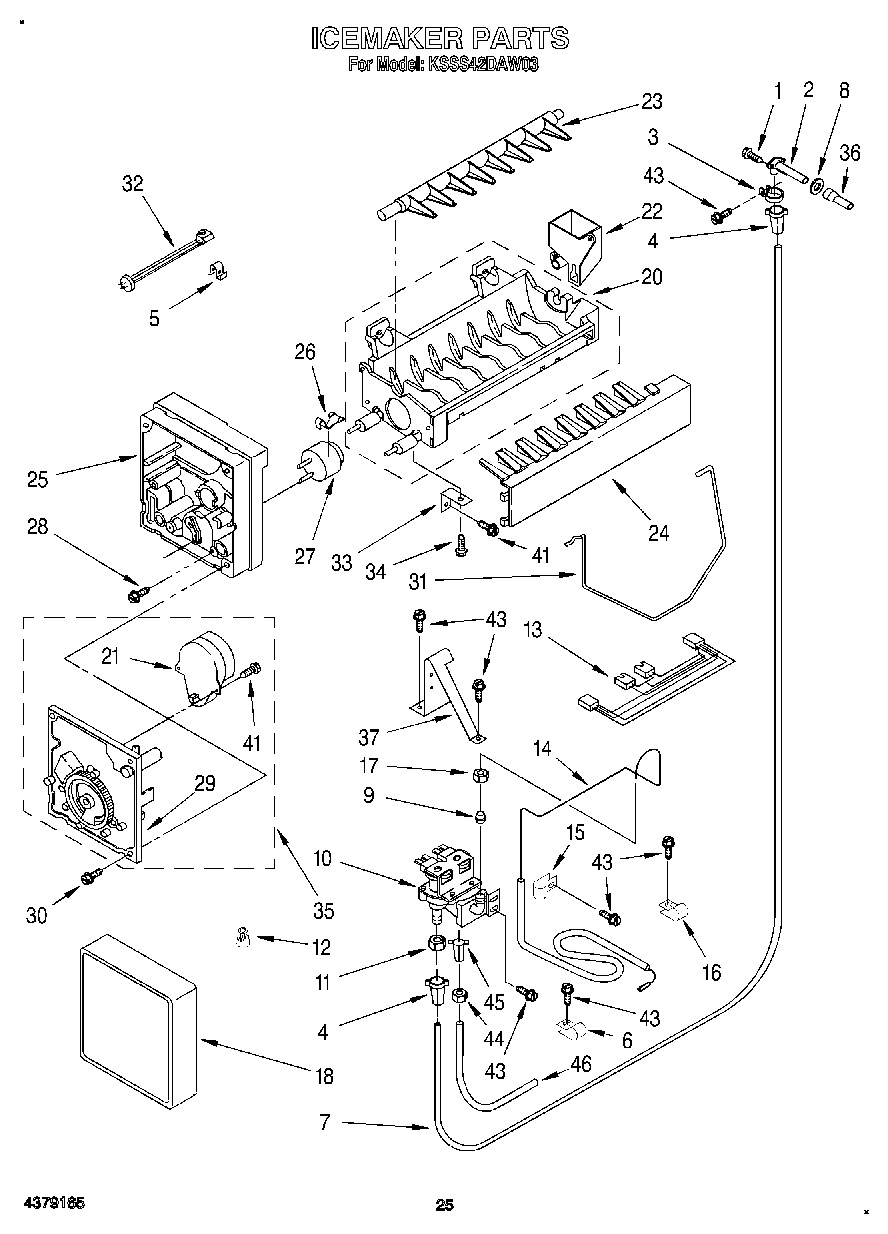

KSSS42DAW03 17 – ICEMAKER, LIT/OPTIONALadmin2025-04-26T12:10:21+00:00KSSS42DAW03 17 – ICEMAKER, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Service & Wiring Sheet |
| Modular Icemaker Service Sheet |
| Use & Care Guide |
| Installation Instructions |
| Energy Label |
| 2 | Fitting, Water Tube |
| 3 | WP488878 Whirlpool Refrigerator Tube Clamp |
| 4 | 4387491 Whirlpool Refrigerator Insert |
| 5 | WP628379 Whirlpool Refrigerator Clip |
| 6 | Wire Clip |
| 7 | Tube, Water (To Ice Maker) |
| 8 | WP1106508 Whirlpool Refrigerator Gasket |
| 9 | WP487627 Whirlpool Refrigerator Sleeve |
| 10 | W10853654 Whirlpool Water Inlet Valve |
| 11 | WP627018 Whirlpool Refrigerator Nut |
| 12 | Wire Connector |
| 13 | Water Valve, Harness |
| 14 | Copper, Water Line |
| 15 | 489348 Whirlpool Refrigerator Tube Clamp |
| 16 | Clamp, Tube (2) |
| 17 | WP245183 Whirlpool Nut |
| 18 | Cover |
| 20 | WP542638 Whirlpool Refrigerator Grease |
| 20 | WPW10190929 Whirlpool Refrigerator Ice Maker Mold |
| 21 | W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly |
| 22 | WP628356 Whirlpool Refrigerator Fill Cup |
| 23 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 24 | WP2182124 Whirlpool Refrigerator Stripper Arm |
| 25 | WP2195914 Whirlpool Refrigerator Ice Maker Housing |
| 26 | WP2315522 Whirlpool Refrigerator Clip |
| 27 | WP627985 Whirlpool Icemaker Cycling Thermostat |
| 27 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 28 | 8533917 Whirlpool Refrigerator Screw |
| 30 | WP681249 Whirlpool Screw Assembly |
| 31 | W11342242 Whirlpool Refrigerator Ice Level Arm |
| 32 | Harness, Wiring |
| 33 | WP2256087 Whirlpool Refrigerator Bracket |
| 34 | Screw, 8-32 x 27/64 |
| 36 | Water Inlet Tube |
| 37 | Water Valve Mounting Bracket |
| 41 | 489136 Whirlpool Refrigerator Screw |
| 43 | W11624204 Whirlpool Screw |
| 44 | Nut, Compression |
| 45 | Insert, Tube |
| 46 | Water Tube (Inlet) |
| 100 | 4317943 Whirlpool Refrigerator Ice Maker Assembly |
| 100 | Black Acrylic Static Cleaner |
| 100 | Front Panel Kit (Black) |
| 100 | Front Panel Kit (Almond) |
| 100 | Front Panel Kit (Stainless Steel) |
| 100 | Front Panel Kit (White) |
