KSSS42DAX00 09 – FREEZER CONTROL PANEL

KSSS42DAX00 09 – FREEZER CONTROL PANEL

Written by

in

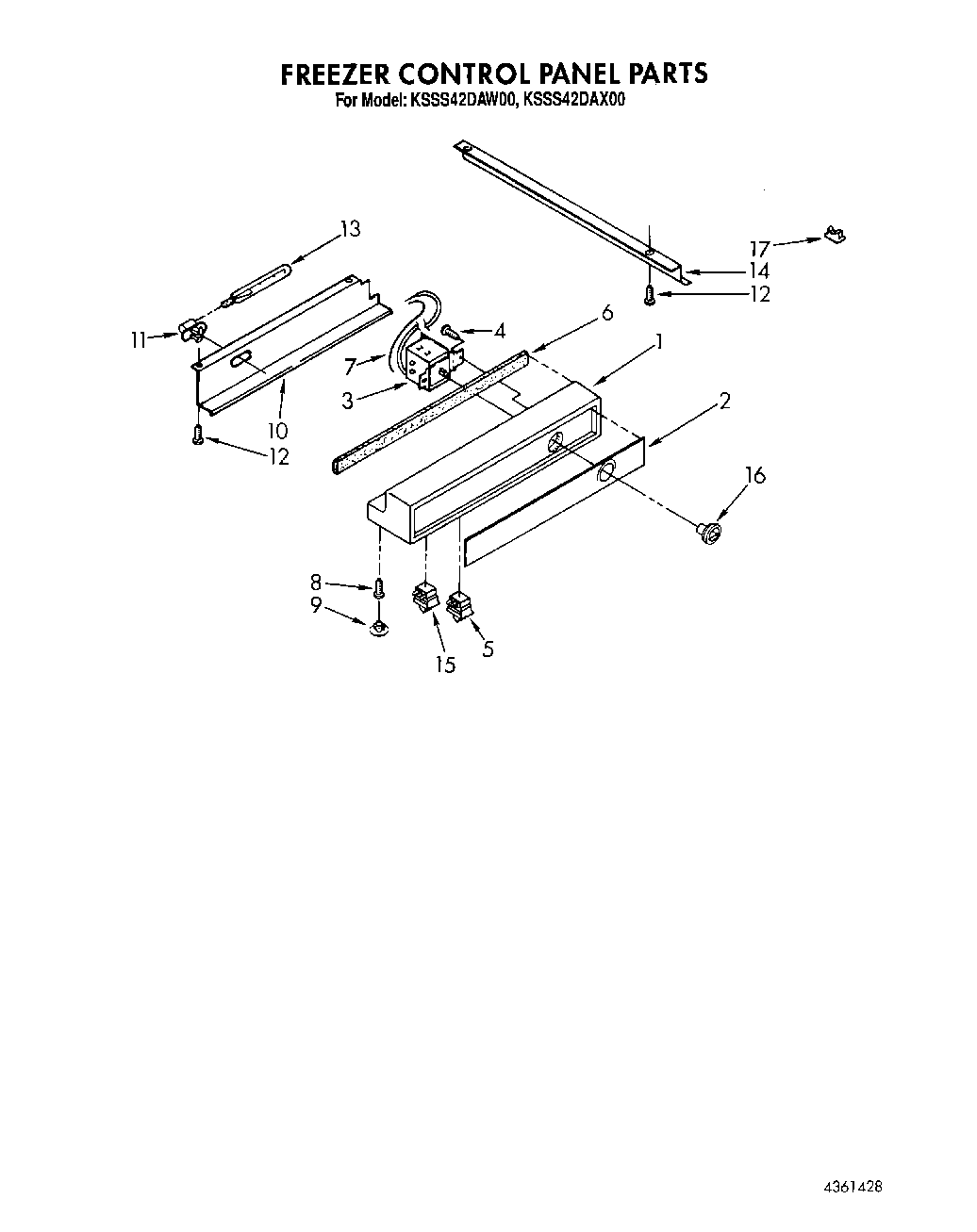

KSSS42DAX00 09 – FREEZER CONTROL PANEL

Products

PositionProduct
1Control Panel
2Inlay, Control Panel
3WP1113466 Whirlpool Refrigerator Thermostat
4Screw, 8-32 x 3/8
5WP4387911 Whirlpool Refrigerator Switch
6Seal, Control Panel
7Thermostat Barrier
8Screw (3)
9Hole Plug (3)
10Shield, Control Panel
11Socket, Light
12W11624204 Whirlpool Screw
13WP548049 Whirlpool Refrigerator Light Bulb
14Channel, Wiring
15W11384469 Whirlpool Door Switch
16Knob, Thermostat
17CLIP, WIRING
