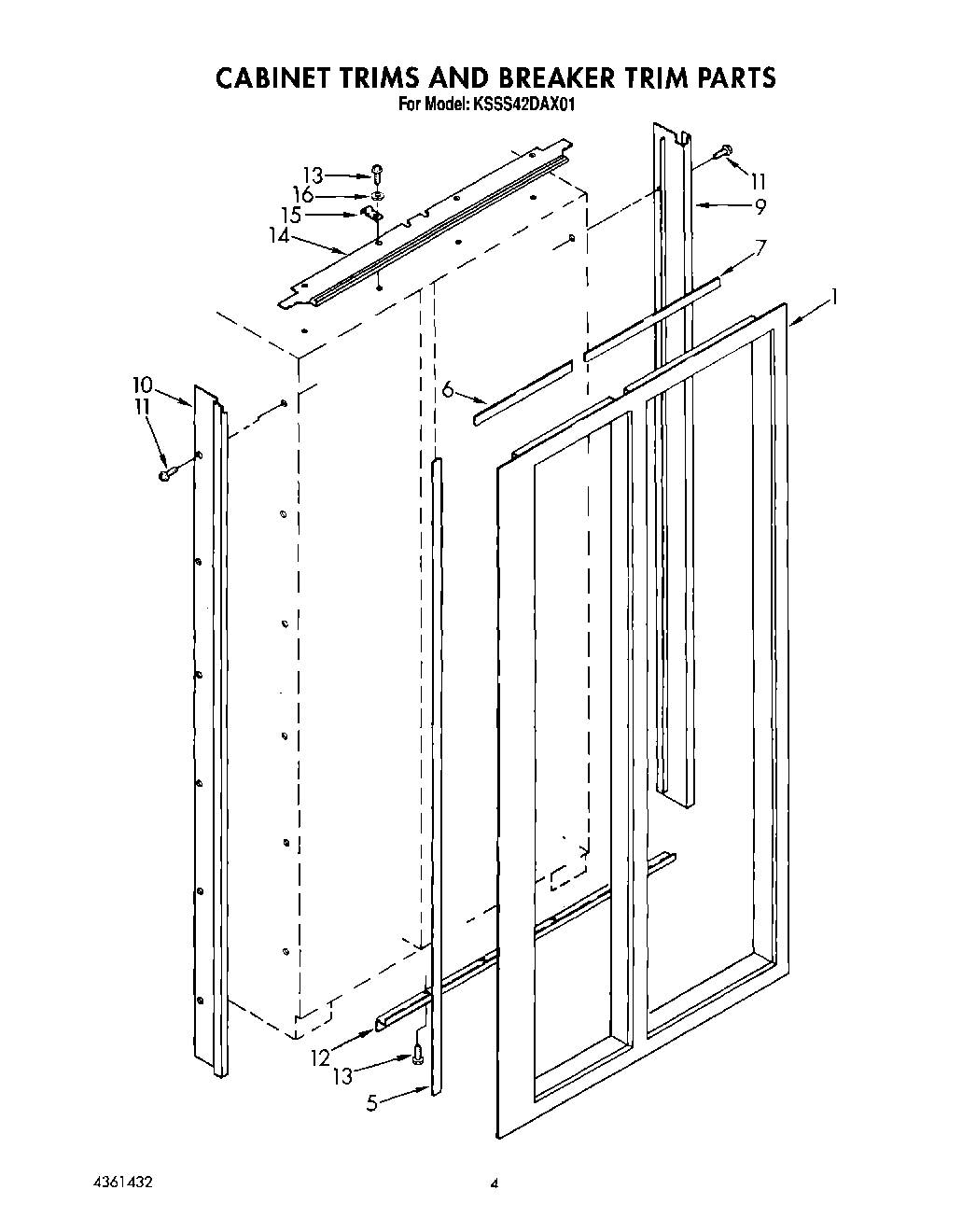

KSSS42DAX01 02 – CABINET TRIMS AND BREAKER TRIM

Written by

Products

Position	Product
1	Breaker Trim & Retainer Assembly
5	Magnet, Side (4)
6	Magnet, Freezer (2)
7	Magnet, Refrigerator (2)
9	Cabinet, Trim R.S
10	Cabinet, Trim L.S
11	Screw
12	Trim (Bottom)
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Cabinet, Trim Top
15	Retainer, Unit Base (2)
16	W10903204 Whirlpool Refrigerator Washer
