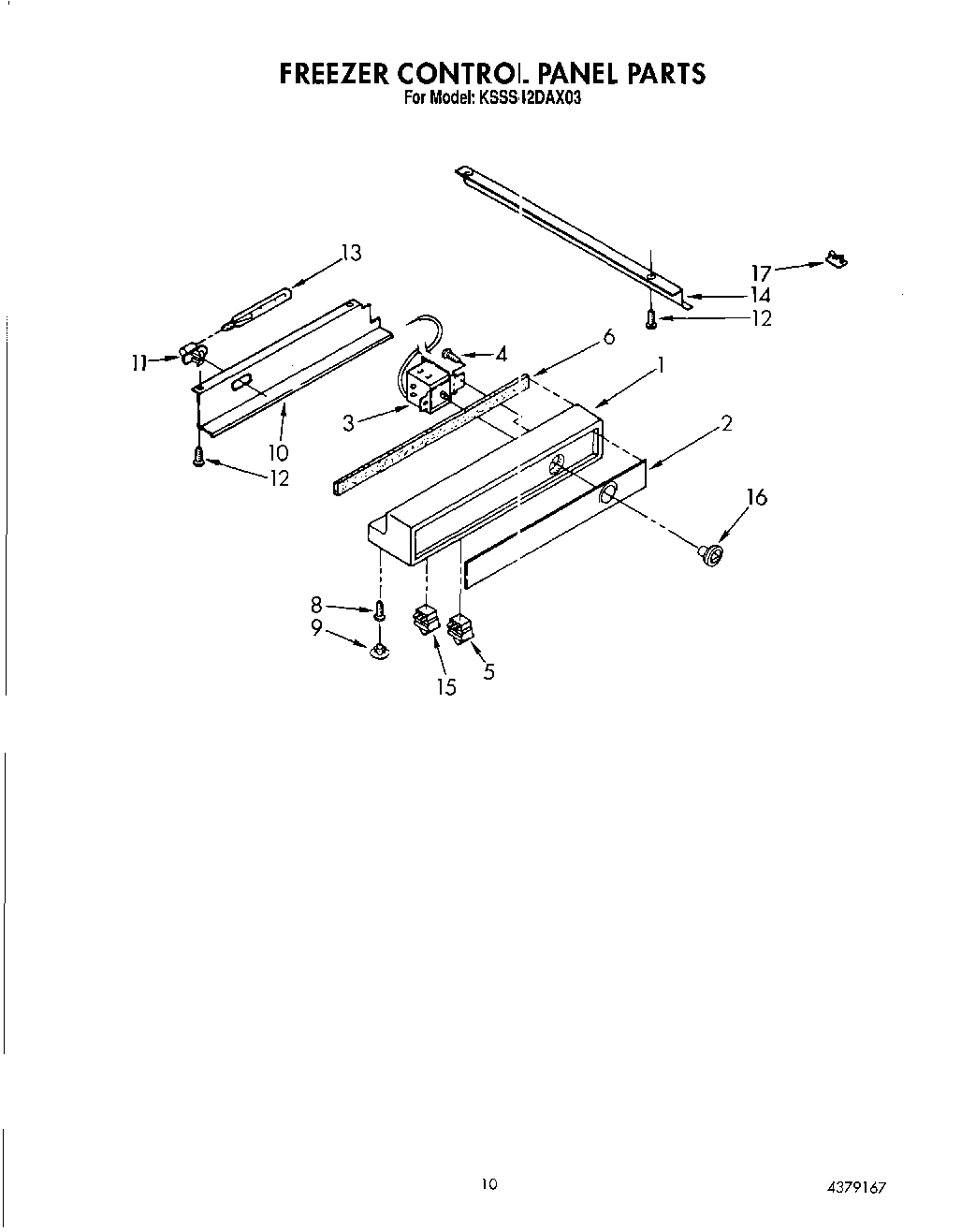

KSSS42DAX03 08 – FREEZER CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Inlay, Control Panel
3	WP1113466 Whirlpool Refrigerator Thermostat
4	Screw, 8-32 x 3/8
5	WP4387911 Whirlpool Refrigerator Switch
6	Seal, Control Panel
8	Screw (3)
9	Hole Plug (3)
10	Shield, Control Panel
11	Socket, Light
12	W11624204 Whirlpool Screw
13	WP548049 Whirlpool Refrigerator Light Bulb
14	Channel, Wiring
15	W11384469 Whirlpool Door Switch
16	Knob, Thermostat
17	CLIP, WIRING
