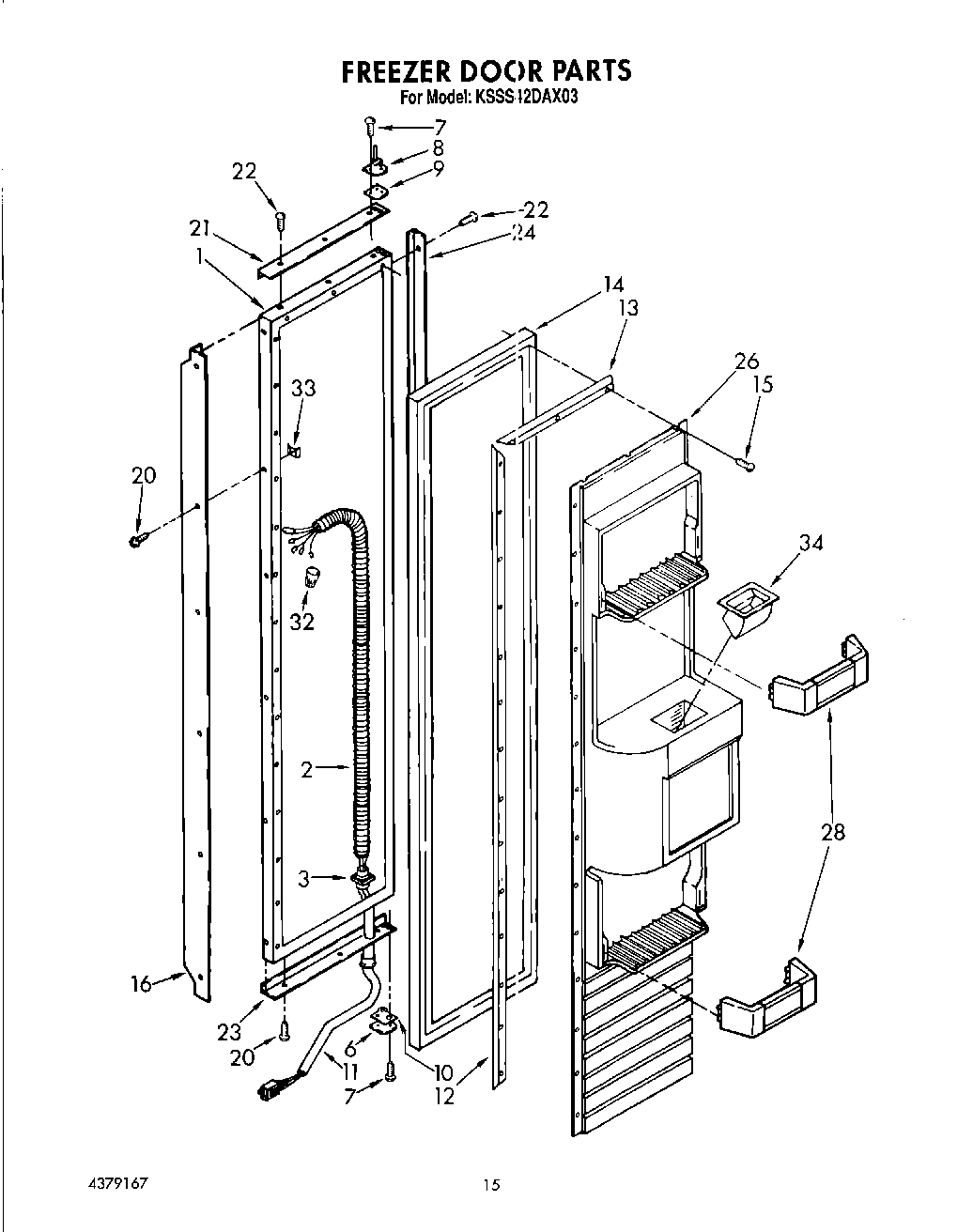

KSSS42DAX03 12 – FREEZER DOOR

Products

Position	Product
1	Exterior Door Panel, Freezer (Includes Insulation)
2	Tube, Wiring
3	Retainer, Tube
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer, Top
10	Spacer, Bottom
11	Wiring Harness, Freezer Door
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188318A Whirlpool Refrigerator Door Gasket
15	WP489069 Whirlpool Compactor Screw
16	Handle, Door
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim (Top)
22	Screw, 6-32 x 1/2
23	Trim (Bottom)
24	Trim (Side)
26	Panel, Interior Door
28	WP2003128 Whirlpool Shelf Bin
32	Wire Connector
33	WP939101 Whirlpool Refrigerator Plate
34	Ice Chute
