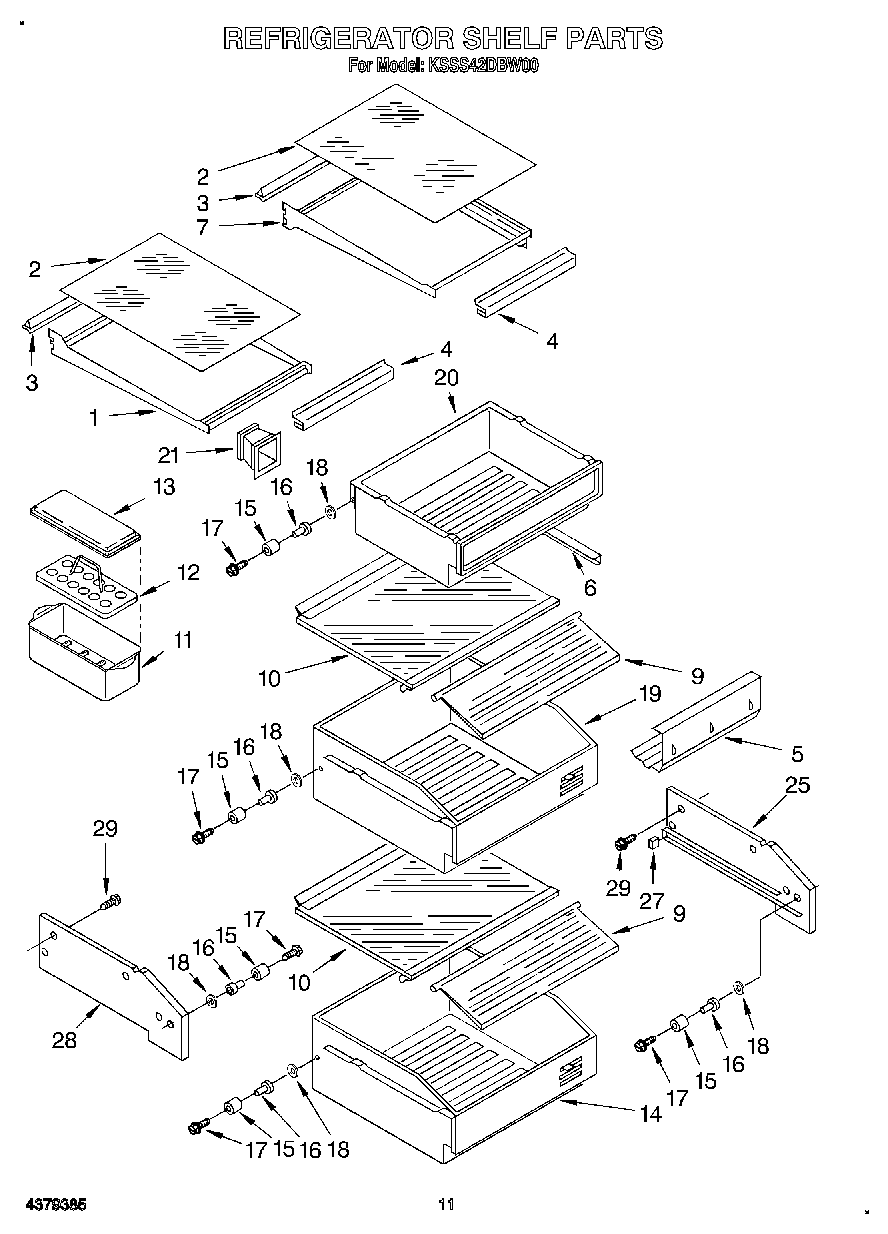

KSSS42DBW00 09 – REFRIGERATOR SHELF

KSSS42DBW00 09 – REFRIGERATOR SHELF

Written by

in

KSSS42DBW00 09 – REFRIGERATOR SHELF

Products

PositionProduct
1Frame, Shelf
2Glass, Shelf
3Reflector, Shelf
4Gasket, Glass (2)
5Wine & Egg Rack
6Retainer, Glass
7Frame Assembly
9WP1113894 Whirlpool Refrigerator Cover
10Glass, Crisper
11W10136387A Whirlpool Refrigerator Egg Container
12WP2177817 Whirlpool Refrigerator Egg Container
13Cover
14Pan, Crisper
15Roller
16Eyelet, Roller
17WPW10272364 Whirlpool Refrigerator Screw
18Washer
19Utility Pan
20Meat Pan
21Meat Pan, Connector
25Crisper Spacer, Right Side (2)
27Roller Stop
28Crisper Spacer, Left Side (2)
29W11624204 Whirlpool Screw
