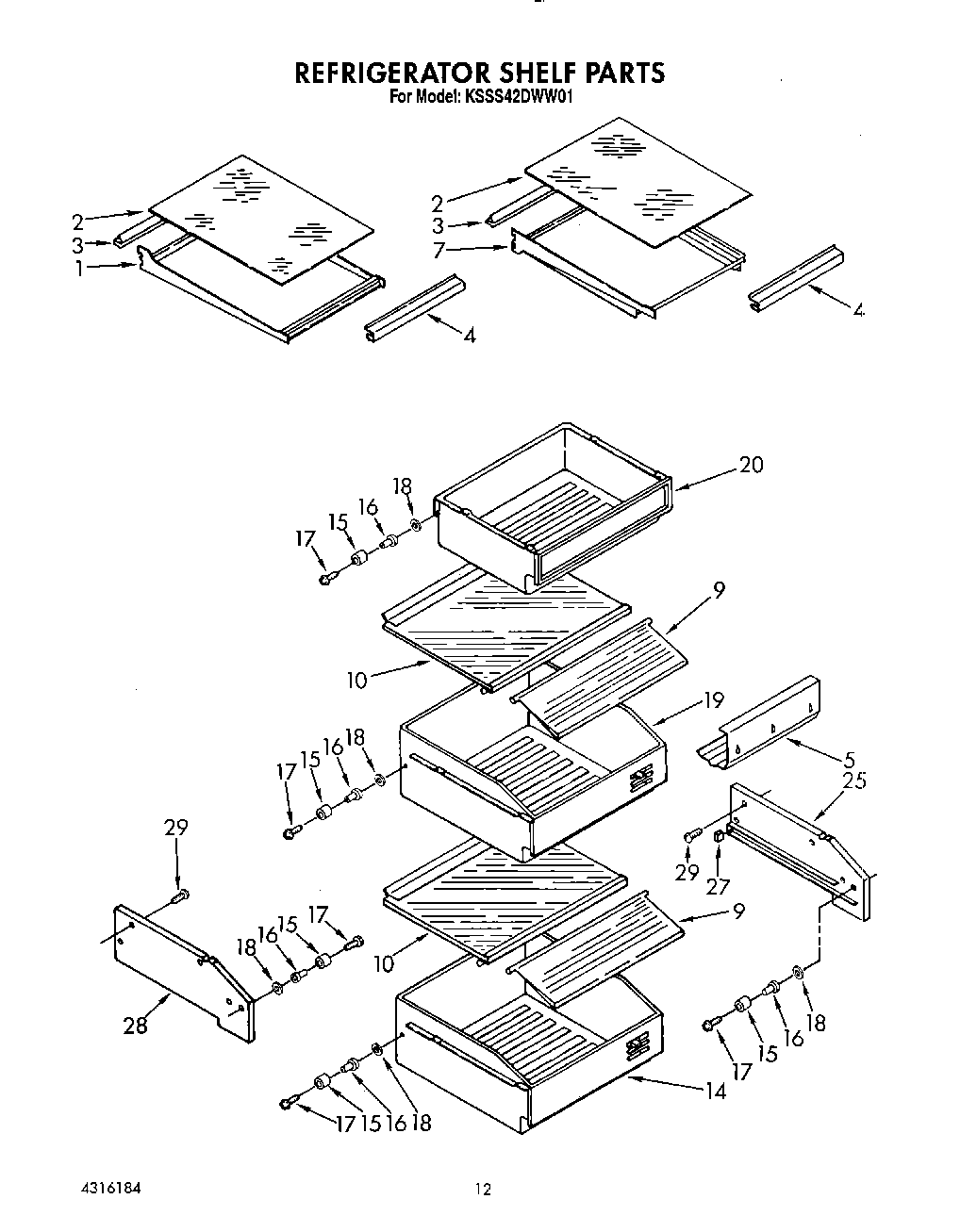

KSSS42DWW01 09 – REFRIGERATOR SHELF

Products

Position	Product
1	Frame, Shelf
2	Glass, Shelf
3	Reflector, Shelf
4	Gasket, Glass (2)
5	Wine & Egg Rack
7	Frame Assembly
9	WP1113894 Whirlpool Refrigerator Cover
10	Glass, Crisper
14	Pan, Crisper
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	Washer
19	Utility Pan
20	Meat Pan
25	Crisper Spacer, Right Side (2)
27	Roller Stop
28	Crisper Spacer, Left Side (2)
29	W11624204 Whirlpool Screw
